AG25
Battery change English
AG25 · Date 19.07.2022 · Art. No. 87450 · Mod. status 157/22
38
Controls
1
Key = Inching mode 2 "CCW"
direction
2
Key = Inching mode 2 "CW"
direction
3
DIP switch
1
2
3

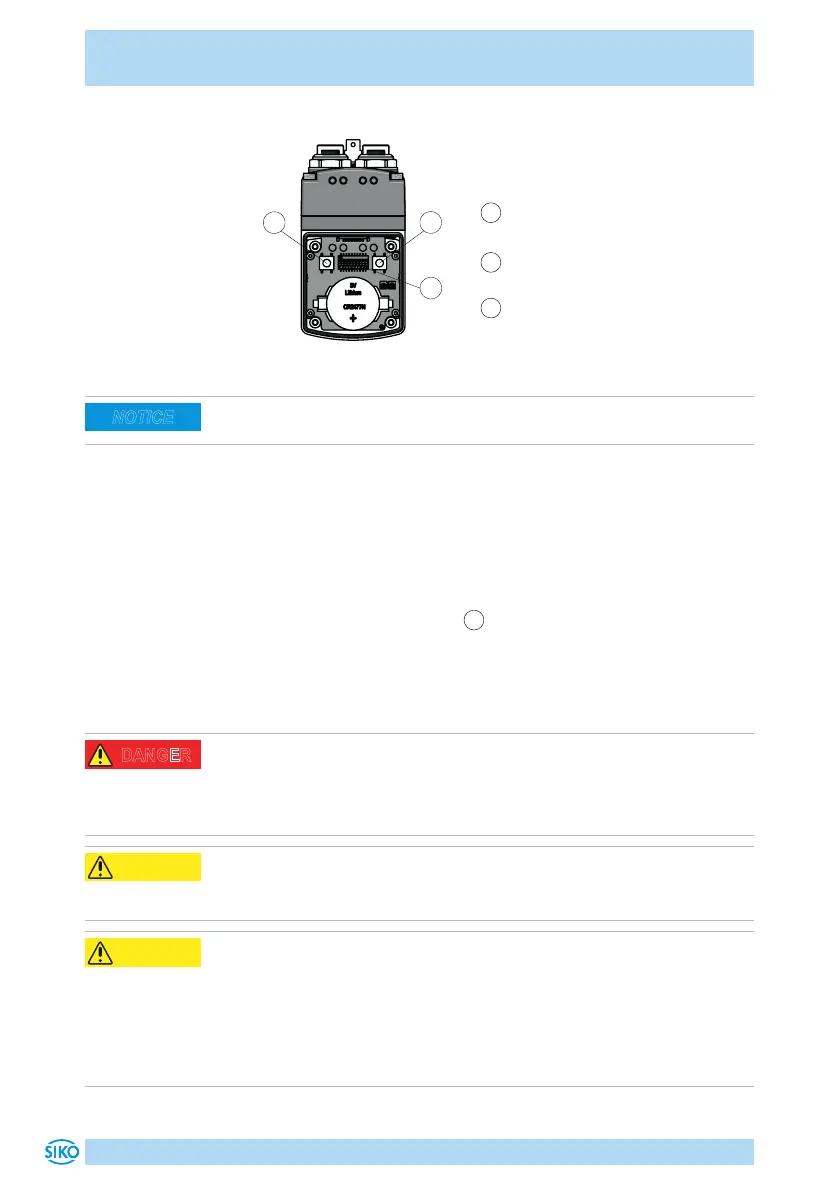

Fig. 13: Controls
Manual setup mode is only available when no process data is exchanged.
Control keys
You can start manual setup mode (corresponds to inching mode 2) by
means of the control keys. This enables actuator traveling without a super-
ordinate control.
DIP-switch
For the function of the DIP switch
3
refer to the user manual.
6 Battery change
Inflammable, danger of explosion and burns
` Do not recharge the battery nor expose it to temperatures above
85°C.
` Dispose of used batteries properly.
Danger of short circuit
` Do not insert sharp or metallic objects into the inside of the housing
in case of remote battery compartment.
Loss of data
With missing supply voltage and empty or missing battery, calibration of
the drive unit will be lost.
` It is mandatory to change the battery with supply voltage switched on.
` Repeated calibration travel in case of data loss (refer to the see user
manual for the procedure).
NOTICE
DANGER
CAUTION
CAUTION
