Silicon Graphics Octane III User Manual

Rear I/O Connectors
007-5633-001 23
VGA Video Interface
Every Octane III cluster server comes with a single 15-pin VGA video connector, see Figure 3-3
for an example and Table 3-2. The VGA interface is connected directly to the system head node.

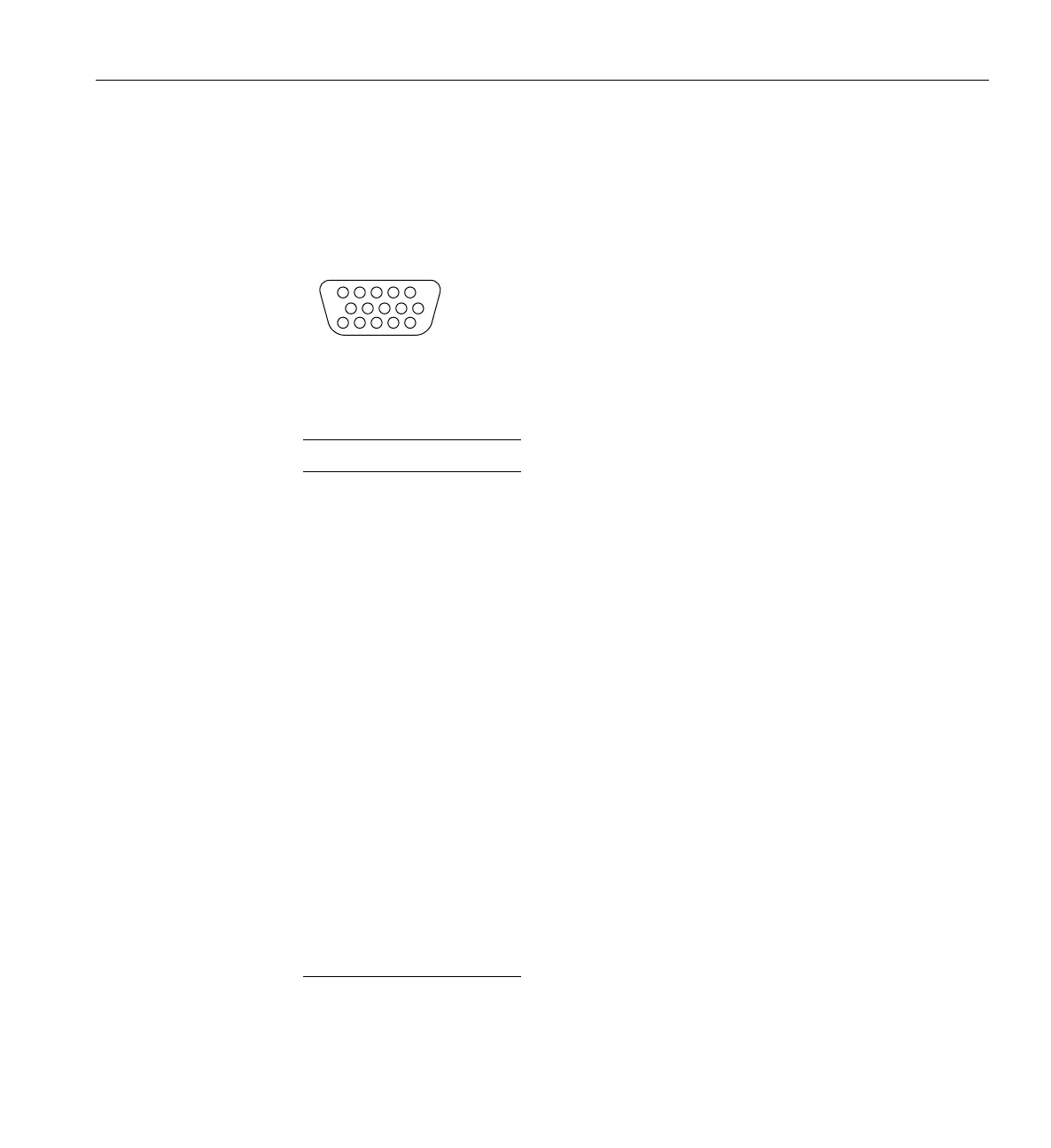

Figure 3-3 Octane III VGA Video Connector
Table 3-2 VGA Pin Functions
Pin Number Function
1Red
2Green
3Blue
4N/C
5 Ground
6 Ground
7 Ground
8 Ground
9 Ground
10 Ground
11 N/C
12 DDCDAT
13 HSYNC
14 VSYNC
15 DDCCLK
11
61
0
15
15
