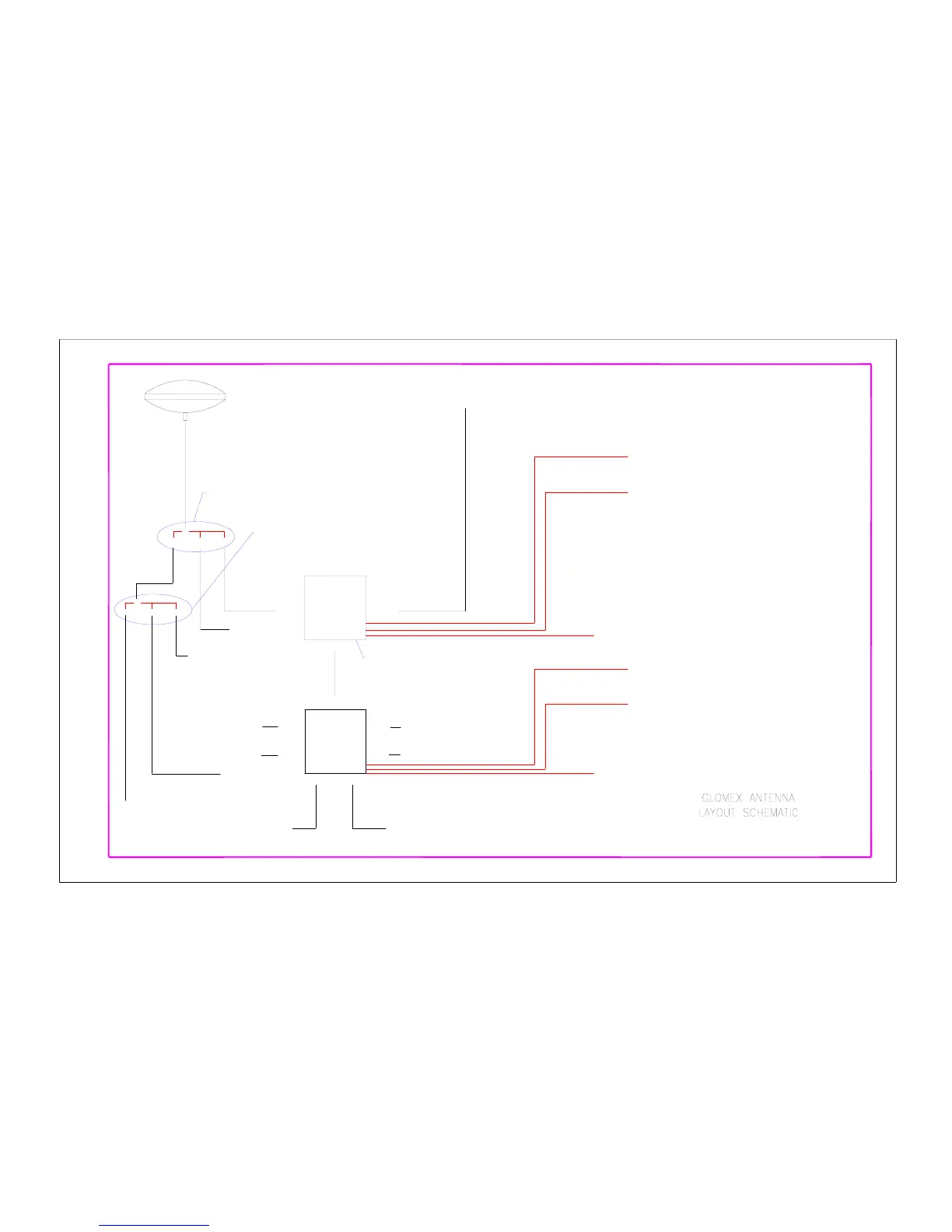

GLOMEX ANTENNA
IN
OUTOUT
BRIDGE STEREO
RECIEVER
V9125/ 00 w 50023/98 SR12
A/B SWITCH AMPLIFIER
ANT IN SHORE IN
ANT OUT
SALON TELEVISION
COAX OUTLET
DOCKSIDE CABLE INLET
3 TO 1 SPLITTER
TO BE LOCATED ON CABINTOP FOR BRIDGE REMOVAL
TO BE LOCATED INSIDE OF
CABINET NEXT TO AC/DC PANEL
NOTE: ALL COAX TO RG-6 CABLE
( RED )WIRED TO FUSE BLOCK BEHIND AC/DC PANEL
( BLACK )WIRED TO DC GROUND BUSS BEHIND AC/DC PANEL
DO NOT USE WHITE WIRE ( 24 VOLT ONLY )
OUT 4 OUT 6
OUT 1
INPUT
OUT 3 OUT 5
OUT 2
LINE AMPLFIER 50022/00 TO
BE LOCATED BEHIND AC/DC PANEL
MASTERSTATEROOM
COAX OUTLET
V/BERTH
COAX OUTLET
SPARE
( RED )WIRED TO FUSE BLOCK BEHIND AC/DC PANEL
( BLACK )WIRED TO DC GROUND BUSS BEHIND AC/DC PANEL
DO NOT USE WHITE WIRE ( 24 VOLT ONLY )
OUT
SALON STEREO
RECIEVER
SPARE
SPARE
NOTE 1 : 12VDC STEREO'S REQUIRE A RCA to RF ADAPTER AND A UNION
BLOCK (RADIO SHACK 15-909) TO CONNECT TO THE ANTENNA SYSTEM
NOTE 2 : 110VAC STEREO'S REQUIRE A (RADIO SHACK 278 - 218 PUSH ON ADAPTER)
(SEE NOTE 1)
(SEE NOTE 2)
V/B STEREO
RECIEVER
(SEE NOTE 1)
OPTIONAL
10" DIAMETER
GLOMEX V9124 & V9101W ARE REQUIRED TO MOUNT ANTENNA TO BOAT
ANTENNA TO BE MOUNTED OFF CENTERLINE ON ARCH
IN
OUTOUT
OUT
SALON STEREO
RECIEVER
(SEE NOTE 2)
3 TO 1 SPLITTER OPTIONAL
TO BE LOCATED BEHIND AC/DC PANEL
ONLY USED WITH MASTER STATEROOM STEREO OPTION
PRINTED 2-6-03
