SYSTEM OPERATIONS-21

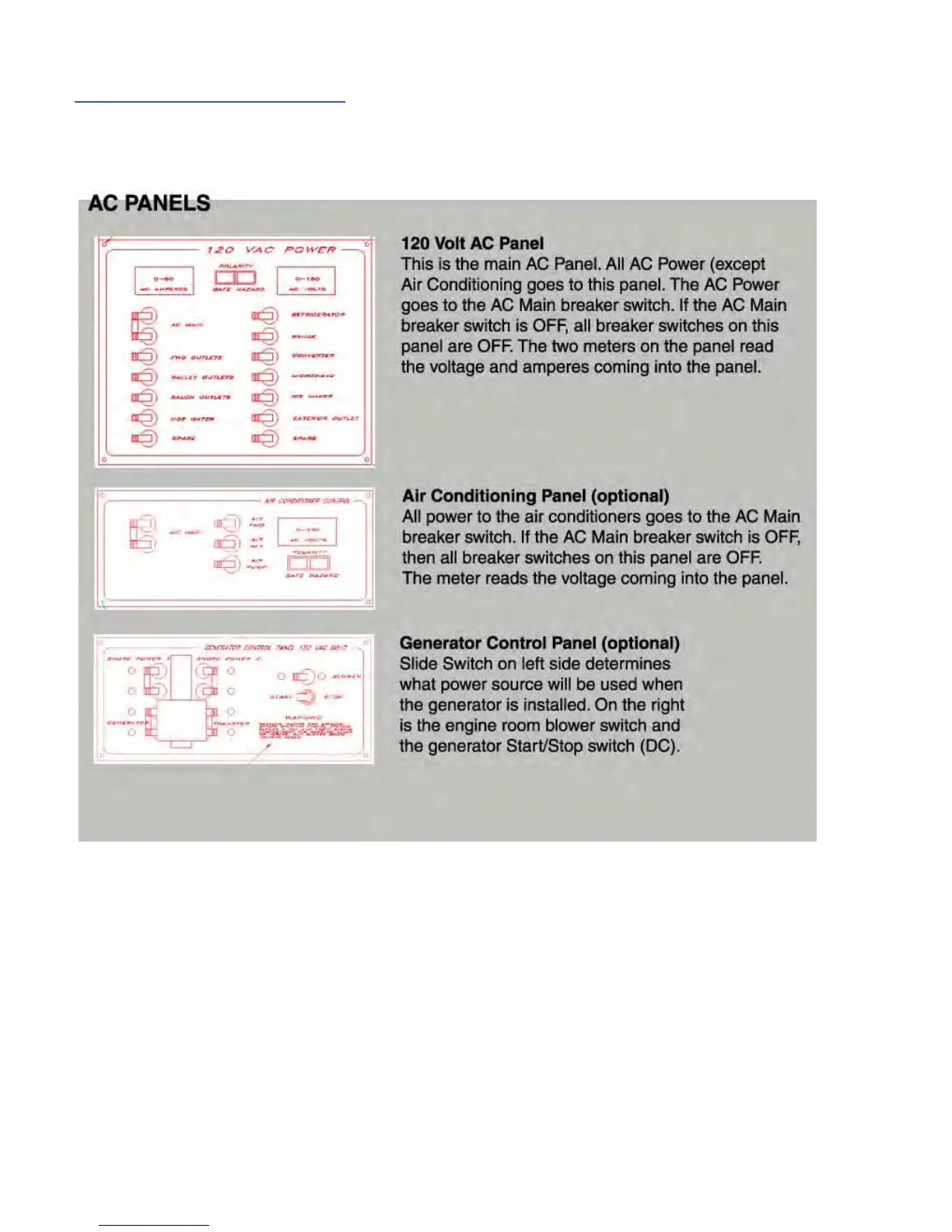

AC ELECTRICAL SYSTEM
The AC electrical system is a three-wire
grounded system powered by either the
generator (if so equipped) or shore power.
Remember, if the generator or the air con-
ditioning was not selected as an option,
there will be no panels.
Generator/Shore Power Slide Switch
The generator section of your AC/DC Pan-
el has a Slide Switch. This Slide allows
only one source of AC Current to enter
your AC Panels. This switch will allow the
source of AC Power to come from either
the Generator or the Shore Hook-Ups.
The Panel has four sets of breaker switch-
es. The four sets are: Generator, Transfer,
Shore Power 1, and Shore Power 2. Each
set of switches will be described below.
