m
CAUTION
– The height of the boiler is to be such that disas-
sembly and maintenance interventions are facil-
itated.

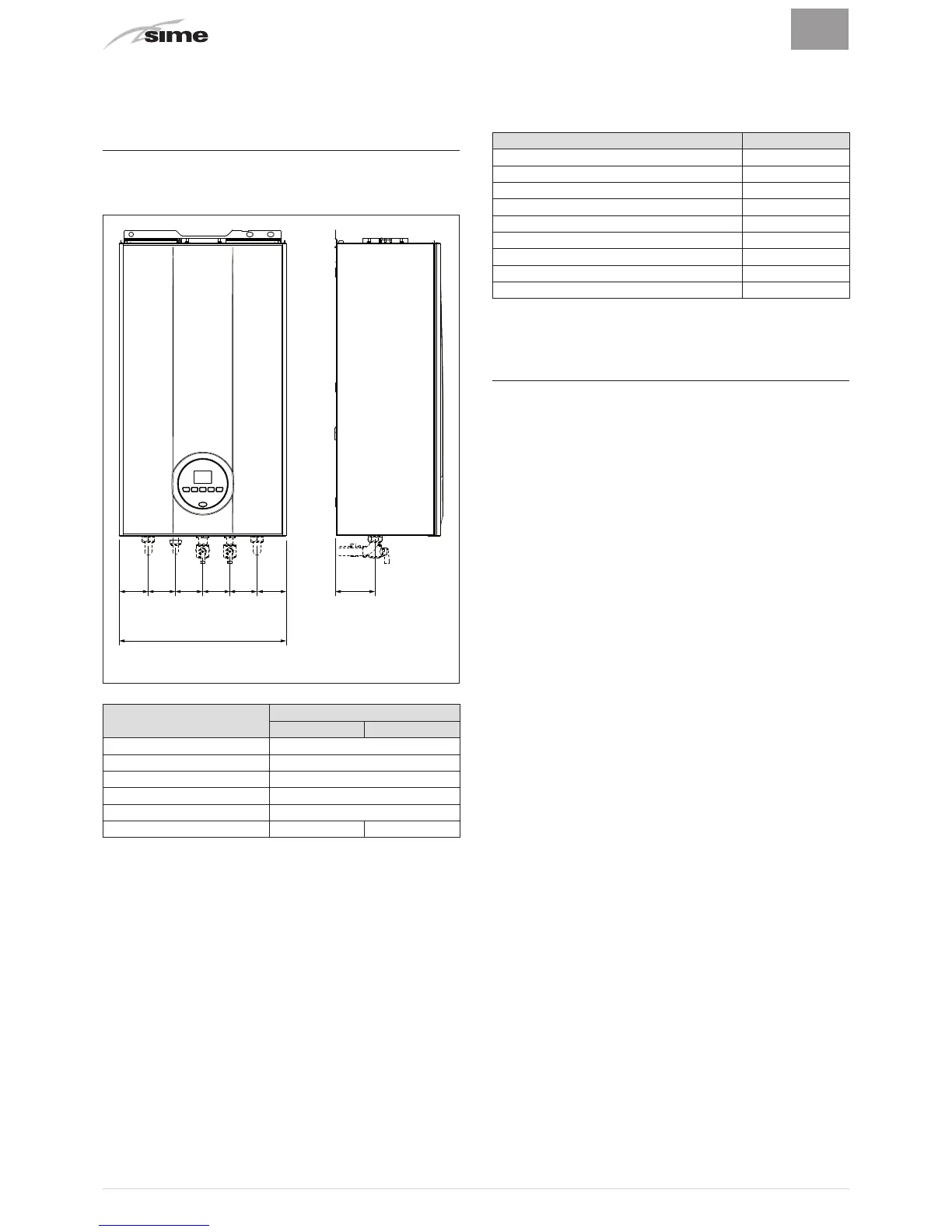

2.9 Plumbing connections
The plumbing connections have the following characteristics
and dimensions.
9565 65 65 65 ==
L
M U G E R
Fig. 12
Description
Brava Slim BF
25 30
M - System delivery Ø 3/4" G
R - System return Ø 3/4" G
U - Domestic hot water output Ø 1/2" G
E - Domestic hot water inlet Ø 1/2" G
G - Gas supply Ø 3/4" G
W (mm) 400 450
2.9.1 Plumbing accessories (optional)
To facilitate plumbing and gas connections to the systems, the
accessories as shown in the table below are available and are
to be ordered separately from the boiler.
DESCRIPTION CODE
Installation plate 8075441
Curve kit 8075418
Cocks kit 8091806
Wall mount replacement kit for other makers 8093900
Solar kit for instant combination boilers 8105101
Fitting protection Kit (25 kW) 8094530
Fitting protection Kit (30 kW) 8094531
Polyphosphate dosing kit 8101700
Dosing recharge kit 8101710
NB:
kit instructions are supplied with the accessory itself or
are to be found on the packaging.
2.10 Gas supply
Brava Slim BF
boilers leave the factory specifically prearranged
for G20 gas (methane) or G30/G31 (LPG). The G20 models
(methane) can be converted to function with G30/G31 (LPG)
using the "specific nozzle kit" (optional) provided by
Sime
on
request separately from the boiler.
Boiler connection to the gas mains must be carried out in full
compliance with installation Standards in force.
Before connecting the boiler to the gas mains, the user must
ensure that:
– the type of gas is correct for the appliance
– the pipes are clean
– the gas supply pipe is the same dimension as or greater
than that of the boiler fitting (G3/4") and with a load loss less
than or equal to that contemplated between the gas mains
and the boiler.
a
DANGER
Once installation has been completed, check that
the joints are air tight as indicated in the installation
Standards.
m
CAUTION
It is recommended that the gas line has a suitable
filter.
