Sime Brava Slim BF - Brava Slim 25 BF - Brava Slim 30 BF; Structure

55
EN
19
20
16
17
18
1
2
3
6
7
5
8
9 10
11
13
16
15
14
12
4

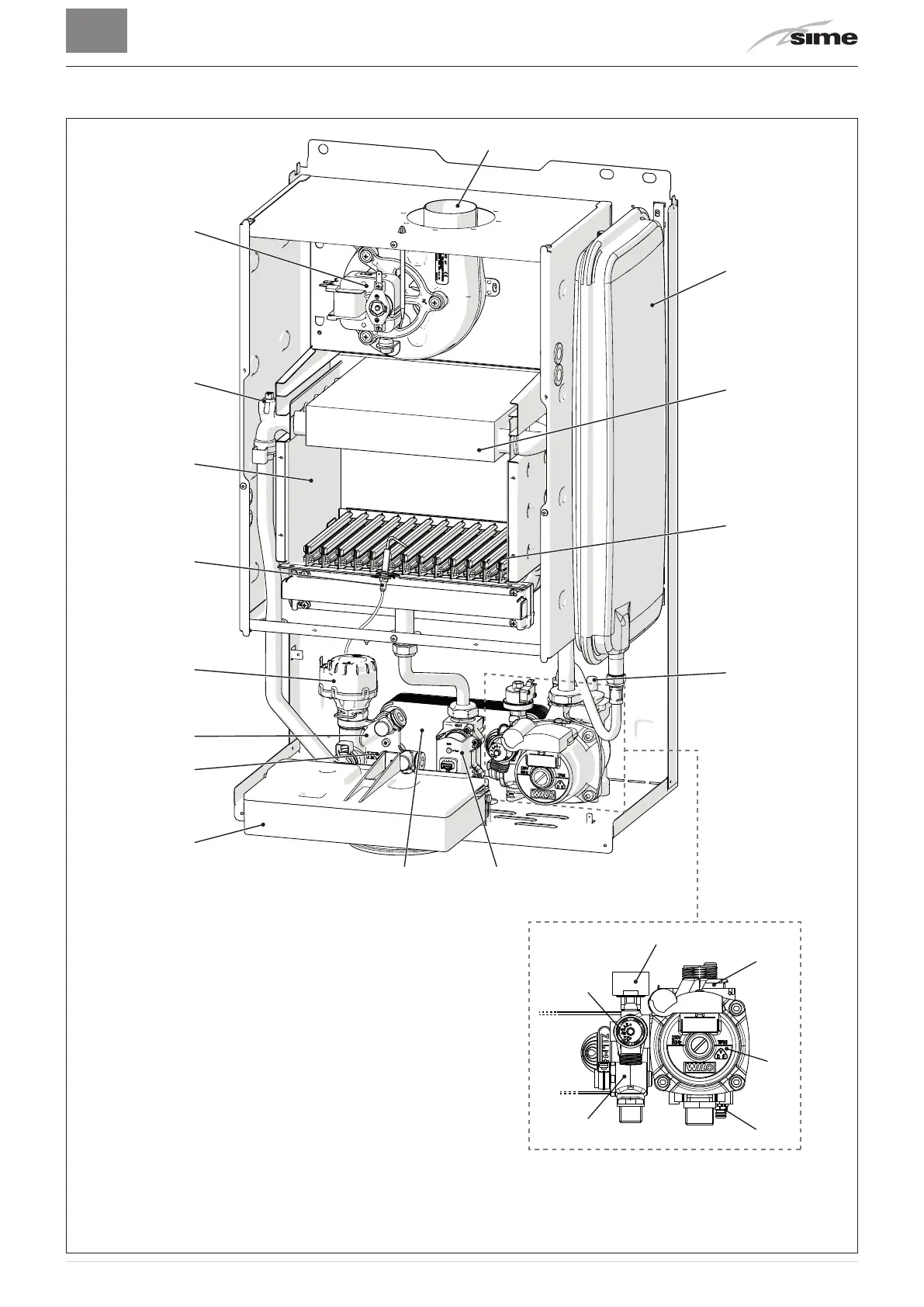

1 Fan
2 Dual sensor (thermal safety/delivery)
3 Combustion chamber
4 Ignition/detection electrode
5 Diverter valve
6 System filling unit
7 Domestic hot water sensor
8 Control panel
9 Secondary heat exchanger
10 Gas valve
11 Domestic water filter and flow regulator
12 System relief valve
13 Boiler drain
14 System pump
15 Water pressure transducer
16 Automatic bleed valve
17 Burner
18 Primary heat exchanger
19 Expansion vessel
20 Smoke outlet
Fig. 9
5.4 Structure
5.4.1 Brava Slim 25 BF - Brava Slim 30 BF
