6.11 Smoke outlet and combustion air inlet
Brava Slim BF
boilers must be equipped with appropriate smoke flue ducts and combustion air inlet ducts. These ducts are considered
an integral part of the boiler and are provided by
Sime
as an accessory kit, to be ordered separately from the appliance on the basis of the
type permitted and the system requirements.

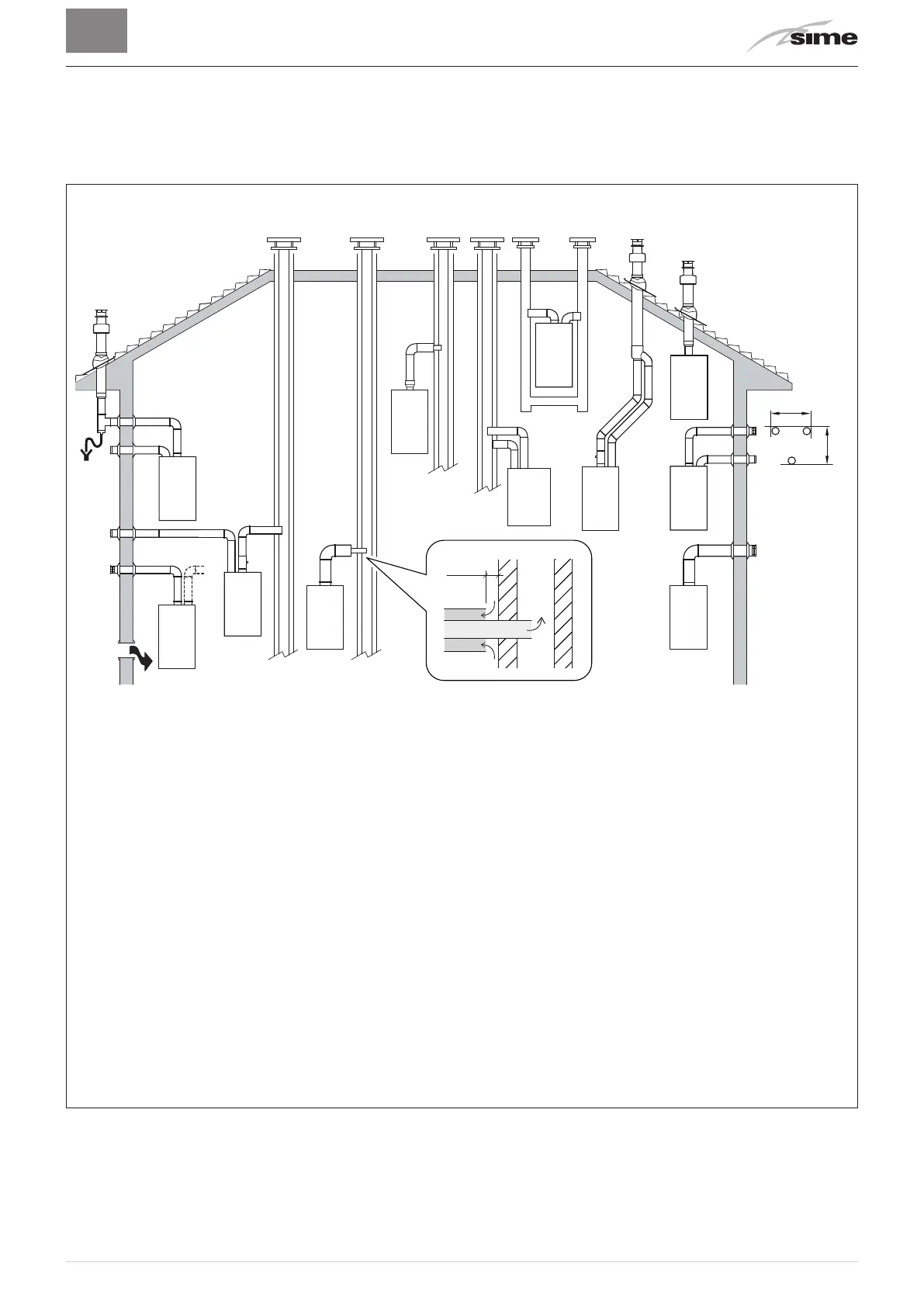

Permitted outlets
max 0,5 m
C32
C32X
C52
C52X
C82
C82X
C12
C12X
C12
C12X
B32P
C32
C32X
C42
C42X
C92
C42
C42X
5 cm
B22P
B52P
B22P-B52-B52P
Combustion air inlet into the atmosphere and smoke
outlet to open air.
NOTE:
opening for combustion air (6 cm
2
x kW).
B32P
Combustion air inlet into the atmosphere and smoke
outlet into single flue.
NOTE:
opening for combustion air (15 cm
2
x kW).
C12-C12X
Concentric wall smoke outlet The pipes can start from
the boiler but the outlets must be concentric or close
together (no more than 50 cm) to be subject to similar
wind conditions.
C32-C32X
Concentric roof outlet Outlet as C12X.
C42-C42X
Outlet and inlet in shared or separate flue pipes but sub
-
jected to similar wind conditions.
C52-C52X
Separat
e wall or roof inlet and outlet in different pres-
sure areas.
NOTE:
the inlet and outlet must never be positioned on
opposing walls.
C82-C82X
Outlet in single or shared flue or with inlet on wall.
C92
Separate outlet and inlet in shared flue pipe.
P:
smoke outlet system designed to operate with posi-
tive pressure.
X:
appliances and corresponding smoke outlet which
meet German air-tightness requirements.
Fig. 21
m
WARNINGS
– The smoke flue and the connection to the flue pipe must be in compliance with the national and local standards and legisla-
tion in force in the country where the appliance will be used.
–
The use of rigid ducts which are resistant to temperature, condensate, mechanical stress and are air-tight is compulsory.
– Outlet ducts which are not isolated are a risk of danger.
