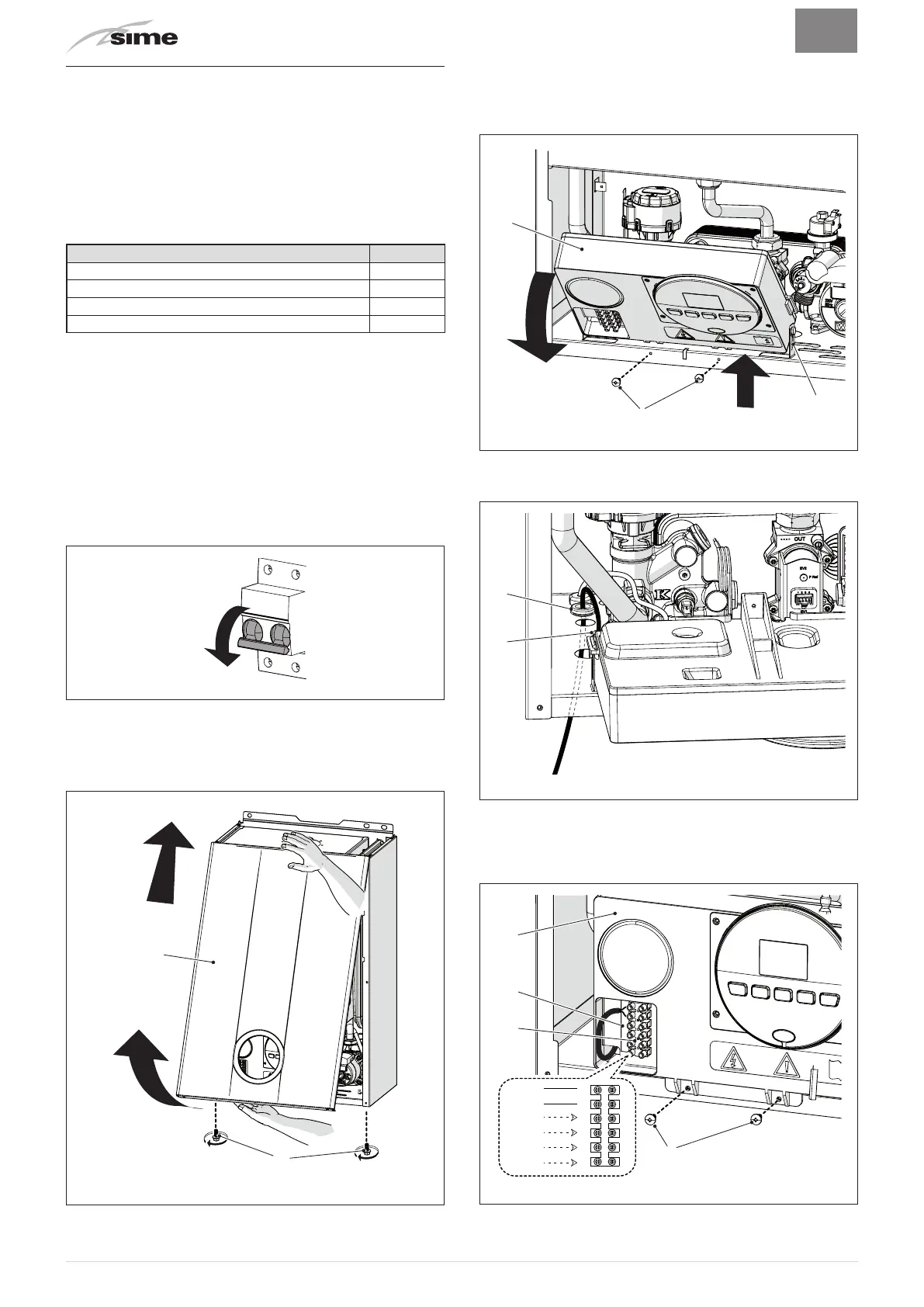

6.12 Electrical connections
The power cable must be connected to a 230V (±10%) ~ 50 Hz
network, observing L-N polarity and the earth connection. The
network must have an omnipolar switch with category III over
-
voltage, in compliance with the installation rules.
If this cable needs to be replaced, an original spare must be re-
quested from
Sime
.
Therefore only the connections of the original components as
shown in the table are needed. These are to be ordered separate
-
ly from the boiler.
DESCRIPTION CODE
External sensor kit (ß=3435, NTC 10KOhm at 25°C) 8094101
Power cable (dedicated) 6323875
Remote control HOME (open therm) 8092280
Remote control HOME PLUS (open therm) 8092281
m
CAUTION
The maintenance interventions described must ONLY
be carried out the professionally qualified personnel.
a
WARNING
Before carrying out any interventions described:
– set the main system switch to "OFF"
– close the gas valve
– make sure that no hot parts inside the appliance are
touched.
Fig. 26
To facilitate introduction of the connection wires of the optional
components into the boiler:
– remove the screws (1), pull the front panel (2) forwards and
release it from the top by lifting it
2
Fig. 27
– remove the screws (3) securing the control panel (4)
– move the panel (4) upwards (a) but keeping it in the side guides
(5) to the end of travel
– bring it forwards and down (b) until it is horizontal
a
b
5
4
Fig. 28
– insert the connection wires into the cable gland (6) and the
opening (7) on the control panel
6
7
Fig. 29
– bring the control panel (4) to the original position and secure it
with the screws (3) which were removed previously
– connect the component wires to the terminal board (8) follow
-
ing the indications provided on the data plate (9).
3
4
8
9
