Sime Brava Slim BF - Brava Slim 40 BF

56
EN

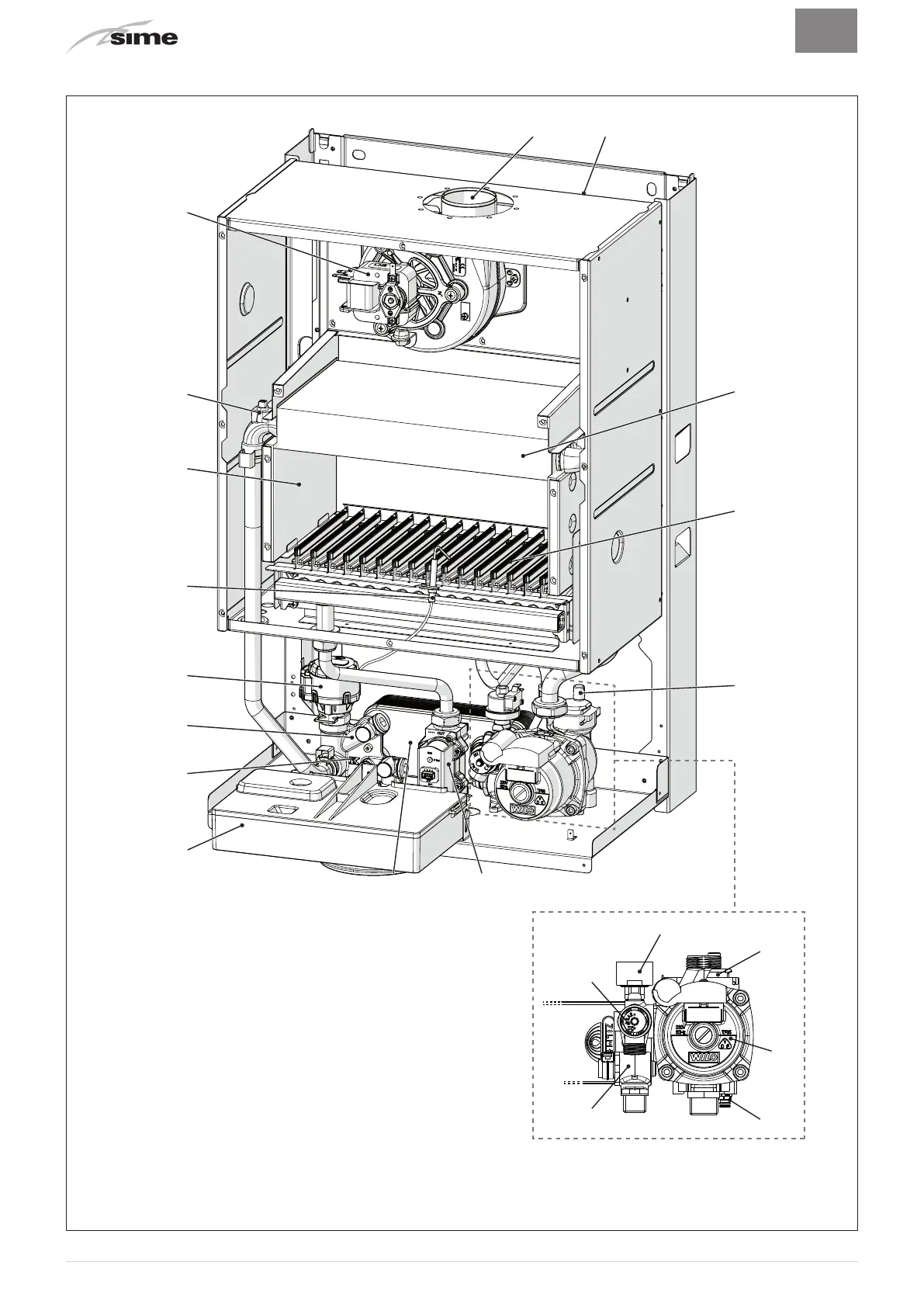

5.4.2 Brava Slim 40 BF
11
13
16
15
14
12
1
2
3
6
7
5
8
4
9 10
16
17
18
1920
1 Fan
2 Dual sensor (thermal safety/delivery)
3 Combustion chamber
4 Ignition/detection electrode
5 Diverter valve
6 System filling unit
7 Domestic hot water sensor
8 Control panel
9 Secondary heat exchanger
10 Gas valve
11 Domestic water filter and flow regulator
12 System relief valve
13 Boiler drain
14 System pump
15 Water pressure transducer
16 Automatic bleed valve
17 Burner
18 Primary heat exchanger
19 Expansion vessel
20 Smoke outlet
Fig. 10
