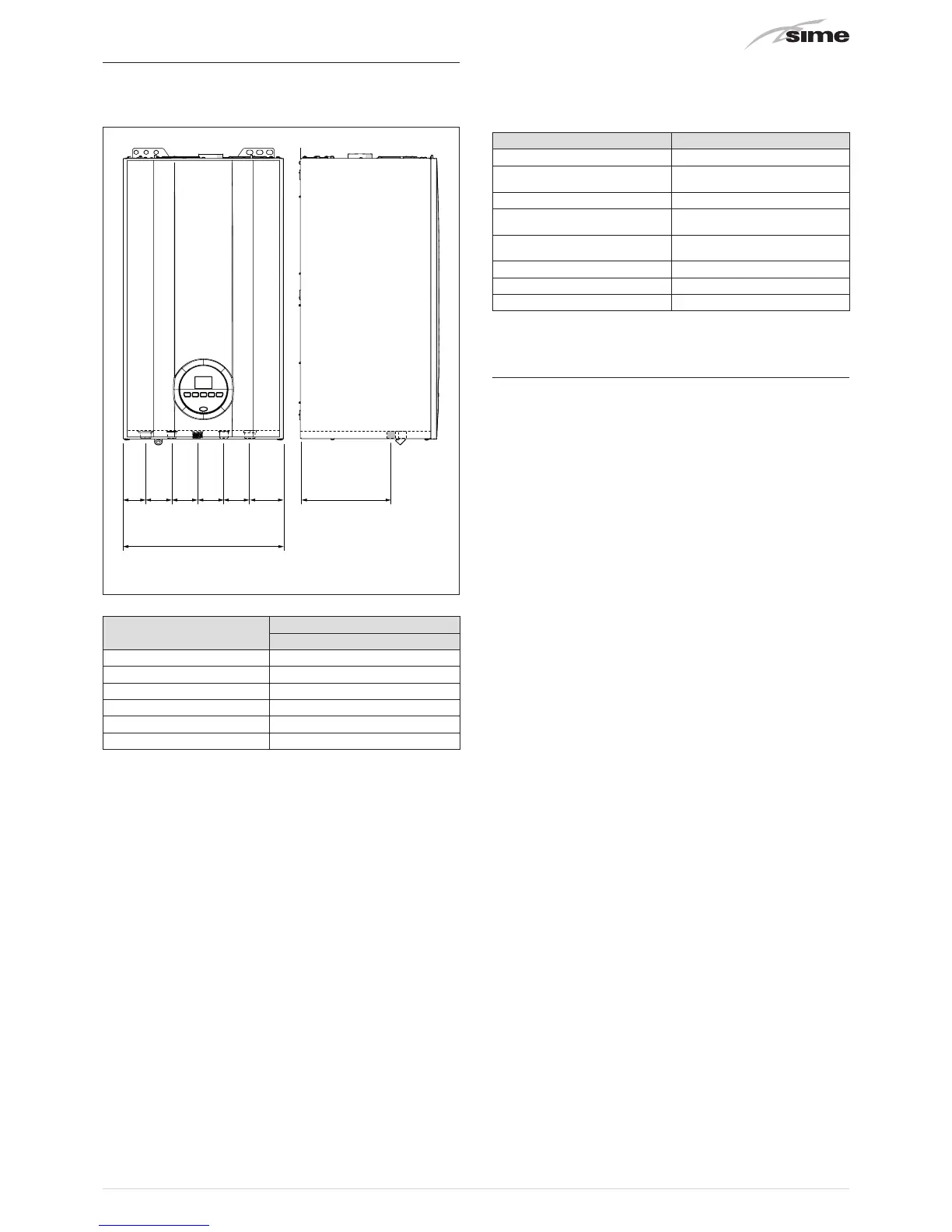

6.9 Plumbing connections
The plumbing connections have the following characteristics
and dimensions.
21465 65 65 6555 85
L
M U G E R
Fig. 21
Description
UNIQA REVOLUTION
-
M - System delivery Ø 3/4" G
R - System return Ø 3/4" G
U - Domestic hot water output Ø 1/2" G
E - Domestic hot water inlet Ø 1/2" G
G - Gas supply Ø 3/4" G
W (mm) 400
6.9.1 Plumbing accessories (optional)
To facilitate plumbing and gas connections to the systems, the
accessories as shown in the table below are available and are to
be ordered separately from the boiler.
DESCRIPTION CODE
Curve kit 8075428
Curve and valve kit with
connections from DIN to SIME
8075443
Cocks kit 8091819
Valve kit with connections from
DIN to SIME
8075442
Wall mount replacement kit for
other makers
8093900
G30/G31 nozzle kit 8059250
Polyphosphate dosing kit 8101700
Dosing recharge kit 8101710
NOTE:
kit instructions are supplied with the accessory itself or
are to be found on the packaging.
6.10 Gas supply
UNIQA REVOLUTION
boilers leave the factory specifically
prearranged for G20 gas or G30/G31. The G20 models can be
converted to function with G30/G31 using the "specific nozzle
kit" (optional) provided by
Sime
on request separately from the
boiler.
If changing the type of gas to be used, carry out the entire
"GAS
CONVERSION"
phase of the appliance.
Boiler connection to the gas mains must be carried out in full
compliance with installation Standards in force.
Before connecting the boiler to the gas mains, the user must
ensure that:
– the type of gas is correct for the appliance
– the pipes are clean
– the gas supply pipe is the same dimension as or greater than
that of the boiler fitting (G3/4") and with a load loss less than
or equal to that contemplated between the gas mains and the
boiler.
a
WARNING
Once installation has been completed, check that
the joints are air tight as indicated in the installation
Standards.
m
CAUTION
It is recommended that the gas line has a suitable
filter.
