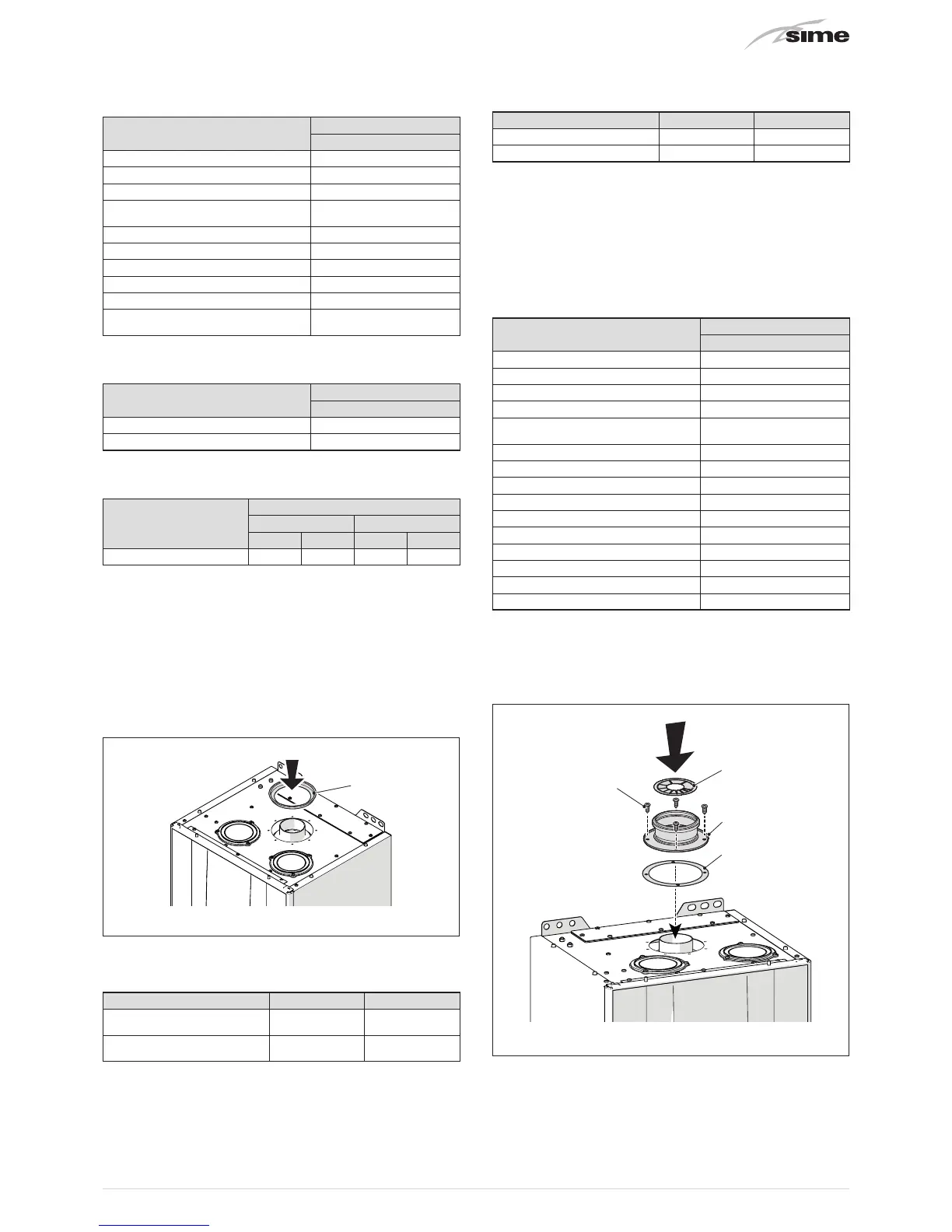

Sime UNIQA REVOLUTION - Flue System Accessories; Coaxial Duct Kit and Accessories; Separate Duct Kit and Accessories

27
6.11.1 Coaxial duct (Ø 60/100mm)
Coaxial accessories
Description
Code
Ø 60/100 mm
Coaxial duct kit 8084813
Extension W. 1000 mm 8096103
Extension W. 500 mm 8096102
Vertical extension W. 200 mm with
smoke analysis take-off point
8086908
Adapter for Ø 80/125 mm -
Additional 90° curve 8095801
Additional 45° curve 8095900
Tile with joint 8091300
Roof outlet terminal W. 1284 mm 8091200
Vertical condensation recovery W. 200
mm
8092803
Load loss - Equivalent lengths
Model
Leq (linear metres)
Ø 60/100 mm
90° curve 1
45° curve 0,5
Minimum-Maximum Lengths
Model
Duct Length Ø 60/100
W Horizontal (m) H Vertical (m)
Min. Max. Min. Max.
UNIQA REVOLUTION - 2,5 1,3 (*) 5
m
CAUTION
(*) Vertical condensate recovery MUST be introduced
for vertical ducts (Type C32) or vertical sections of the
duct (Type C42) longer than 1.3m.
Diaphragms for coaxial ducts
Boilers leave the factory equipped with a diaphragm (1) with the
following characteristics:
–
UNIQA REVOLUTION : diaphragm Ø 87.5 mm.
1
Fig. 23
When the outlets are Type C12 or C42 the diaphragm is to be
removed or kept following the indications below:
Model Diaphragm for duct L
UNIQA REVOLUTION
YES
(leave mounted)
< 1 m
UNIQA REVOLUTION
NO
(remove it)
> 1 m
When the outlet is Type C32 (vertically straight without any
curves), the presence of the diaphragm modifies the maximum
length of the duct as shown below:
Model Diaphragm Max L (m)
UNIQA REVOLUTION YES 2,5
UNIQA REVOLUTION NO 5
6.11.2 Separate ducts (Ø 80mm)
The smoke outlet and combustion air inlet can built with separate
ducts, instead of concentric ducts, using the “SEPARATE DUCTS
KIT, code. 8089932”. This is to be ordered separately from the
boiler. Connect the other accessories, chosen from those listed
in the table below, to it.
Separate accessories
Description
Code
Diameter Ø 80 (mm)
90° curve M-F (6 pieces) 8077410
90° curve M-F (with take-off point) 8077407
Extension W. 1000 mm (6 pieces) 8077309
Extension W. 500 mm (6 pieces) 8077308
Extension W. 135 mm (with take-off
point)
8077304
Wall inlet terminal 8089550
Wall outlet terminal 8089551
Internal and external ring nut kit 8091500
Inlet terminal 8089500
45° curve M-F (6 pieces) 8077411
Condensate recovery W. 135 mm 8092800
Manifold 8091400
Tile with joint 8091300
Roof outlet terminal W. 1390 mm 8091201
Condensate recovery Tee 8093300
Smoke outlet
The smoke outlet can be constructed by attaching the kit
components to the boiler fitting: the Ø125/95 sponge seal (1),
the collar (2) and the screws (3) to fix everything in place.
2
1
3
4
Fig. 24
After folding the numbered sections upwards, the diaphragm (4)
must be positioned between the collar (2) and the first part of
the outlet pipe, depending on the desired pipe load loss (inlet +
outlet total length).
