Use the ▼ /▲ keys to scroll through and select the required short message to be sent
from the pre-programmed list.
Press the OK key to send the selected short message in reply to the received message.
The radio will then return to the default screen.
Press the ‘M’ or Back key to return to the next highest menu screen.
Press the ‘Reset’ function key (if configured) to return to the default screen without
sending a short message reply.

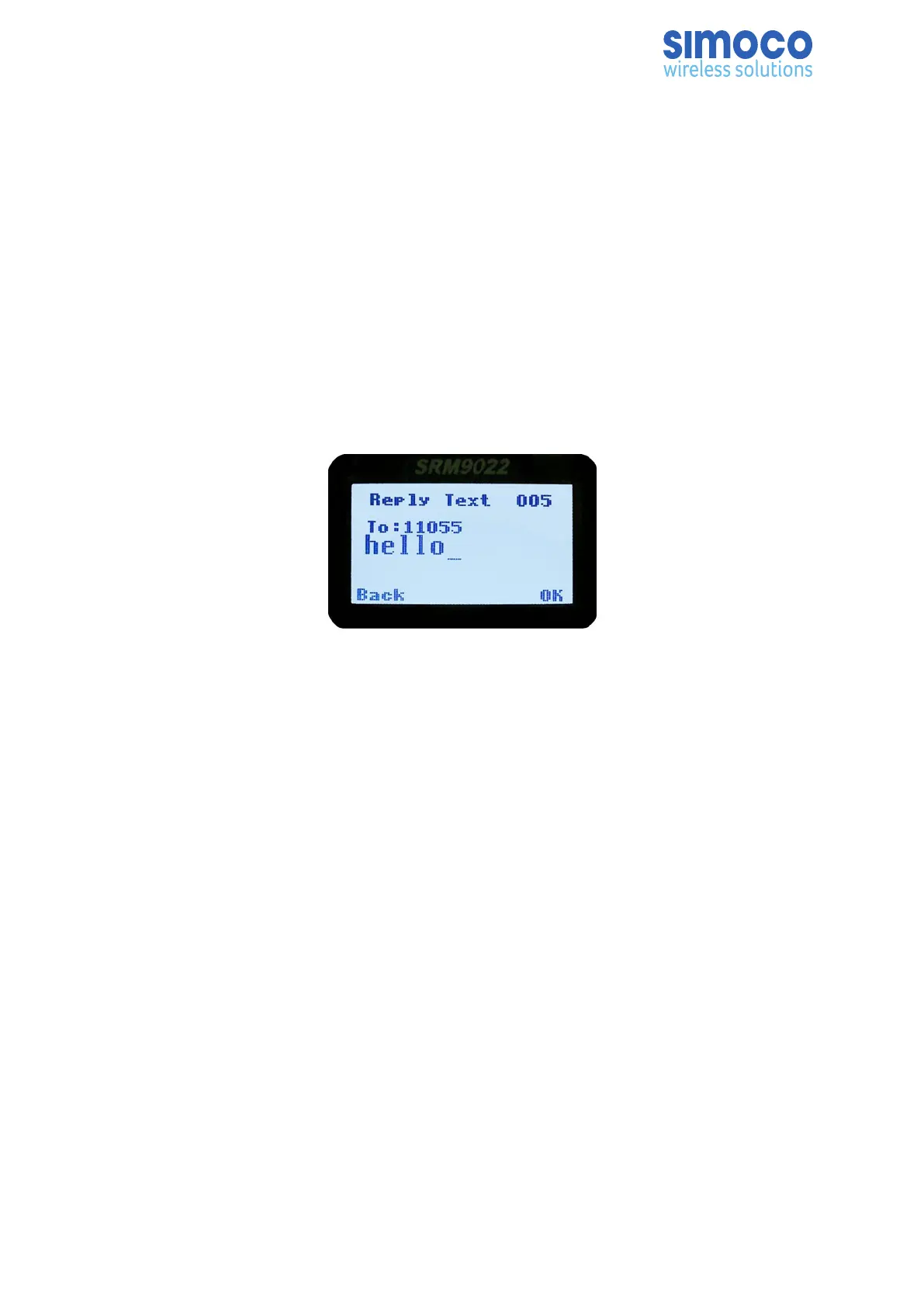

5.16.2.5. Text Message Reply Screen
The Reply Text screen is used to reply to a received message with a free form text
message.
The maximum length of text message that can be sent is 210 characters. The number
of characters entered is displayed in the top right hand side.
The characters are entered via the keypad. When using the keypad to type text:
• Press the relevant keypad key the appropriate number of times until the desired
character or number is selected.
• The current character position is identified by a flashing block cursor.
• Use the ▼ /▲ keys to move to the next or previous character space to be
entered/modified.
• Use the ‘#’ key to select lower/upper case letters.
• The ‘0’ (zero) key is the space key.
• Pressing and holding the ‘Reset’ key for less than one second will delete the
character to the left of the cursor and move the cursor one position to the left.
• Pressing and holding the ‘Reset’ key for more than one second will delete all
characters from the cursor position to the left until the ‘Reset’ key is released. A
new character entered is put on the current cursor location.
When the text message is complete, press the OK key to send the text message in reply
to a received message. The radio will then return to the default screen.
Press the ‘M’ or Back key to return to the next highest menu screen.
Doc Number: TNM-U-E-0055 ISSUE 4.0 Page 55
