9. Using a screwdriver and the four No. 12 x 1.5” woodscrews, secure the wall
mount unit to the wall surface.

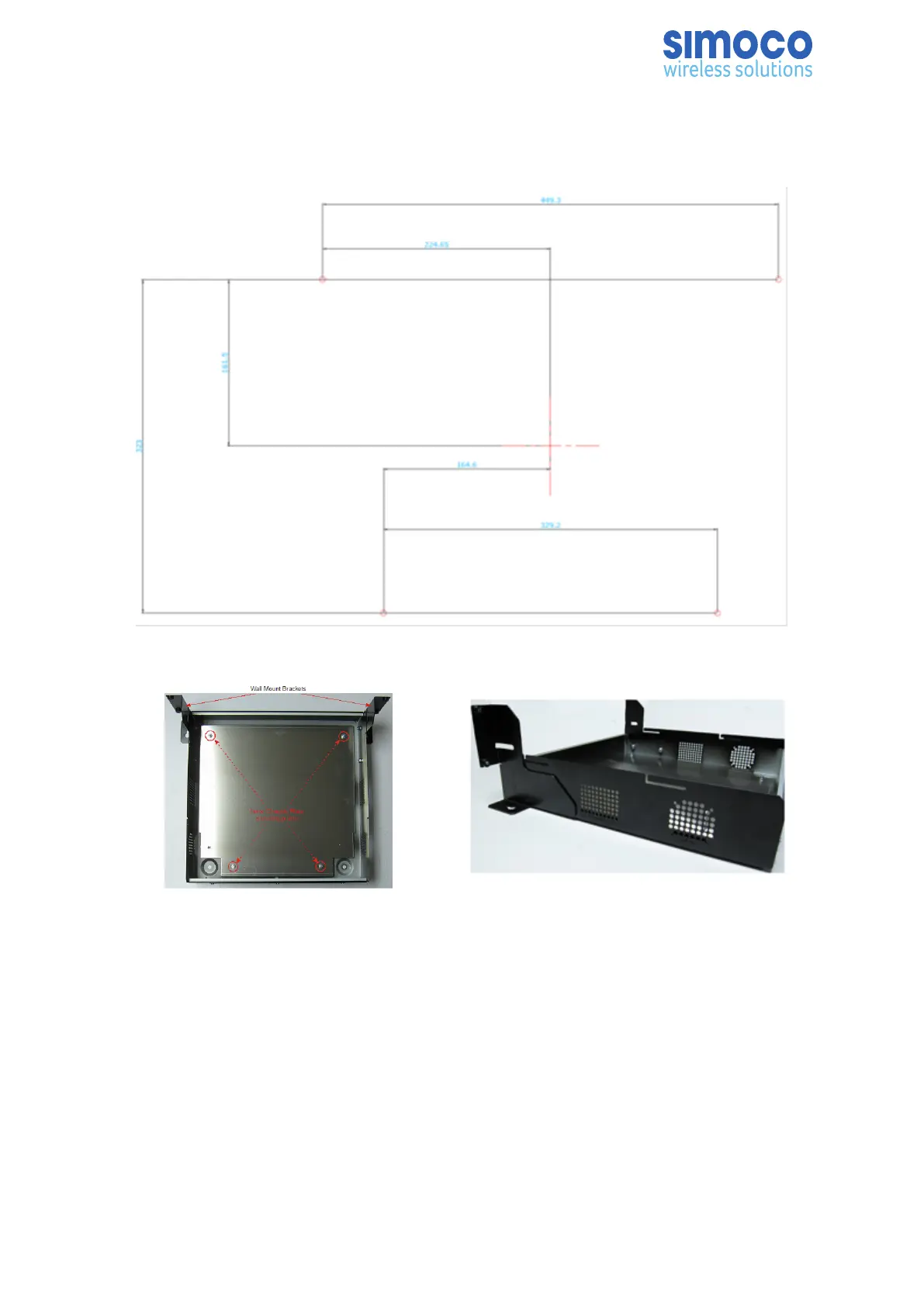

Figure 3: Mounting holes drilling template (dimensions in mm).
Figure 4: Wall Mount Assembly.
10. Ensuring that all cables are clear of the mounting position and cannot be
trapped, offer the base station up to the wall mount unit and fit the four
keyhole standoffs on the base station (two per side) into the mounting grooves
on the wall mount case (see Figure 5 overleaf for details).
11. Secure the front panel of the base station to the wall mount brackets using four
M6 x 12 mm pozidriv retaining bolts with plastic cup washers (two per side) (see
Figure 6 overleaf).
Doc Number: TNM-I-E-0046 ISSUE 1.2 Page 35
