Simoco SDB680 - Electrical Connections; Figure 5: Keyhole Standoff Mounting Locations; Figure 6: Base Station Secured to Wall Mount

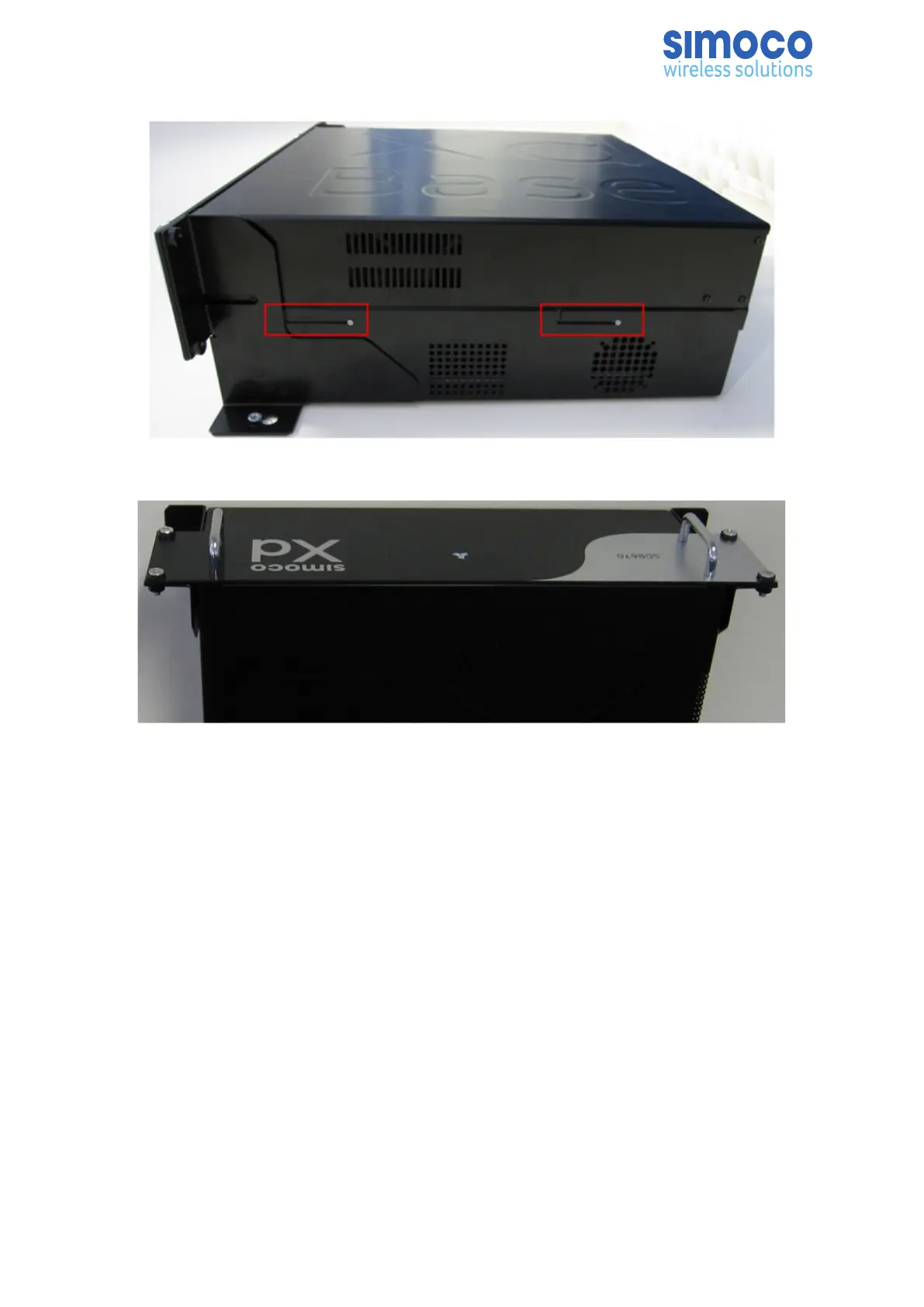

Figure 5: Keyhole Standoff mounting locations.

Figure 6: Base Station secured to Wall Mount.

4.2. ELECTRICAL CONNECTIONS
1. Refer to the Electrical Connections section, for full details of all connections and
the connector pin-outs.
2. Using a suitable test set, e.g. an Anritsu/Wiltron S331A, check the Tx and Rx
antenna connections for a VSWR of 1.5:1 or better at the relevant Tx and Rx
Frequencies.
3. On the SDB680 Base Station rear panel, carry out the following:
a. Connect the Tx and Rx antenna cables to their respective connectors.
b. Ensuring that the power source is switched off, connect the DC power
cable from the ‘DC IN’ connector to the power source.
4. Carry out the configuration of the SDB680 in accordance with Todo//Section 3 –
Configuration of New Tier II Base Station or Todo//Section 4 – Configuration of
New Tier III Base Station as appropriate.
