Simoco SDB680 User Manual

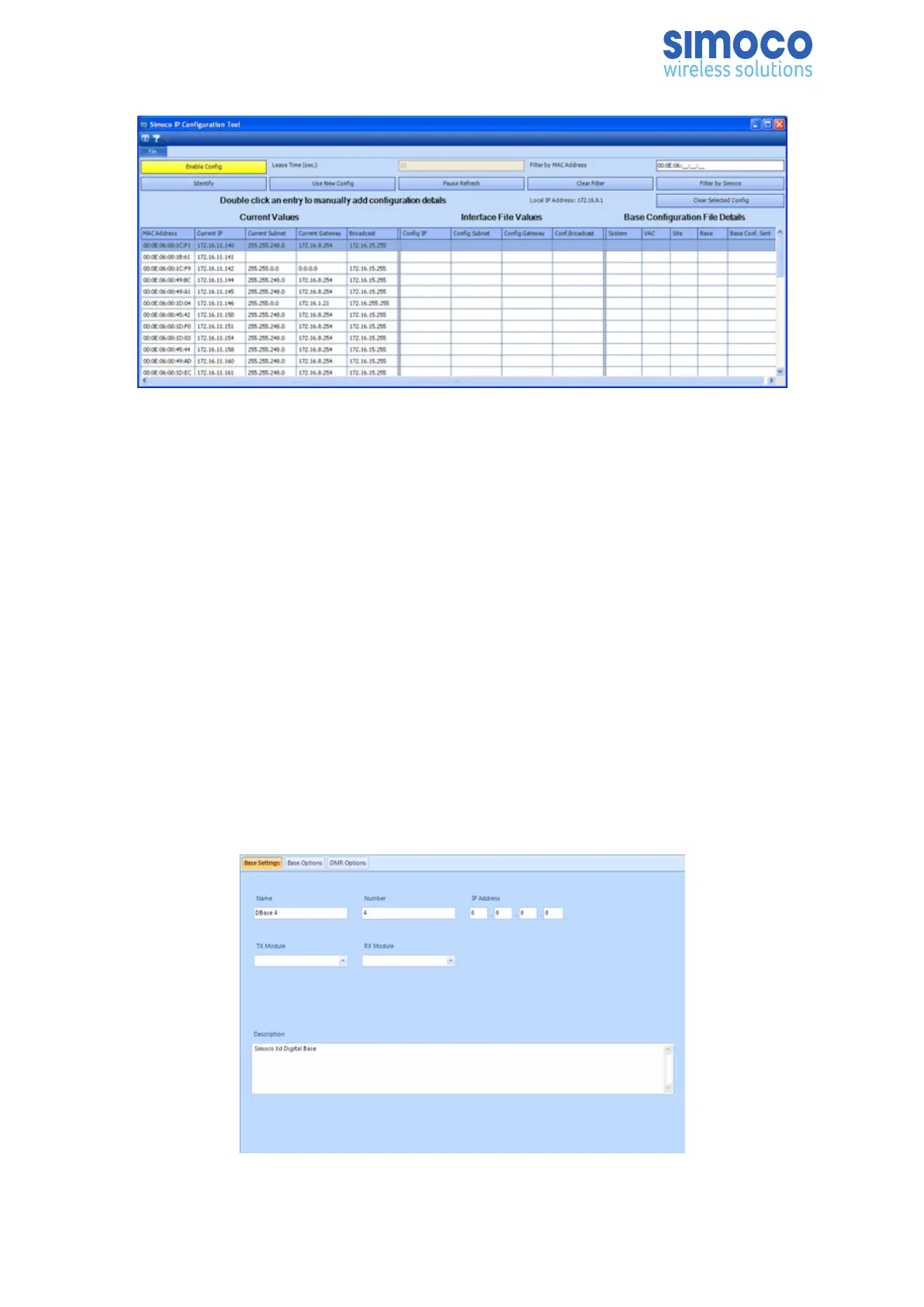

Figure 8: IP Configuration Tool main screen

5. Refer to the Simoco IP Configuration Tool User Manual [3] and configure the IP
Address for the relevant MAC Address listed in the data grid of the main screen
in accordance with see CONFIGURATION OF NEW TIER II BASE STATION on the
previous page..
6.5. CONFIGURING THE DMR BASE
1. On the SDMT main screen, carry out the following:
2. On the ribbon bar, select the ‘DMR Tier II’ tab.
3. On the Site View tab of the Navigation Pane, from the navigation tree, click on
the ‘System’ branch to expand it. Click on the ‘Site 1’ node displayed.
4. On the Ribbon bar, select the ‘Add Digital Base’ button to add a digital base to
Site 1 on the navigation tree.
5. On the Site View tab of the Navigation Pane, from the navigation tree, select
the new DMR Base that has just been added to the navigation tree. The Base
configuration page will be displayed in the configuration page area see Figure 9
.
Figure 9: Base configuration page – Base Settings tab.
Doc Number: TNM-I-E-0046 ISSUE 1.2 Page 41
