3. Connect an Ethernet switch cable to the Ethernet socket.
4. Switch on the power for the system and, in turn, power up each SDB680 base
station.
6.2. SDMT INSTALLATION AND PREPARATION
1. Refer to the SDMT DMR Tier II User Manual [2] and carry out the following:
a. Install the SDMT software in accordance with Todo//Section 1.2 –
Software Installation.
b. Prepare the SDMT software for use in accordance with Todo//Section 2.2
– SDMT Preparation.
c. Create or establish a connection to a suitable Microsoft SQL Server
database in accordance with Todo//Section 2.3 – Database Connection.
6.3. INSTALLING THE SIMOCO IP CONFIGURATION SERVER
1. Refer to the Simoco IP Configuration Tool User Manual [3] and install the
Simoco IP Configuration Server software in accordance with Todo//Section 1.3 –
Software Installation.
2. After installing the Simoco IP Configuration Tool software, ensure that the PC
on which the software is installed is connected to the Ethernet switch via a CAT
5 Ethernet cable.
6.4. IP ADDRESS CONFIGURATION
1. On the PC, start the Simoco IP Configuration Tool.
2. If the PC has more than one IP address or Network Connection, when the IP
Configuration Tool is started, the Interface Selection screen will be displayed
(see Figure 7 below).

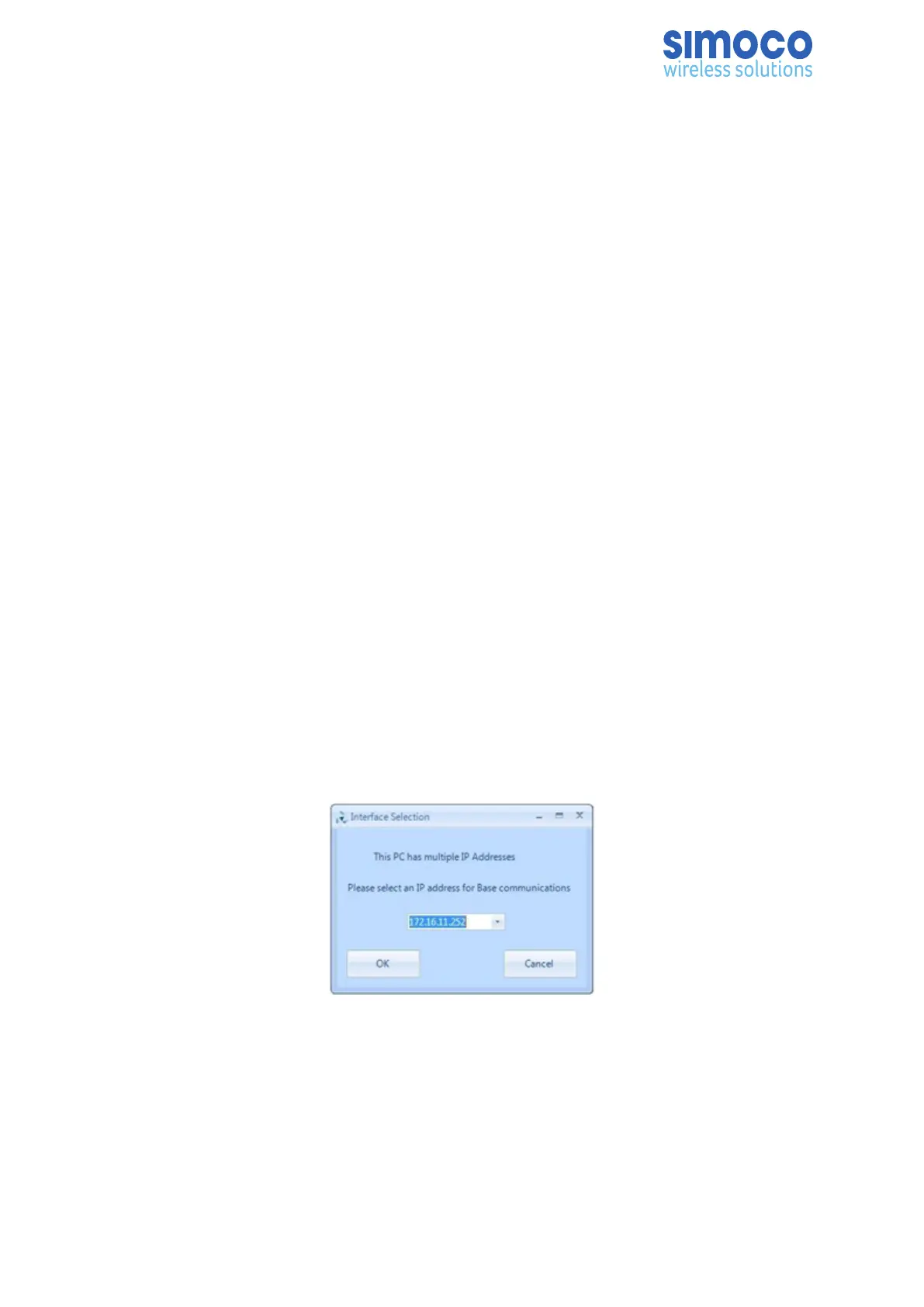

Figure 7: Interface Selection screen.
3. On the Interface Selection screen, select the relevant IP address that is to be
used for communicating with the base station(s).
4. Once the IP address has been selected the Simoco IP Configuration Tool main
screen will be displayed (see Figure 8 below).
Doc Number: TNM-I-E-0046 ISSUE 1.2 Page 40
