Assembly Instructions
4. aSSembly inStructionS (cont.)
4.3 Assembly Steps (cont.)

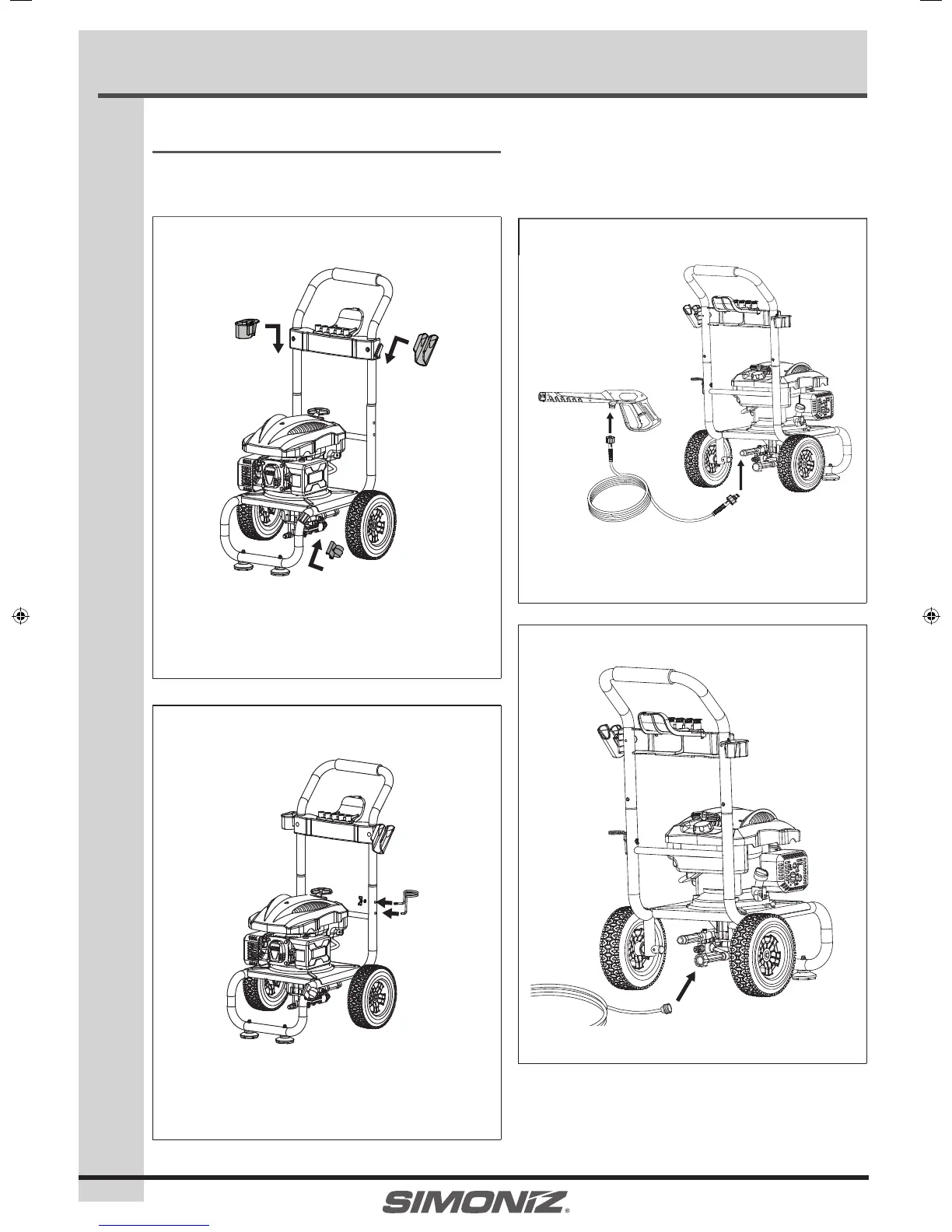

D
Attach gun holder, gun support and hose hook on the main
frame and handle respectively.
F
Assemble the bottle holder to the frame by tightening the
wing nut.
G
Connect pressure hose to the pump outlet and the gun
connector respectively.
H
Connect the garden hose to the inlet adapter.
