5.2 Configuring 2008 FACU for LCD ANN using Panel PC Tool
There is no option to configure the annunciators in the Conventional Panel Programmer (CPP). You can use the personal computer tool to
enable or disable annunciators that are connected to the 2008 FACU. To enable or disable annunciators that are connected to the FACU,
complete the following step:
• In the Hardware tab, under the Optional hardware section select the appropriate check box to enable or disable the annunciators
connected to the FACU.

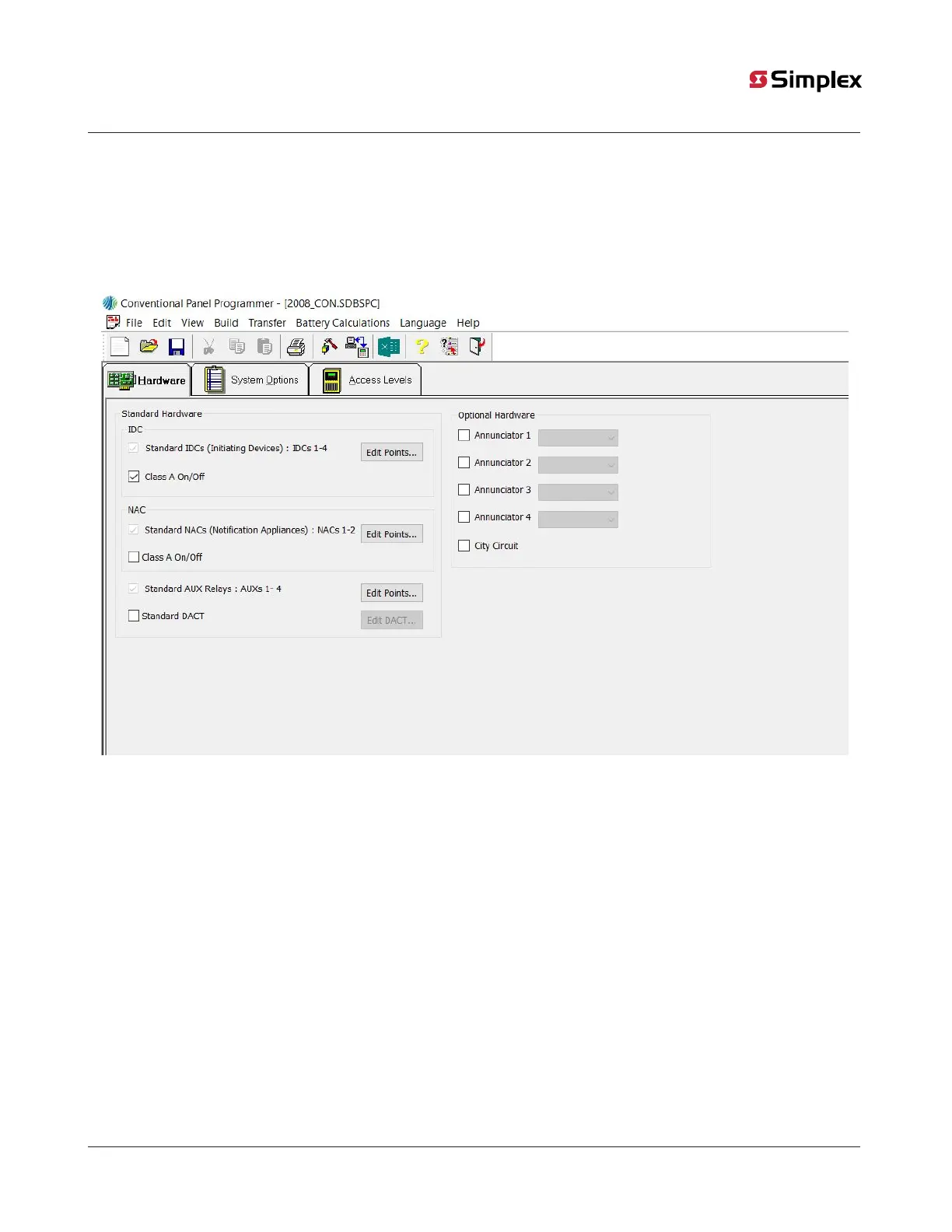

Figure 11: Enabling annunciators using the PC tool
The reference address for the respective annunciators are also visible if the data is read over the CPP UI.
page 13 579-1434 Rev B
Foundation Series 2606-9101 LCD Annunciator Installation Guide
