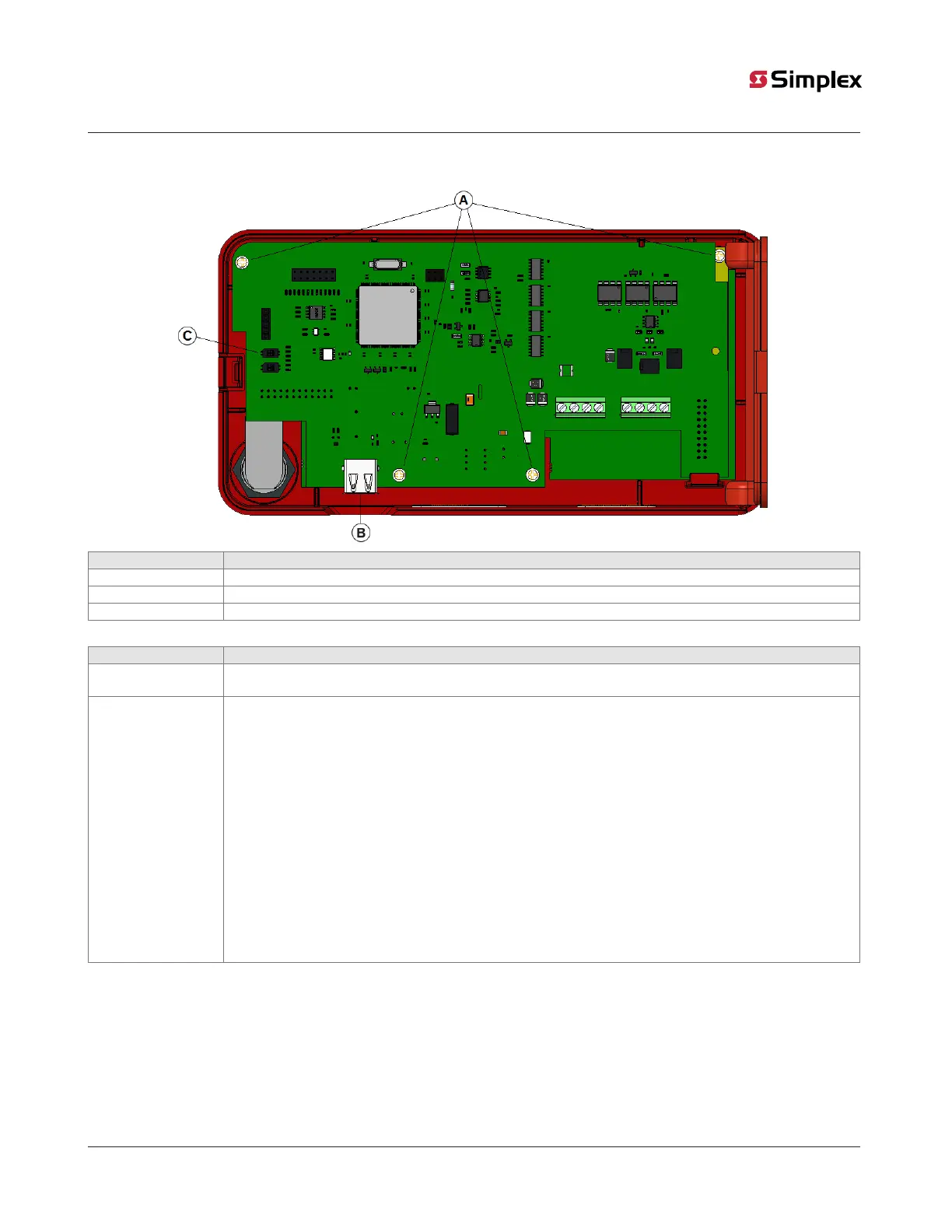

Figure 3: USB location, Annunciator rear view
Callouts Description
A Screw locations
B USB location
C SW9
Table 2: Remote Annunciator main back components
Components Description
USB port (J1) Use for firmware upgrade. To access the USB port, remove the back plate. For more information contact technical
support.
Address switch SW9.1 Use this switch to select the conventional or addressable FACU for the LCD Annunciator.
CAUTION: After the Annunciator is configured successfully, it is not recommended to change the personality of
the Annunciator from addressable to conventional or conventional to addressable as it will not match the config-
uration settings.
1. To select the Addressable LCD Annunciator:
a. For addressable mode, face SW9.1, then change the position of SW9.1 to the right side, horizontally in
the ON state.
b. Press and hold the RESET key on the Annunciator UI.
c. Apply power to the Annunciator.
d. Wait 5 seconds, then release the RESET key or wait until the Annunciator UI displays the first screen.
2. To select the conventional LCD Annunciator:
a. For conventional mode, face SW9.1, then change the position of SW9.1 to the left side, horizontally in
the OFF state.
b. Press and hold the RESET key on the Annunciator UI.
c. Apply power to the Annunciator.
d. Wait 5 seconds then release the RESET key or wait until the Annunciator UI displays the first screen.
page 6 579-1434 Rev B
