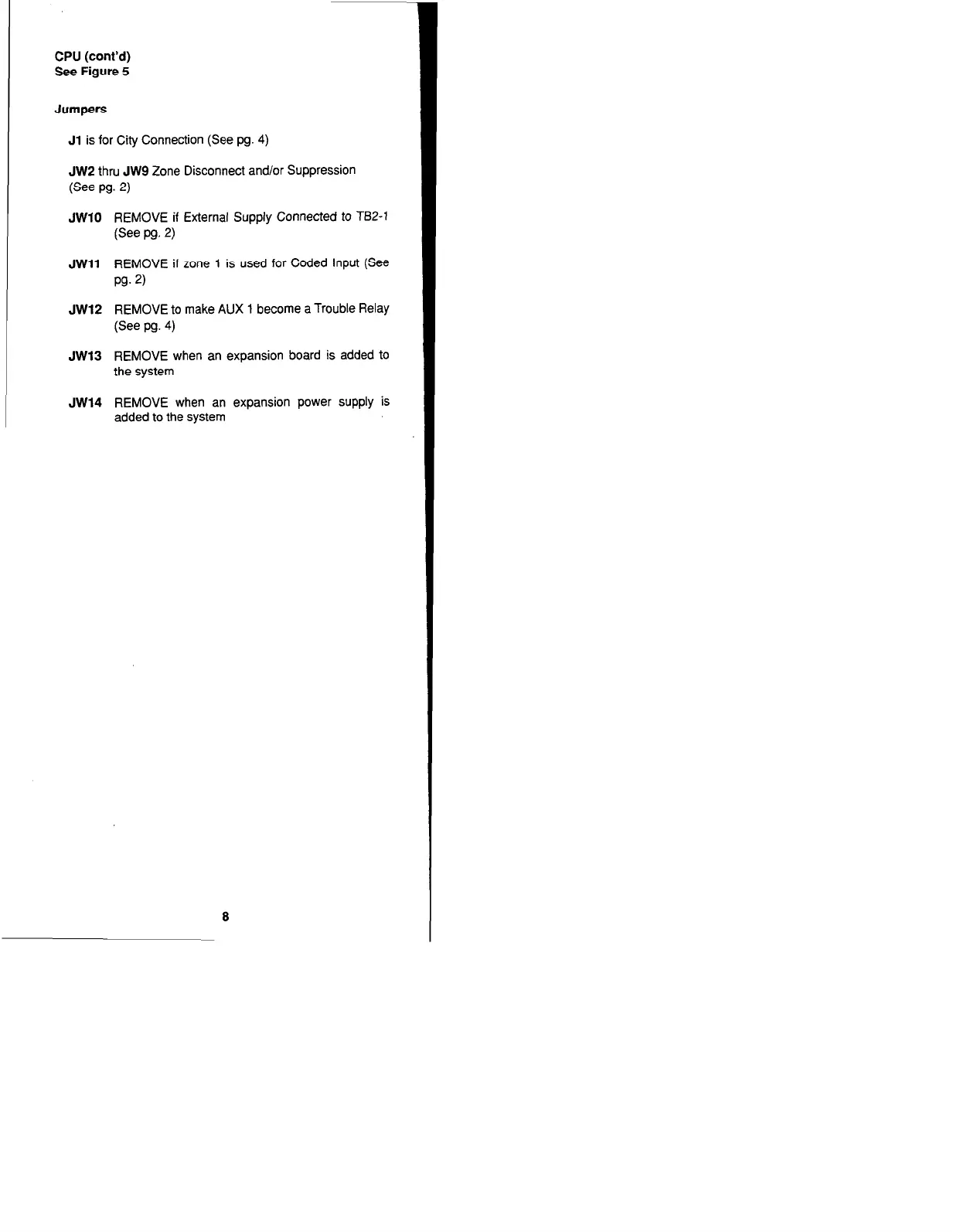

CPU (cont’d)
See Figure 5
Jumpers
Jl is for City Connection (See pg. 4)
JW2 thru JW9 Zone Disconnect and/or Suppression
(See Pg. 2)
JWiO REMOVE if External Supply Connected to TBZ-1
(See Pg.
2)
JWll REMOVE if zone 1 is used for Coded Input (See
Pg. 2)
JW12 REMOVE to make AUX 1 become a Trouble Relay
(See Pg. 4)
JW13 REMOVE when an expansion board is added to
the system
JW14 REMOVE when an expansion power supply is
added to
the system
8
