Simplex 4002 Instructions

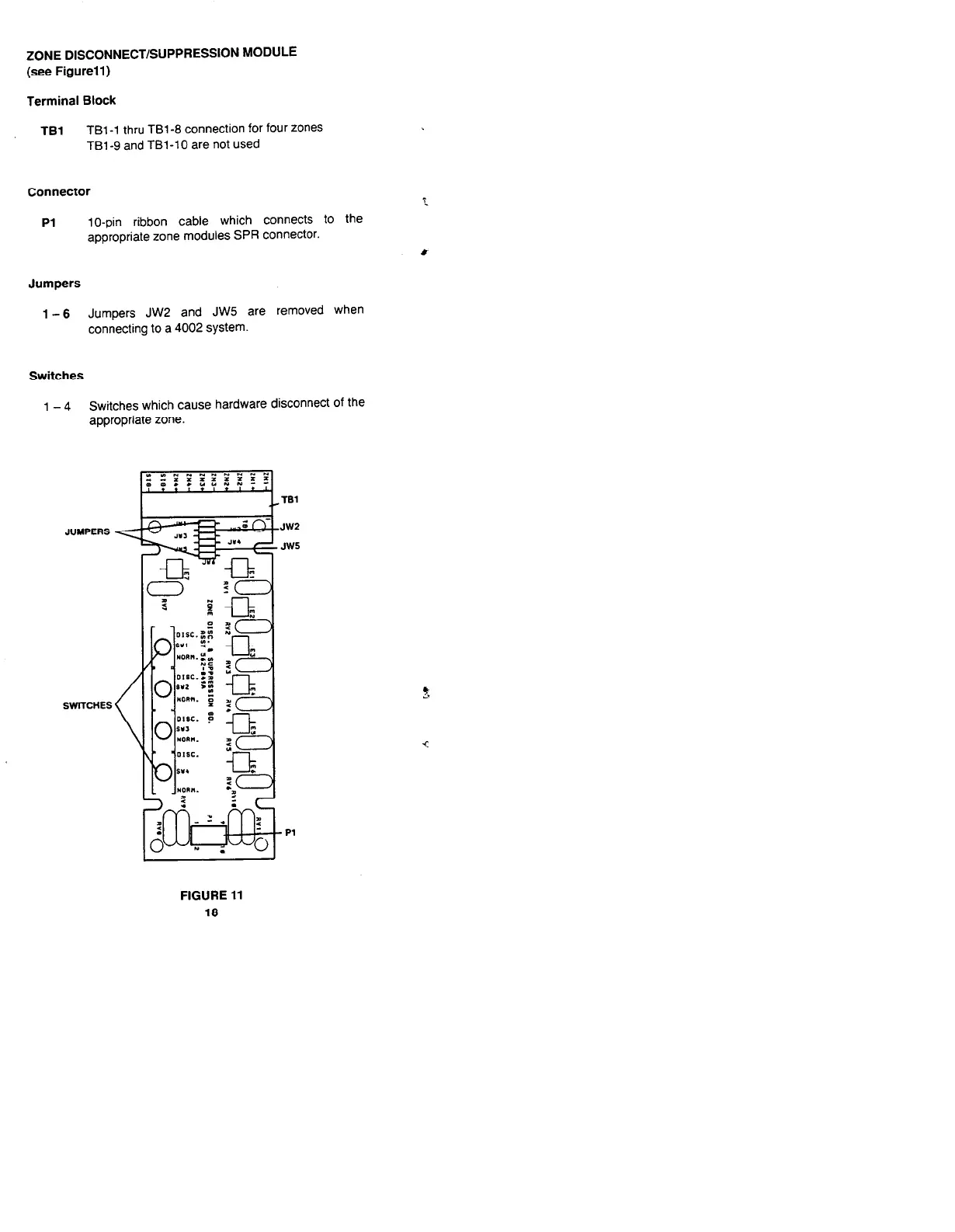

ZONE DISCONNECT/SUPPRESSION MODULE
(see Figurell)
Terminal Block
TBl
TBl-1 thru TBl-8 connection for four zones
TBl -9 and TBl-10 are not used
Connector
Pl
lo-pin ribbon cable which connects to the
appropriate zone modules SPR connector.
*
Jumpers
1 - 6 Jumpers JW2 and JW5 are removed when
connecting to a 4002 system.
Switches
l-4 Switches which cause hardware disconnect of the
appropriate zone.
JUMPERS
JW2
JW5
. Pl
FIGURE 11
18
