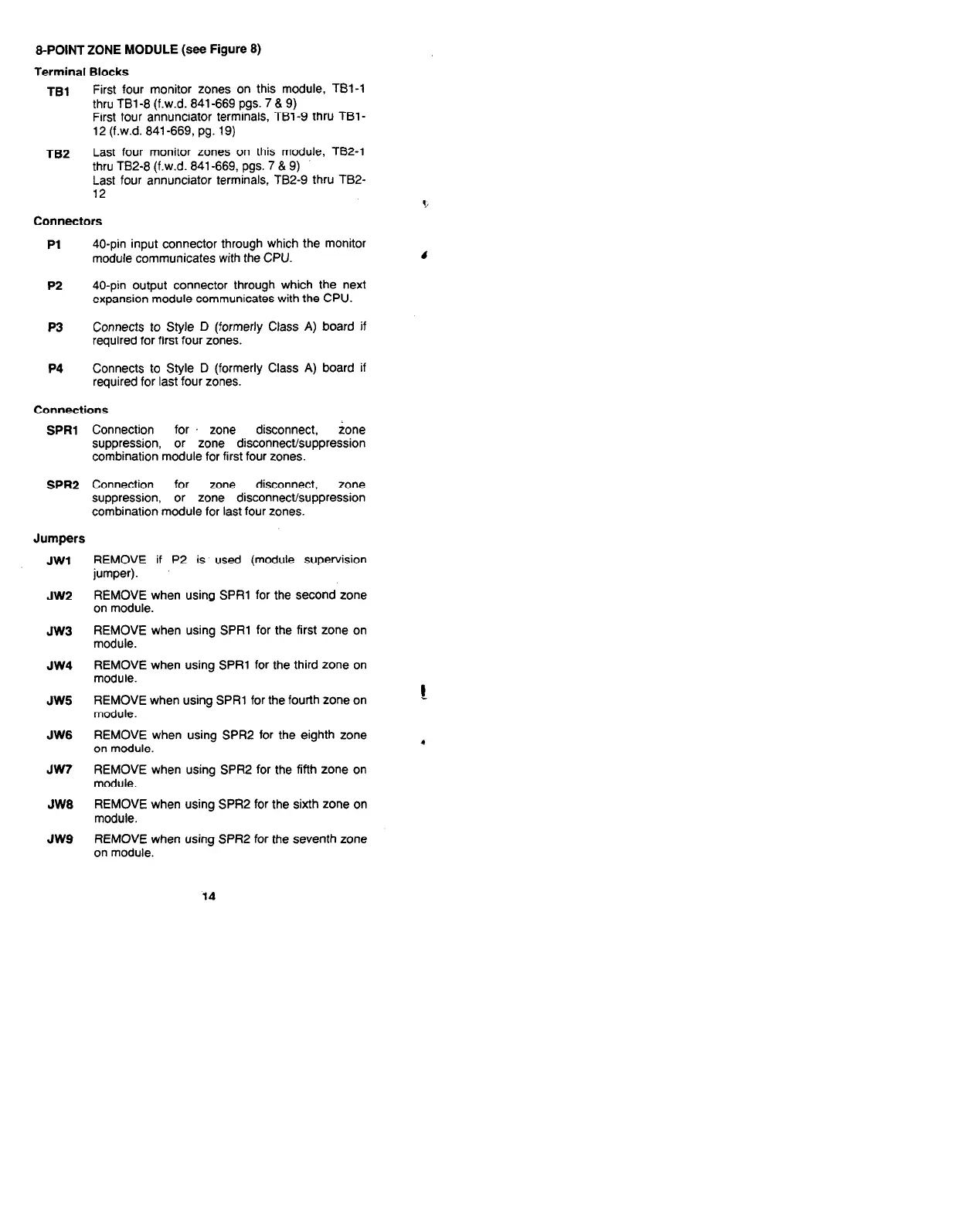

&POINT ZONE MODULE (see Figure 8)
Terminal Blocks
TBl
First four monitor zones on this module, TBl-1
thru TBl-8 (f.w.d. 841-669
pgs.
7 & 9)
First four annunciator terminals, TBl-9 thru TBl-
12 (f.w.d. 841-669, pg. 19)
TB2
Last four monitor zones on this module, TB2-1
thru TB2-8 (f.w.d. 841-669, pgs. 7 & 9)
Last four annunciator terminals, TB2-9 thru TB2-
Connectors
Pl
40-pin input connector through which the monitor
module communicates with the CPU.
4
P2
40-pin output connector through which the next
expansion module communicates with the CPU.
P3
Connects to Style D (formerly Class A) board if
required for first four zones.
P4 Connects to Style D (formerly Class A) board if
required for last four zones.
Connections
SPRl Connection
for .
zone
disconnect,
ione
suppression,
or zone disconnect/suppression
combination module for first four zones.
SPR2 Connection for zone disconnect, zone
suppression,
or zone disconnect/suppression
combination module for last four zones.
Jumpers
JWl
REMOVE if P2 is used (module supervision
jumper).
JW2
REMOVE when using SPRl for the second zone
on module.
JW3
REMOVE when using SPRl for the first zone on
module.
JW4
REMOVE when using SPRl for the third zone on
module.
JW5
REMOVE when using SPRl for the fourth zone on
!
module.
JW6 REMOVE when using SPR2 for the eighth zone
on module.
,
JW7 REMOVE when using SPRP for the fifth zone on
module.
JW8
REMOVE when using SPR2 for the sixth zone on
module.
JW9
REMOVE when using SPR2 for the seventh zone
on module.
