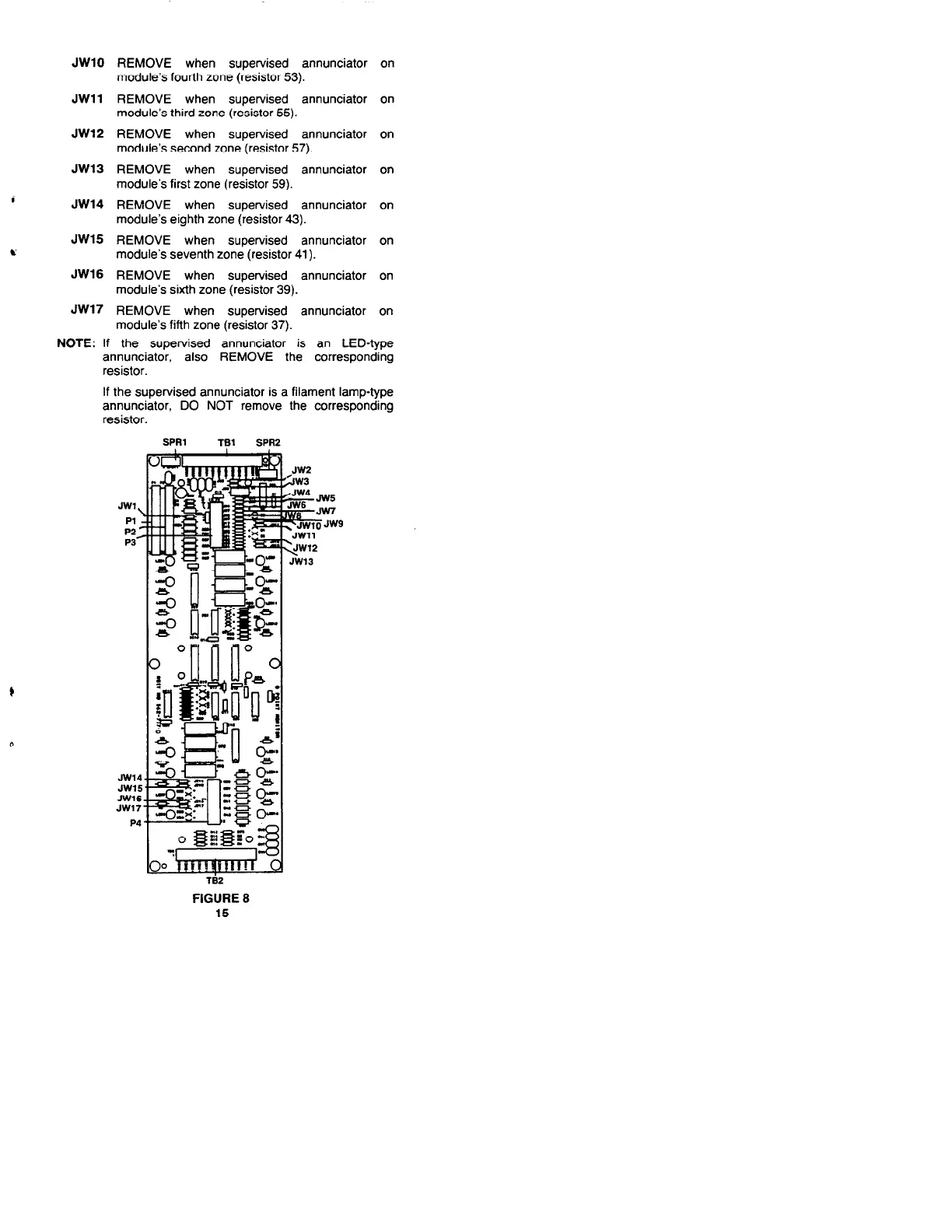

Simplex 4002 Instructions

JWlO
JWll
JW12
JW13
i
JW14
JW15
c
JW16
JW17
REMOVE when supervised annunciator
module’s fourth zone (resistor 53).
REMOVE when supervised annunciator
module’s third zone (resistor 55).
REMOVE when supervised annunciator
module’s second zone (resistor 57).
REMOVE when supervised annunciator
module’s first zone (resistor 59).
REMOVE when supervised annunciator
module’s eighth zone (resistor 43).
REMOVE when supervised annunciator
module’s seventh zone (resistor 41).
REMOVE when supervised annunciator
module’s sixth zone (resistor 39).
REMOVE when supervised annunciator
module’s fifth zone (resistor 37).
on
on
on
on
on
on
on
on
NOTE: If the supervised annunciator is an LED-type
annunciator, also REMOVE the corresponding
resistor.
If the supervised annunciator is a filament lamp-type
annunciator, DO NOT remove the corresponding
resistor.
SPRl
TBl
SPR2
JWl ,
Pl
P2 ’
P3-
JW14
JWlC
JW16
JW17
P4
9
TE2
FIGURE 8
15
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Simplex 4002 Specifications

General

Voltage	24 VDC
Temperature Range	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
Interconnect Capability	Yes
Compliance	UL
