1-2
Chapter 1 Overview
Overview, Continued
User Interface The user interface is a 4.3” (109mm) diagonal color LCD with a built-in resistive touch panel
and 12 indicating LEDs. The color LCD provides system status and access to perform system
functions and to change the system configuration.

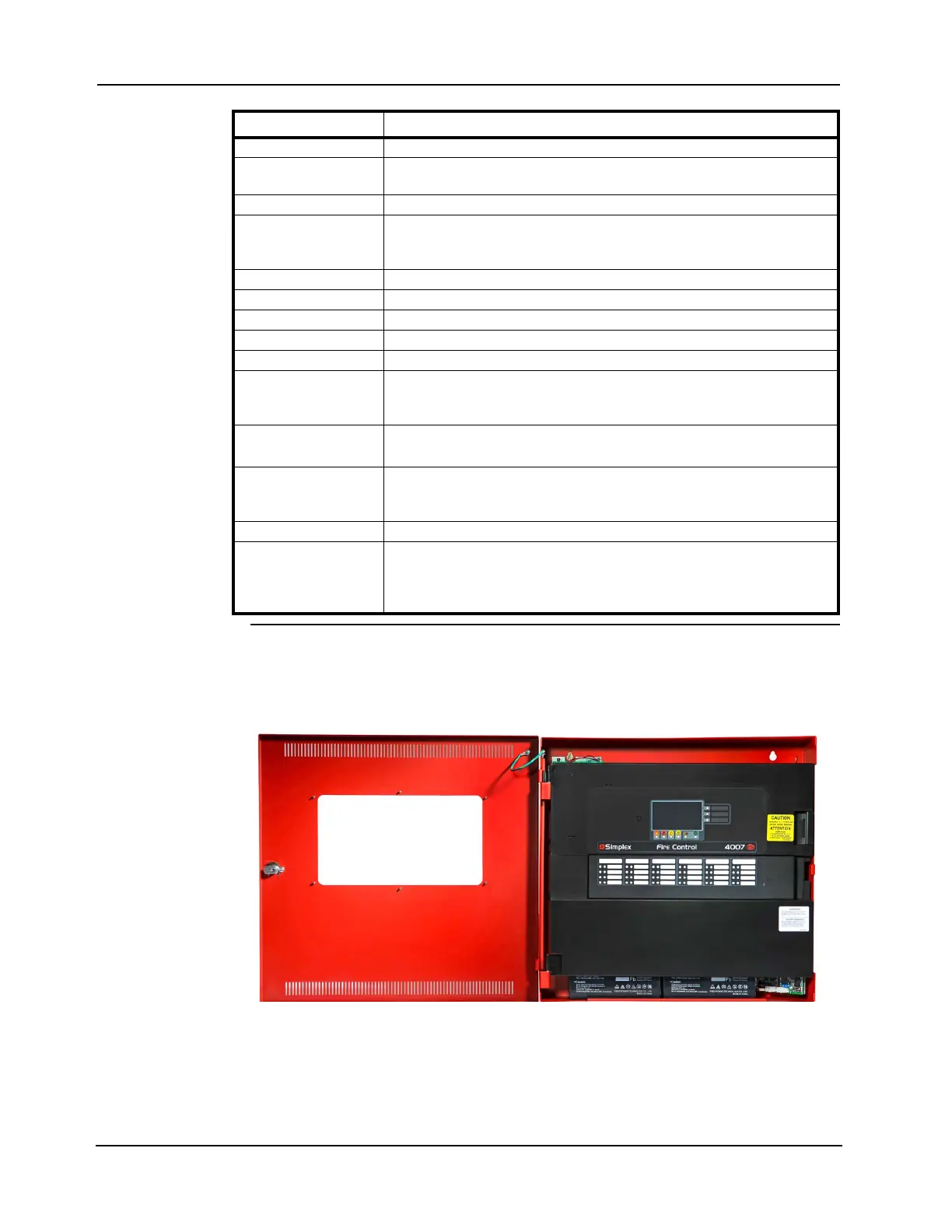

Figure 1-1 shows an inside view of the 4007ES panel with the optional LED module
(4007-9805) installed.
Figure 1-1. 4007ES Panel Inside View
Glossary
Term Definition
Aux Abbreviation for Auxiliary; typically used to describe Auxiliary Power.
EOL End-of-Line (typically in reference to and end-of-line resistor or EOL
resistor).
FACP Fire Alarm Control Panel.
Hybrid In this document, “Hybrid” the 4007ES Hybrid models that provide both
addressable and conventional initiation with conventional non
addressable Notification Appliance Circuits.
IDC Initiating Device Circuit.
IDNet Addressable SLC for up to 250 addressable devices.
IDNet+ IDNet which is electrically isolated from internal panel electronics.
IDNAC Individual Device Notification Appliance Circuit (Addressable).
NAC Notification Appliance Circuit (formerly called signal circuit).
Regulated 24 DC Notification appliance operation that meets the minimum listing
requirements; inrush currents typically require power supply and NAC
rating.
RUI Remote Unit Interface; SLC for communications with remote
annunciators.
Simple NAC A Reverse Polarity Supervised Notification Appliance Circuit that is
capable of on steady or coded operation. Sync or SmartSync operation
is not supported.
SLC Signaling Line Circuit
SmartSync A reverse polarity monitored NAC capable of synchronizing and
controlling both horns and strobes on the same circuit via a proprietary
signaling protocol. Used as the protocol for TrueAlert Non-Addressable
Devices.
