Simplex 4010ES Series User Manual

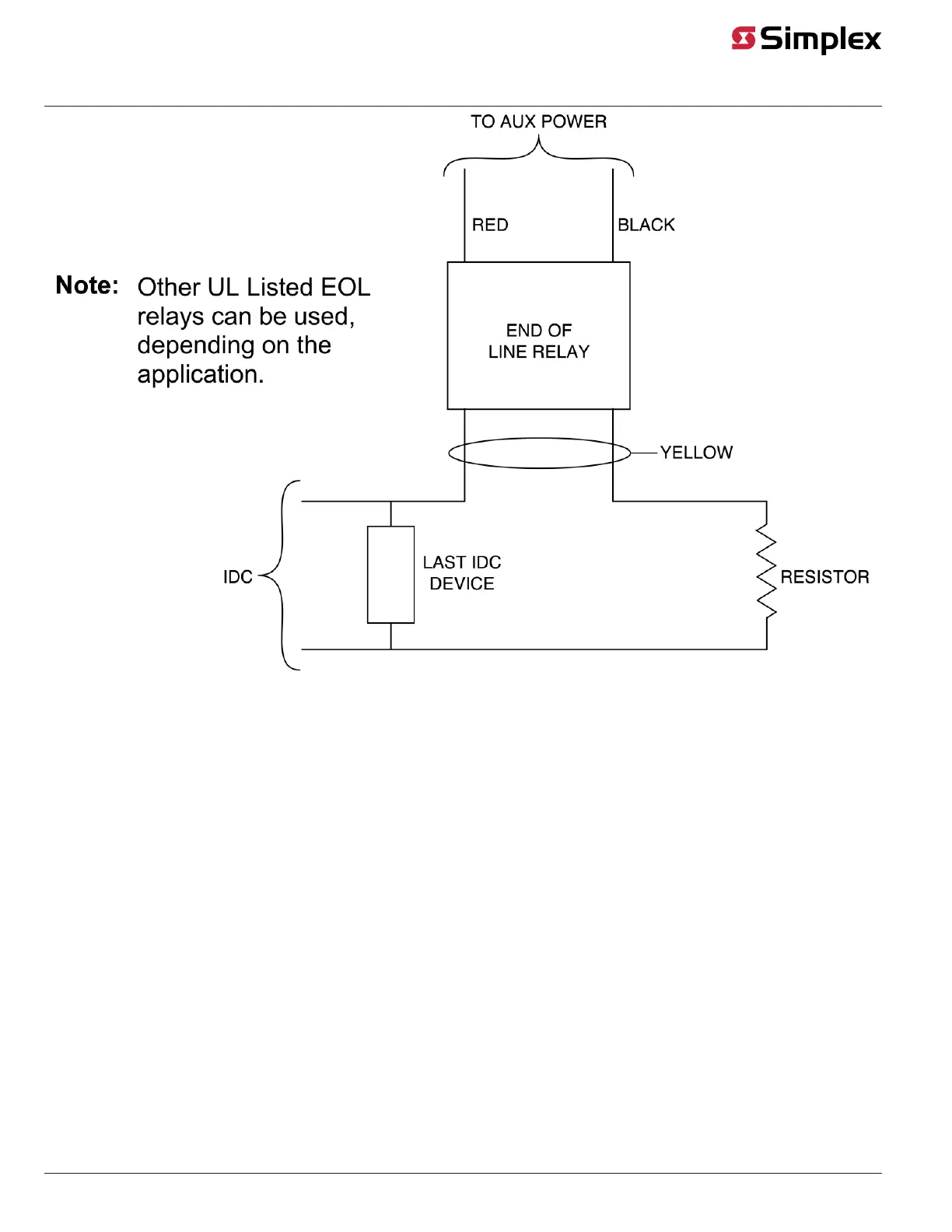

Figure 17: The 2098-9739 EOL relay
Class A Monitor Zone Wiring
Class A Wiring
This section shows typical wiring for a Class A monitor or security device circuit. Devices connect in the same manner to any of the following monitor
zone modules. For information on wiring a waterflow switch to a class A monitor zone module, refer to Class A Monitor Zone – Waterflow Switch
Wiring.
• 4100-5011 8 Zone Class A – Connects Fire Initiating Devices Only
• 4100-5014 8 Zone Class A – Connects either Fire Initiating Devices or Security Devices
• 4100-5015 8 Zone Class A – Connects either Fire Initiating Devices or Security Devices
• 4010-9921 8 Zone Class A – Connects Fire Initiating Devices Only
page 18 579-205 Rev. H
4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions

Simplex 4010ES Series Specifications

General

Communication Ports	RS-232, USB
Notification Appliance Circuits (NACs)	4 NACs
Display	LCD display
Annunciation	LED annunciators
Agency Listings	UL, FM, CSFM
Max Zones	99
Battery Backup	24-hour standby
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Dimensions	368 mm x 318 mm
