3. Attach four lockwashers and metal standoffs to the chassis, and secure the motherboard to the chassis using four #6 screws.

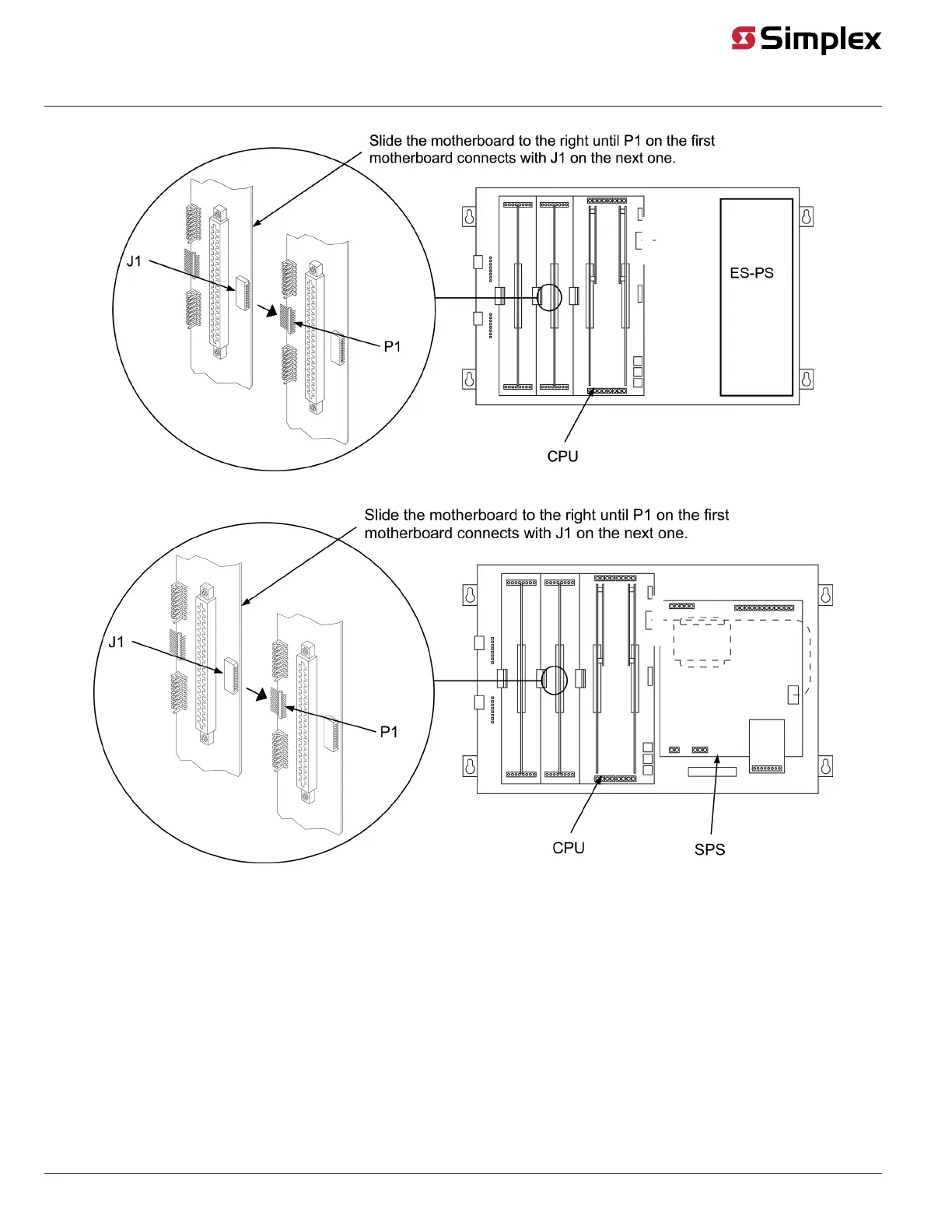

Figure 6: Installing the Motherboard into a 4100ES CPU bay

Figure 7: Installing the Motherboard into a 4100U/4100ES CPU Bay

page 7 579-205 Rev. H

4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions
