Figure 3-8 shows the wiring connections for the isolator sensor base. All screw terminals accept
14 to 18-gauge AWG solid or stranded. Maximum torque should not exceed 12-inch-pounds.
CAUTION: Do not loop wire under terminals. Break wire runs to provide
supervision.



  
  













 

 
 
  




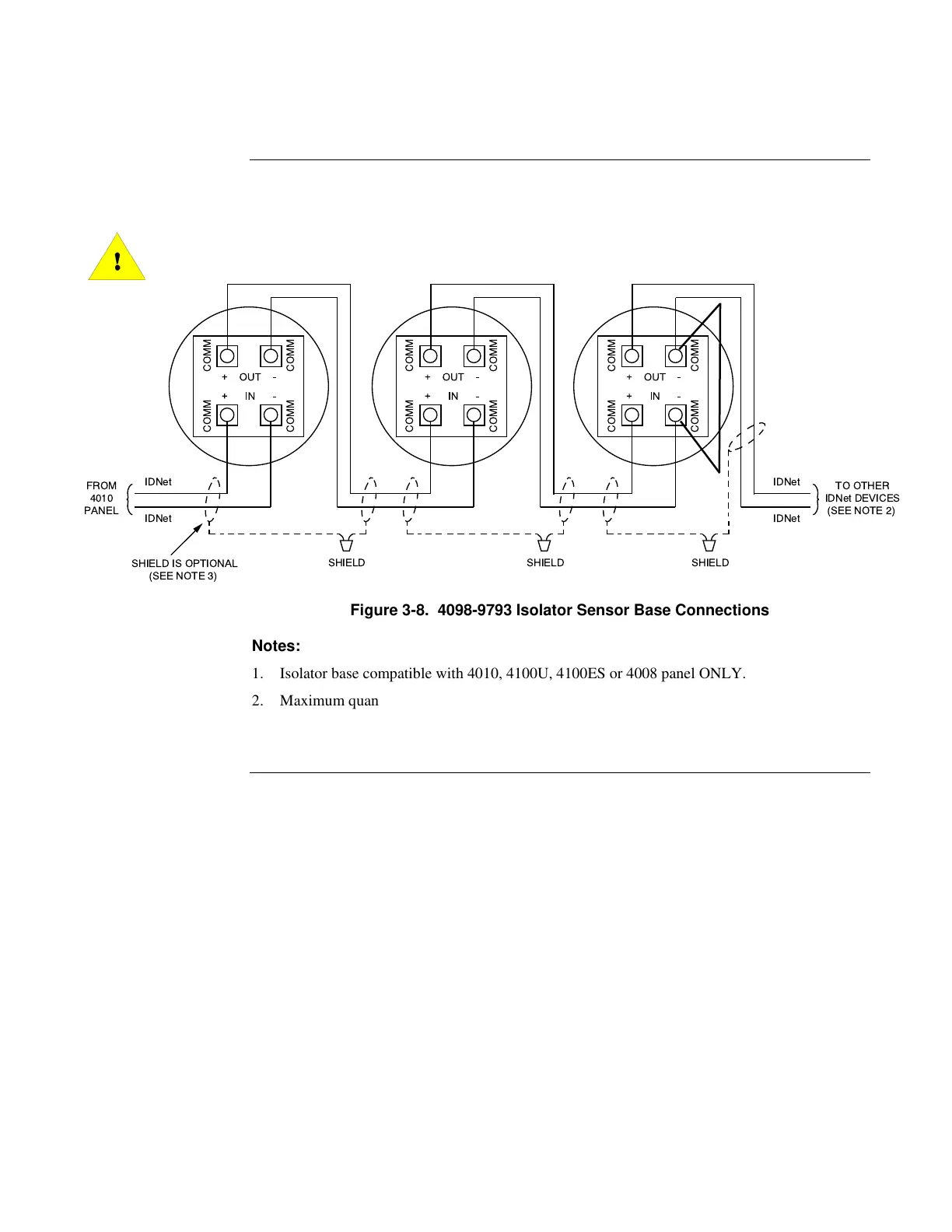

Figure 3-8. 4098-9793 Isolator Sensor Base Connections
Notes:
1. Isolator base compatible with 4010, 4100U, 4100ES or 4008 panel ONLY.
2. Maximum quantity of devices per circuit is 250 for 4010, 4100U and 4100ES panels.
3. If shield is used, twist shield wires together and cap with wire nut. Shield should be insulated
from electrical box.
4098 TrueAlarm Sensor Bases,
Continued
Wiring
