4-2
The 2098-9737 Relay module is used with 4098-9791 sensor base. Install the relay module using
Figure 3-7 and the figure below as a reference.
! "
#" !

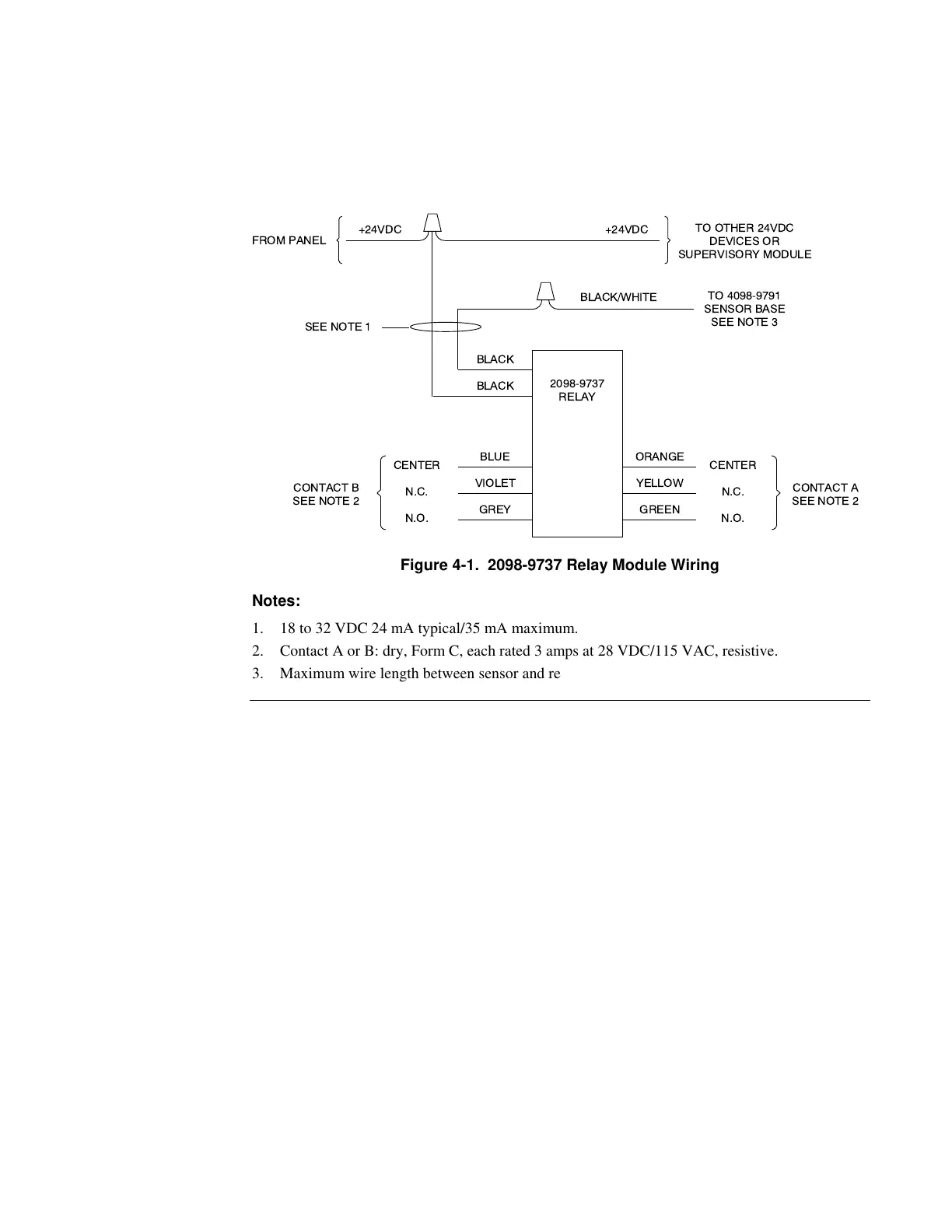

Figure 4-1. 2098-9737 Relay Module Wiring
Notes:
1. 18 to 32 VDC 24 mA typical/35 mA maximum.
2. Contact A or B: dry, Form C, each rated 3 amps at 28 VDC/115 VAC, resistive.
3. Maximum wire length between sensor and relay module is 100 feet.
Continued on next page
Relay Module Accessories
2098-9737
Relay Module Wiring
To Next Page
