4-4
Install the relay module using the following steps:
1. Mount a 1-1/2 inch (3.81 cm) extension ring (not supplied) to an octagonal or square
electrical box (not supplied). The extension ring is required to meet the minimum box
volume requirement (32.3 cu. inch/529.4 cu. cm) for relay module installation.
2. Mount relay module inside extension ring directly behind base and sensor. Do not mount
remotely. See Figure 4-1 or 4-2 for relay module connections.
Note: Use the exact configuration of electrical box (square or octagonal) with extension to
mount sensor base when installing the relay module.
The 2098-9808 Remote LED Module is available for the 4098-9789 ,-9791, -9794, -9795, -9796
Sensor Bases.

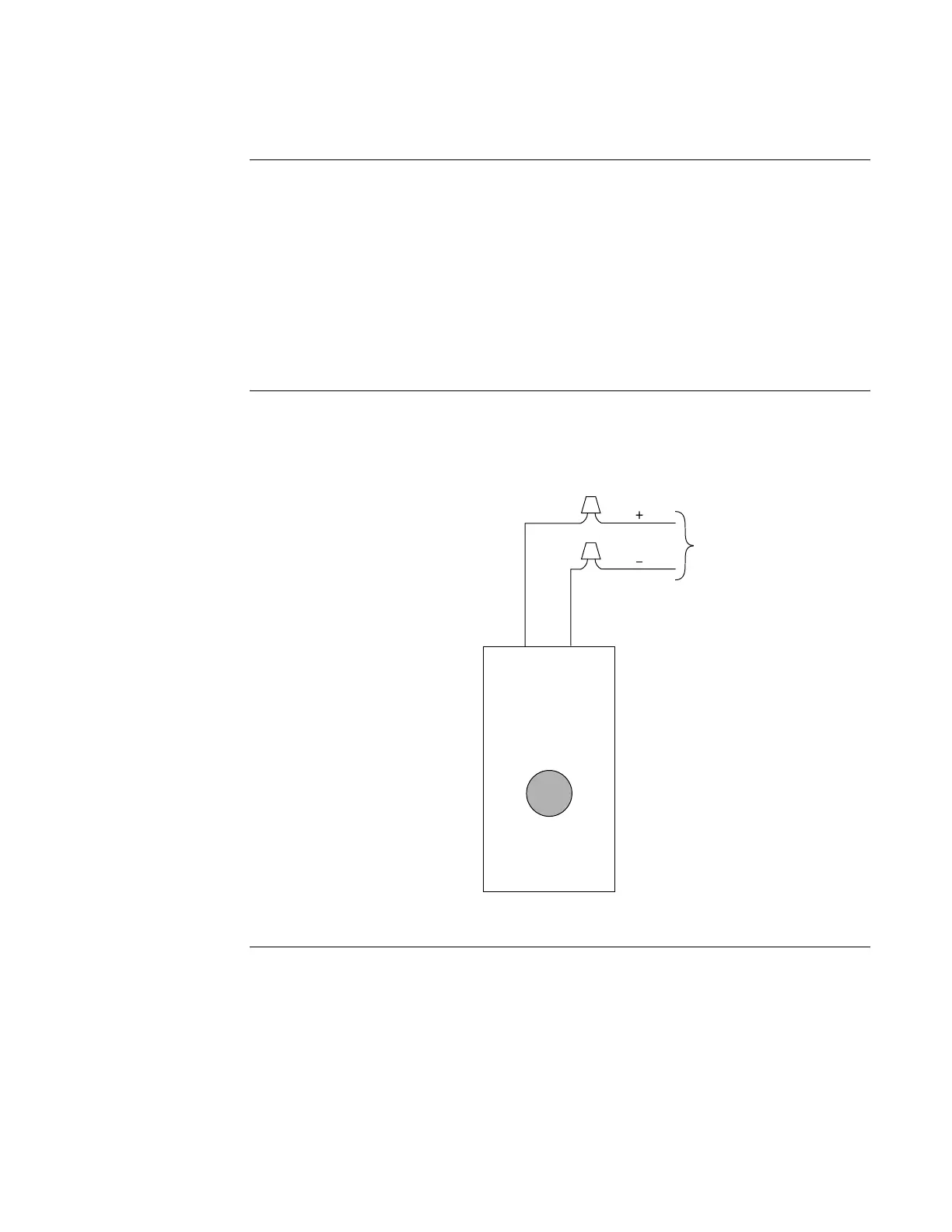

Use the figure below as a reference when installing the Remote LED Module to a sensor base.
RED BLACK
LED
2098-9808
Figure 4-3. 2098-9808 Remote LED Module Wiring
Relay Module Accessories,
Continued
Relay Module
Installation
Remote LED Module
To 4098-9789, -9791, -9794, -9795, -9796 Sensor Base
To Next Page
