Wiring the radar system | 23
The interconnection cable must be clumped at the copper tape at location 1.

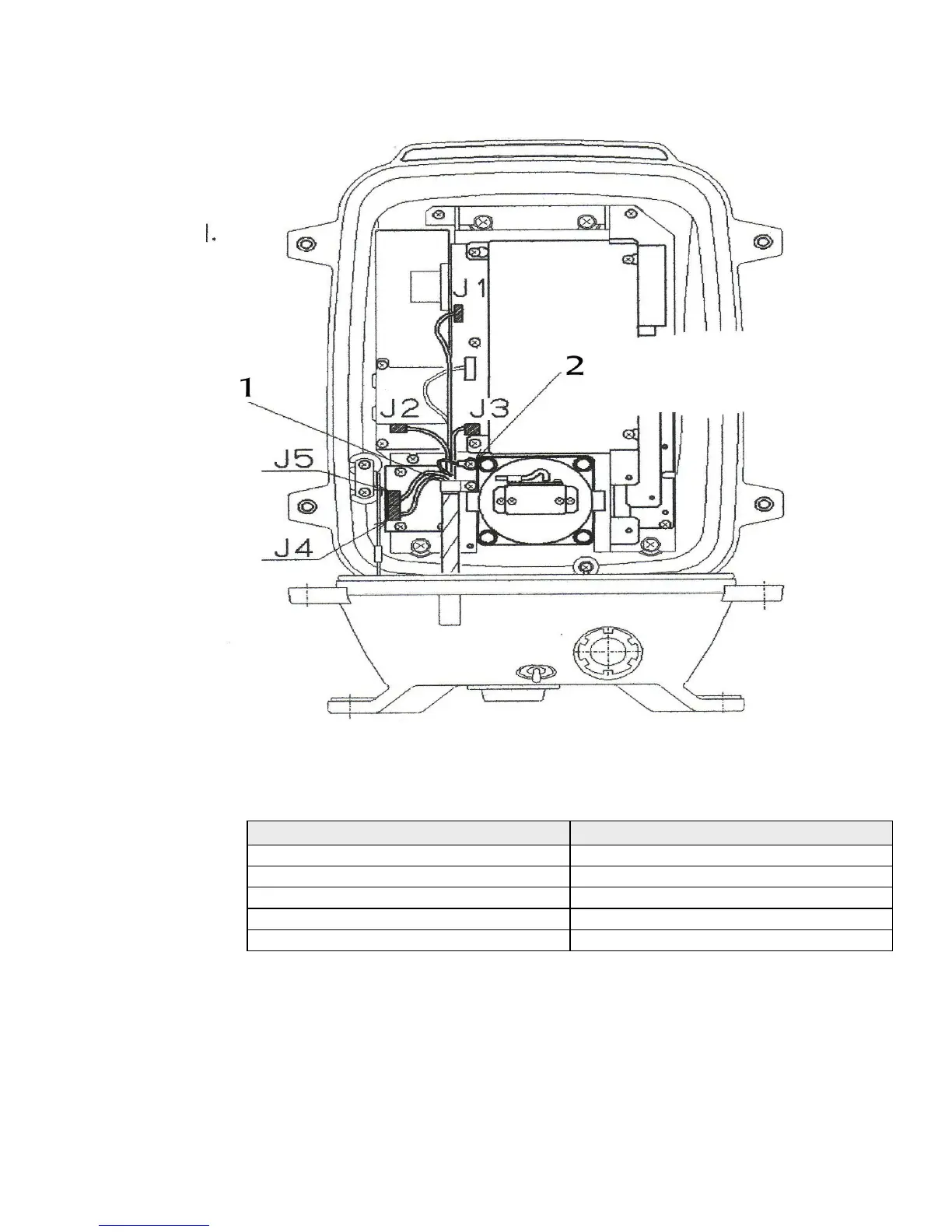

• Connect the five interconnection cable connectors (B, C, D, E, and F) to the J connectors
as follows:
Cable connector J connector
B (P2) J2
C (P1) J1
D (P3) J3
E (P4) J4
F (P5) J5
• Screw down the cable holders and clips to keep the interconnection cable in place inside
the scanner. Then spread silicon sealant around the bolts and the cable entry point.
