28 | Wiring the radar system
4.5 Earth the 10 kW scanner
The Earth bolt MUST be connected to the vessel's ground system.

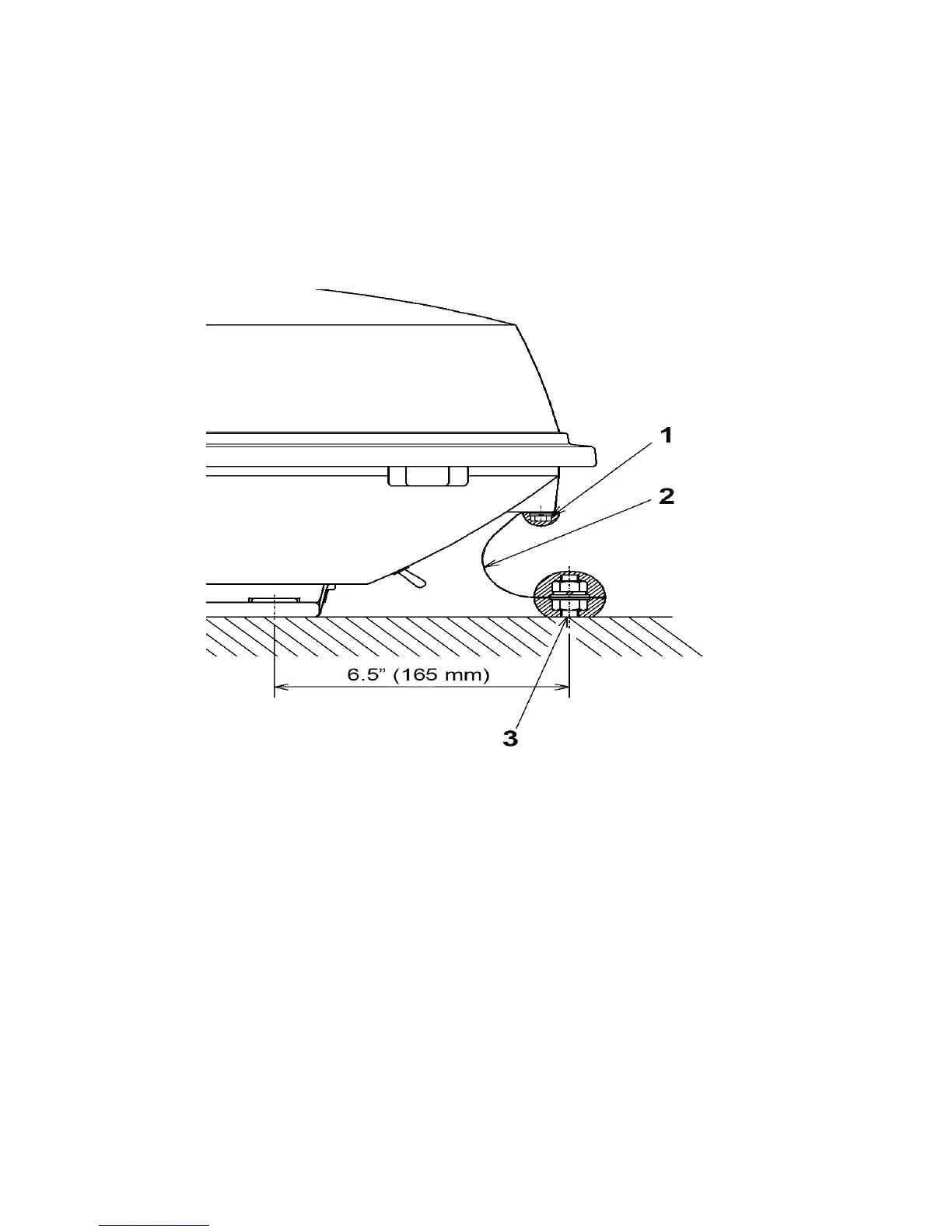

• Connect one end of the copper Earth strap (2) to the bolt (1) on the scanner.
• Connect the other end of the Earth strap to the mounting location using the Earth bolt
(3).
• Apply silicon sealant around both of the bolts.
