Wiring the radar system | 25

4.4 Radar scanner 25 kW: Connect interconnection cable

(AA010093/AA010094) to the scanner

• Unscrew and lift away the hinged cover of the scanner.

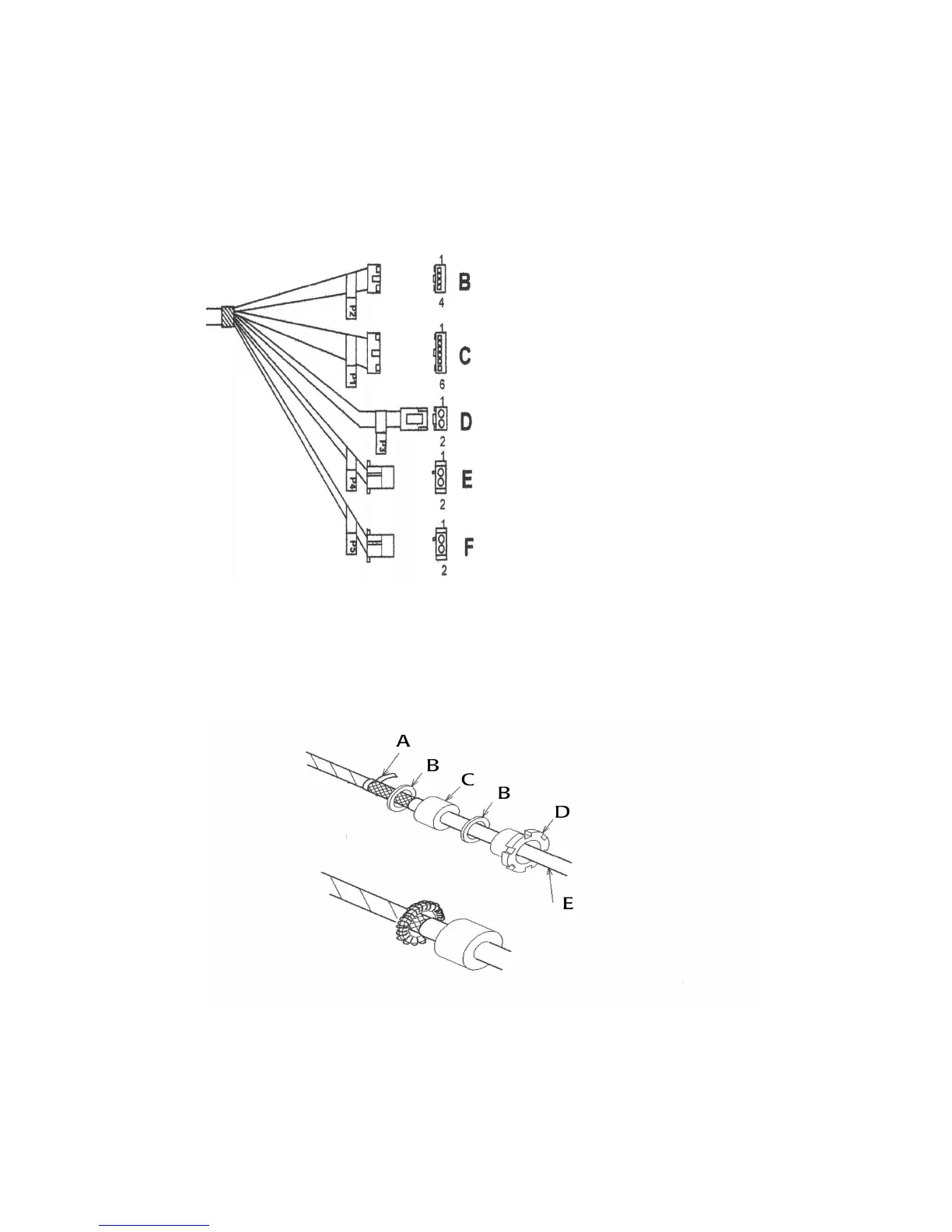

• Identify the connectors B, C, D, E, and F at the end of the interconnection cable.

• Push the cable gland (D), a plain washer (B), the gasket (C) and another plain washer (B)

over the connector end of the interconnection cable (E) in the order shown. Push the

interconnection cable through the cable inlet into the scanner.

• Tear away the tape (A) then unravel the shield mesh and wrap this around the washer as

shown.
