Connect Simrad GB40 or Northstar 8000i | 39

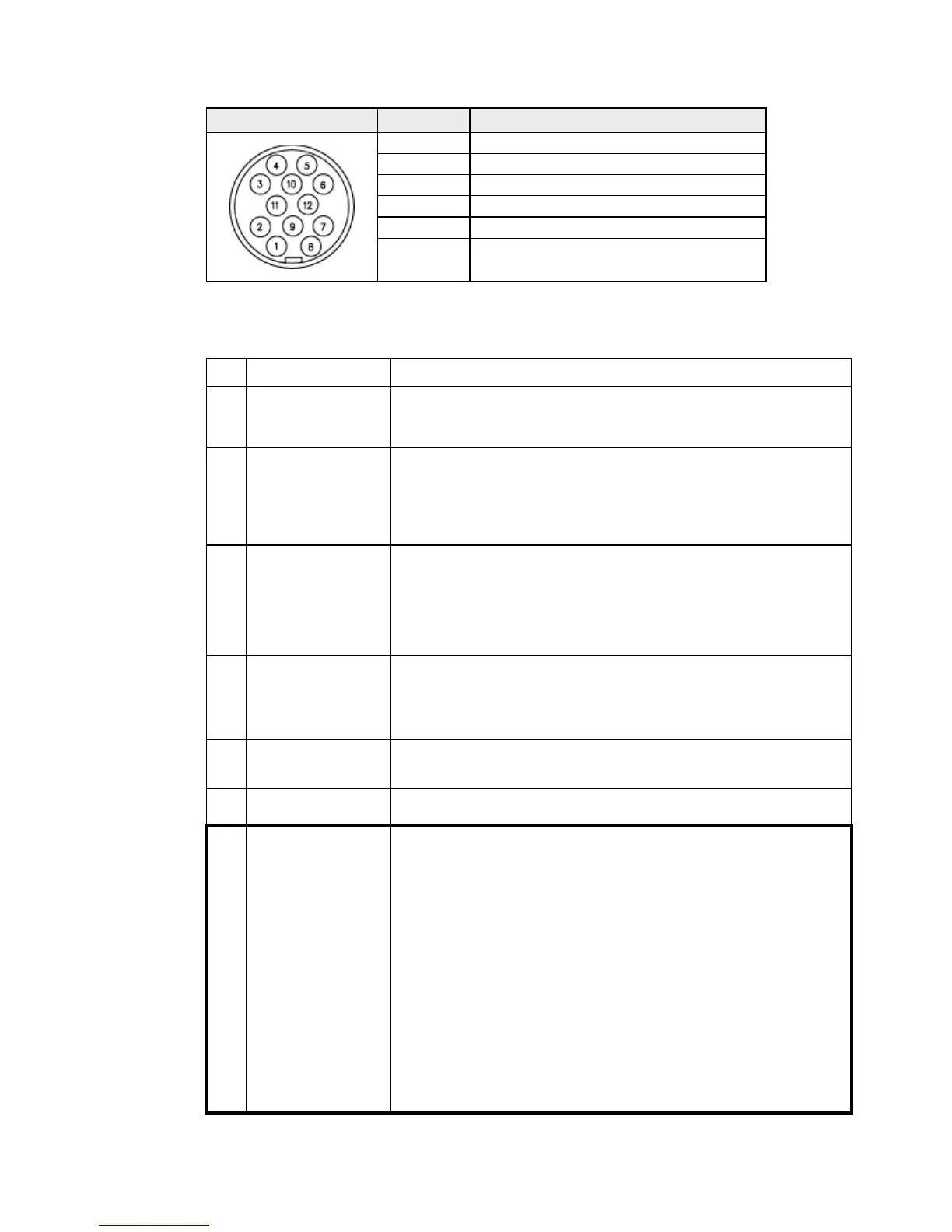

Pin Function
3 NMEA TX+ data
4 NMEA Ground
5 NMEA Rx-data
6 NMEA RX+ data
9 Shield
11 12 V Compass power (100 mA max)
It is recommended that a single compass data source is used for a 8000i network.
Key Part No. Description
A 6 kW AA010026
10 kW AA010027
25 kW AA010028
Radar Scanner (6 kW, 10 kW or 25 kW). (Comes with a 20 m (65.5 ft) This
cable will need to be attached to the scanner. The cable from Scanner
connects to Radar Processor box.
B 6kW AA010092
10kW & 25kW
AA010093
Scanner Cable20 m (65.5 ft) scanner cable. Will require disassembly of
scanner to connect this cable. Cable has a radar processor connector on one
end, and small terminated flat connectors on the other.
CAUTION: This cable should only be installed by an experienced radar
service technician!
C 6 kW AA010014
10 kW AA010015
25 kW AA010016
Radar processor box. No cables supplied. Connects to GB40 / 8000i system
via Ethernet.
The radar box requires heading @ 10 Hz. For vessels using NMEA 0183,
order cable AA010070 to connect to a suitable heading sensor.
6 kW system is 12 or 24 V DC. 10 kw and 25 kW is 24 V DC ONLY.
Power connects to the two screw terminals.
D 24006694 AT10HD SimNet to NMEA 0183 converter converts SimNet heading to 0183
@ 10 Hz to allow for accurate MARPA and overlay.
Has two SimNet ports to sit on SimNet Bus and a 2 m (6 ft) cable
terminating with 12 pin female connector. This plugs into socket labeled
NMEA / COMMS on the radar processor box.
D1
AA010070 Utility cable 2 m (6 ft) with 12 pin female connector on one end and 12 bare
wires on the other. This plugs into socket labeled Utility on the 8000i or
GB40 Master NavComputer. This cable is shipped with each NavComputer.
D2 AA010070 Same cable as D1 but needs to be ordered separately. Connects to the
radar processor labeled NMEA /COMMS.
E
Ethernet cables: All ethernet cables need to be ordered. They are not
supplied with any product. They are available in four lengths as well as self
terminating bulk rolls
AA010079 Ethernet cable 0.5 m (1.6 ft) male / male connectors
AA010080 Ethernet cable 2 m (6.5 ft) male / male connectors
AA010081 Ethernet cable 5 m (16.5 ft) male / male connectors
AA010082 Ethernet cable 10 m (30 ft) male / male connectors
AA010083 Ethernet cable joiner 0.5 m (1.6 ft) female / female
NS004817 Ethernet cable bulk roll 100 m (328 ft) un-terminated
NS004818 Ethernet cable bulk roll 300 m (985 ft) un-terminated
AA010085 Ethernet connector. Field terminating ethernet connector for bulk ethernet
cable
