Simrad AC12 User Manual

Installation | 29
AP24 AP28
GS10
IS20 Compass
IS20 Graphic
Termination
plug
Wind
transducer *
Multi-
joiner
Multijoiner
Compass
5,5 m
2
0
m
/
3
0
m
/
4
0
m
5,5 m
5,5 m
5,5 m
5,5 m
Depth
Speed/Temp
RS82
WR20
WB20
RS82
Black box
GB40
GB40 NavComputer
OP30
24
AP
MODE
MENU
AUTO
STBY
TURN
1010
PWR
1
1
RF25 Rudder Feedback
12V SimNet supply
(Cable without terminator)
AC12/AC42
Non SimNet
SimNet backbone
SimNet drop cable
SIMRAD R S82
WR20

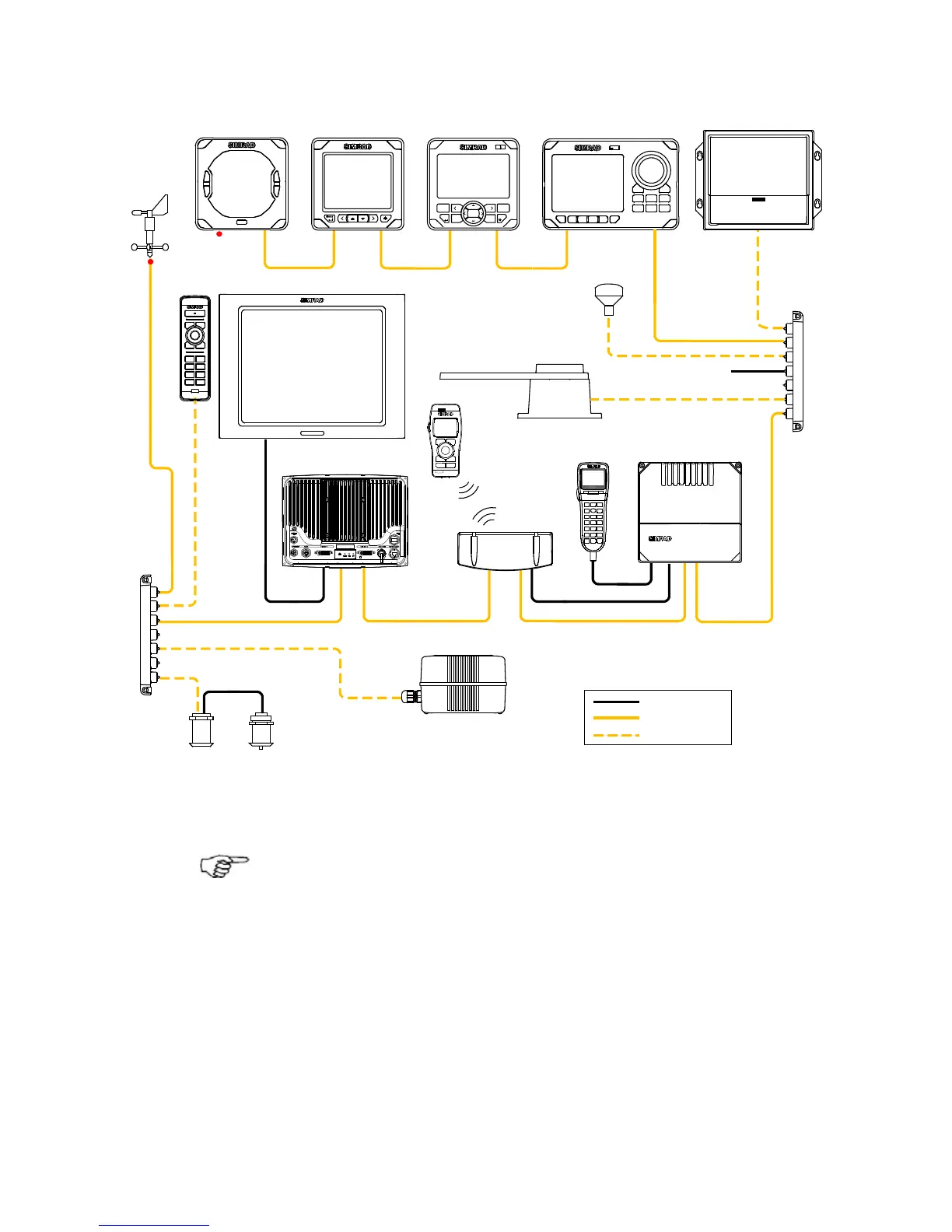

Figure 2-22 SimNet network, expanded system
1. Maximum total length of SimNet cables is 150 m
(500 ft.)
2. Drop cables must not exceed 6 m (19 ft) of length
and the total length of drop cables must not exceed
60 m (200 ft).
3. Equipment should not be daisy-chained in a drop
cable.
4. The wind transducer (*) has a built in terminator.
