CR34/44/54 Radar menu Chapter 3-9
3.2.1 Shortcut to the pages in the radar-series
The RADAR function is one of the main functions in the CRXX.
Each page under the [RADAR] key will include a window represent-
ing the radar function. It is not possible to exchange main function
displays with a new display. Refer to section 2.1, 2.1.1 and 2.1.2 for
further information on the display and page system.
From any display:
RADAR
Long press on the [RADAR] key will toggle between:

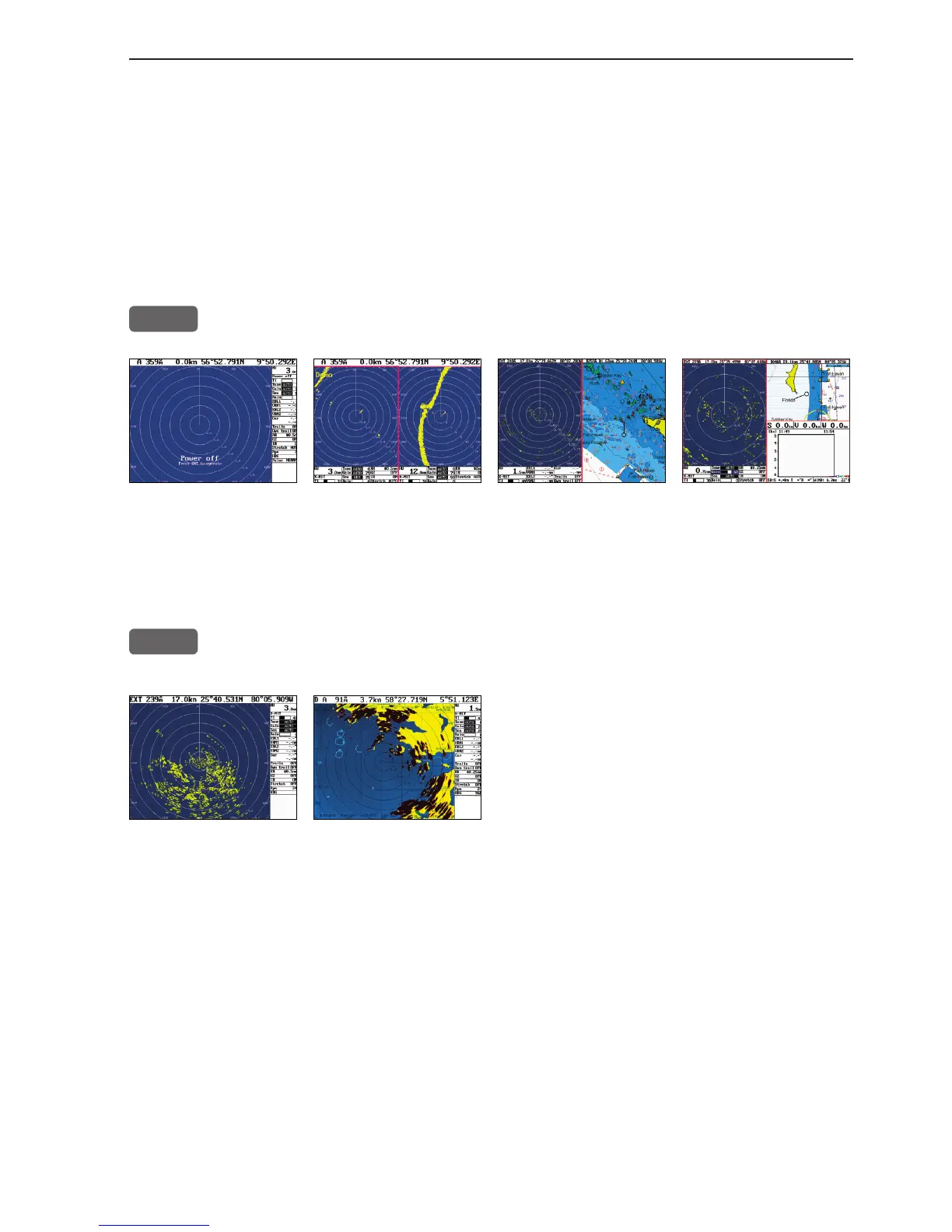

Radar full screen Dual Radar Radar & Chart Custom screen
All the displays are fixed, except for the two quarter windows in the custom
screen, which can be exchanged with a different display selected via the menu.
From radar display:
RADAR
Short press on the [RADAR] key will toggle overlay on/off
- see section 3.2.6.
Radar display RadarChart overlay
3.2.2 Initial radar display setup
After the installation is completed, check the Radar setup (section
9.1) if the Antenna height is correct and the Heading adjust is
zero degrees to ship’s center line. If not, carry out adjustments as
described in the Radar setup. The Scanner type is preset to Auto
detect and as such, the system will automatically initiate the correct
parameters for the connected scanner.
