Simrad GO7 Getting Started

Recording log data

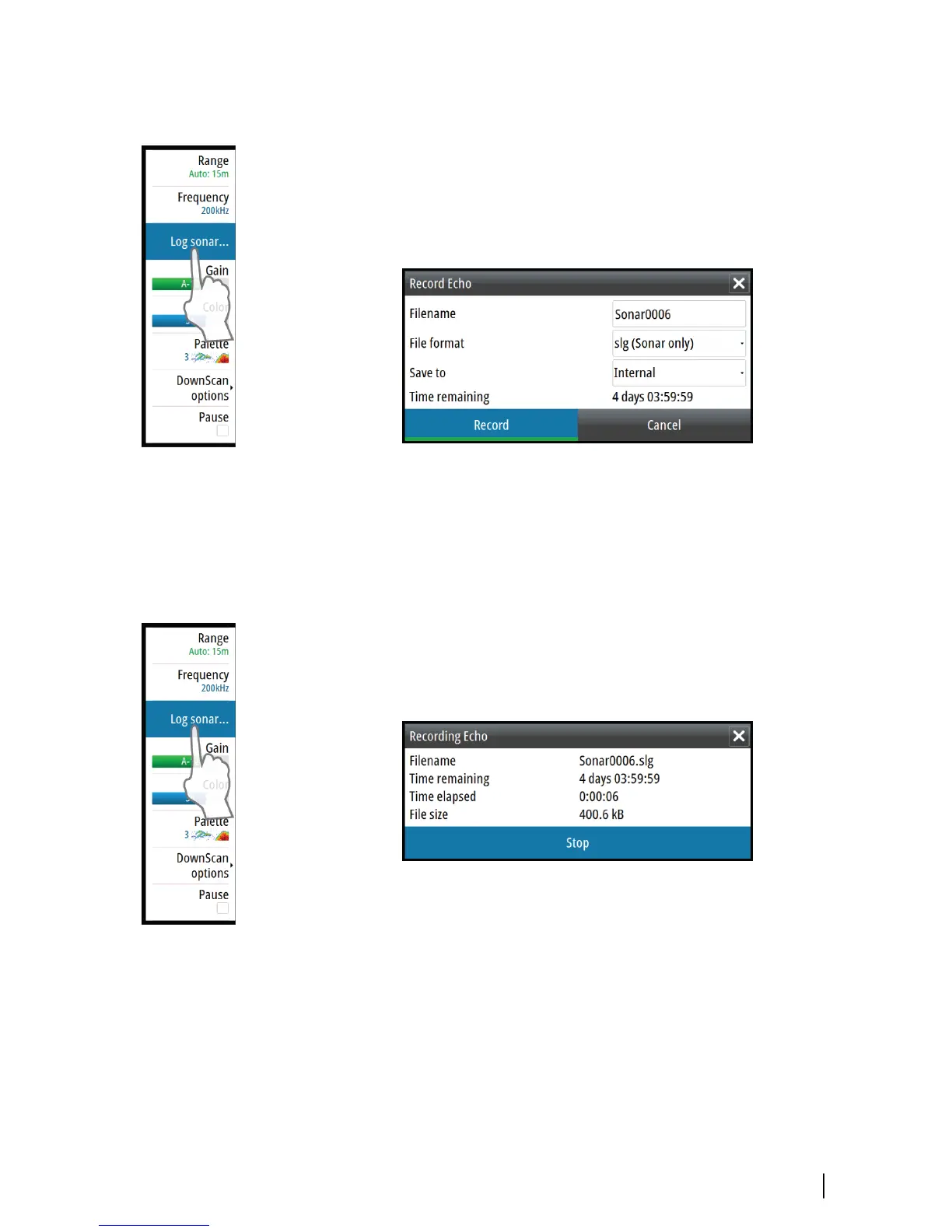

You can record data and save the file internally in the unit, or save it
onto a card inserted into the unit's card reader. Select the Log sonar
menu option, and then Record in the Record Echo dialog.
When the Echosounder data is being recorded, there is a flashing
red symbol in the top left corner and a message appears
periodically at the bottom of the screen.
Stop recording log data
Select the Log sonar menu option, and then Stop in the Recording
Echo dialog to stop the recording of Echosounder data.
Echosounder | GO7 Getting Started
29

Simrad GO7 Specifications

General

Resolution	800 x 480 pixels
Touchscreen	Yes
Networking	NMEA 2000
Bluetooth	Yes
Chartplotter	Yes
Display Size	7 inch
GPS Type	Internal
Wireless Connectivity	Wi-Fi
Chart Compatibility	C-MAP, Navionics
Display Type	TFT LCD
SD Card Slots	1
Sonar Compatibility	CHIRP
Radar Compatibility	Yes
Operating Temperature	-15°C to 55°C
Sonar	Broadband, CHIRP, DownScan, SideScan (with compatible transducer)
