Simrad GO7 Getting Started

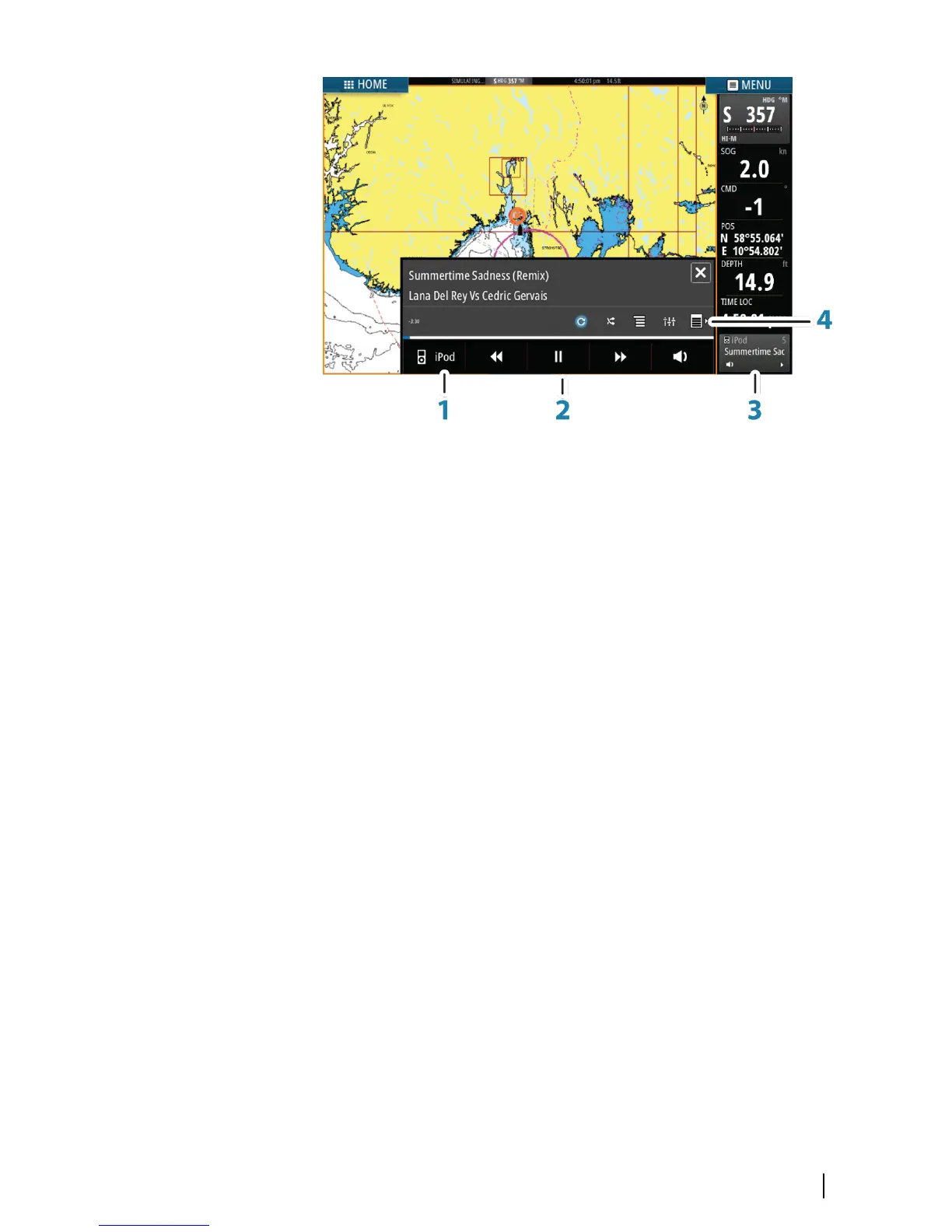

1 Audio source
2 Audio control buttons
3 Audio tile
4 Audio tools
Operating the audio system
1. Select the Audio tile in the Instrument bar to activate the Audio
overlay.
2. Select the options icon and then select the audio server.
3. Select the source icon and then select the audio source.
- Number of sources depends on the active audio server.
4. Use the panel buttons to control your audio system.
For available options, refer to the documentation following your
audio equipment.
Audio | GO7 Getting Started
35

Simrad GO7 Specifications

General

Resolution	800 x 480 pixels
Touchscreen	Yes
Networking	NMEA 2000
Bluetooth	Yes
Chartplotter	Yes
Display Size	7 inch
GPS Type	Internal
Wireless Connectivity	Wi-Fi
Chart Compatibility	C-MAP, Navionics
Display Type	TFT LCD
SD Card Slots	1
Sonar Compatibility	CHIRP
Radar Compatibility	Yes
Operating Temperature	-15°C to 55°C
Sonar	Broadband, CHIRP, DownScan, SideScan (with compatible transducer)
