Simrad NAC-2 User Manual

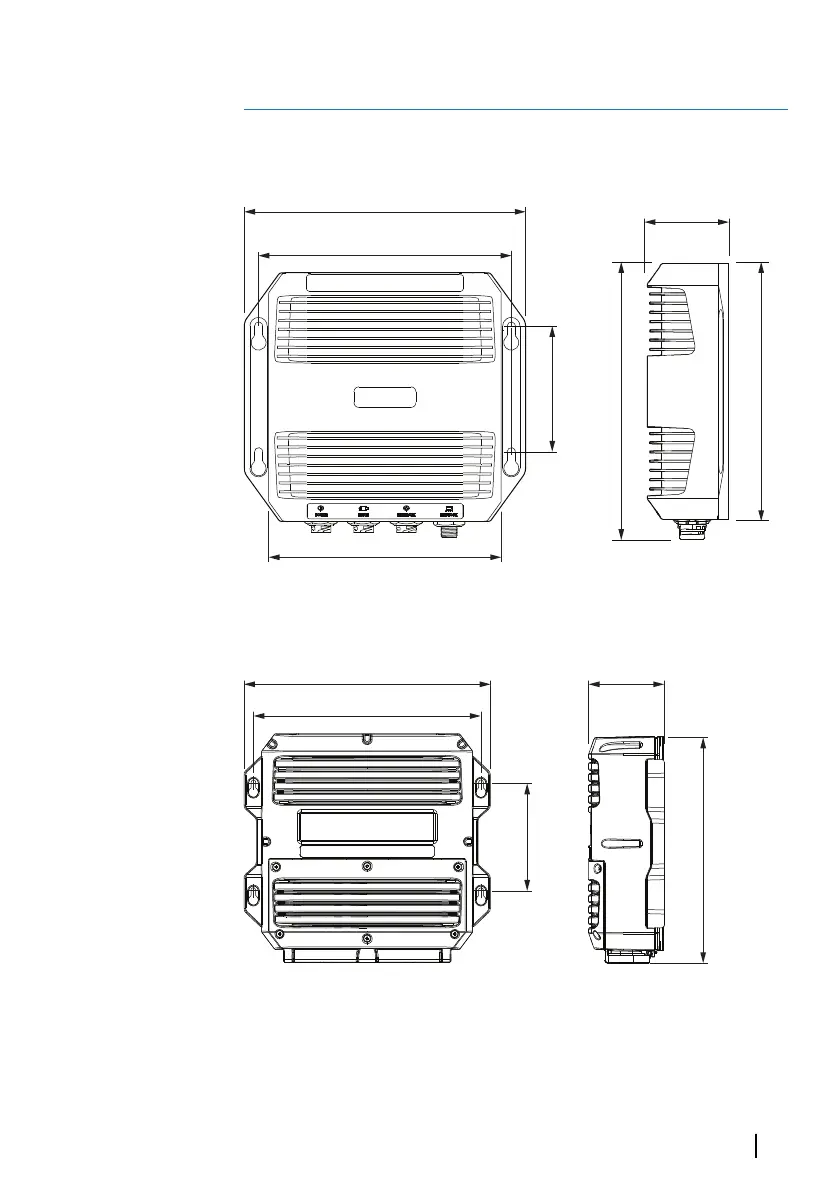

Dimensional drawings
NAC-2
204.0 mm (8.1”)
183.0 mm (7.2”)
57.0 mm (2.2”)
180.0 mm (7.1”)
190.0 mm (7.5”)
169.0 mm (6.63”)
91.0 mm (3.6”)
NAC-3
211.0 mm (8.31”)
195.0 mm (7.68”)
65.5 mm (2.58”)
92.0 mm (3.62”)
196.0 mm (7.72”)
8
Dimensional drawings | NAC-2/NAC-3 Commissioning Manual
37

Simrad NAC-2 Specifications

General

Brand	Simrad
Model	NAC-2
Category	Autopilot System
Language	English
