Overview | 7
1 Overview

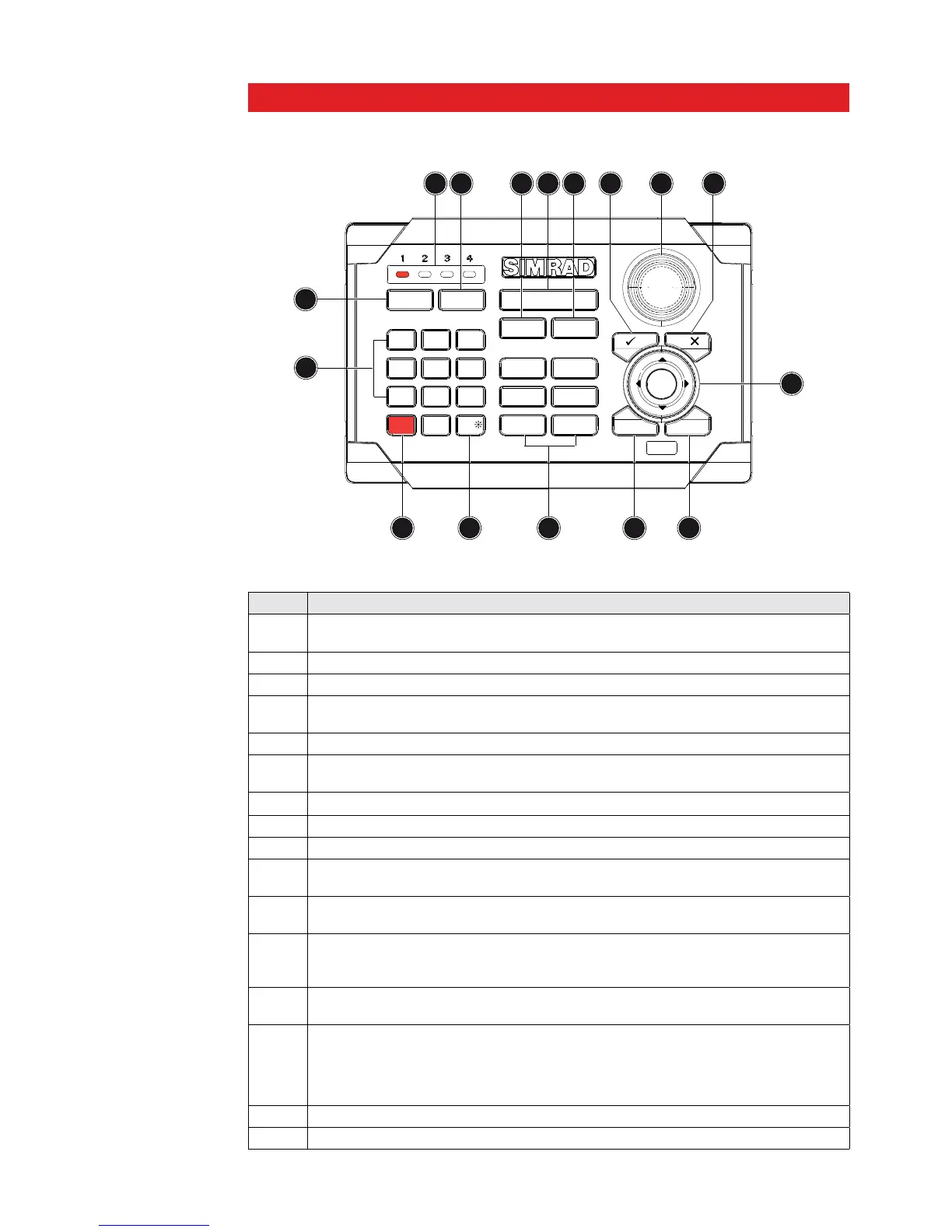

OP40 Controller
MARK
VESSEL
STBY
AUTO
PWR
MOB
PLOT GO TO
MENU WIN
1
3
6
7
PQRS
8
TUV
9
WXYZ
MNO
5
JKL
2
ABC DEF
GHI
4
0
STBY
AUTO
OUT
IN
RADARCHART
ECHO NAV
INFO PAGES
DISPLAY
2 3 54 6 7 8
10
1112131415
16
9
1
Key Description
1
MOB (Man Overboard). A long press will position a Man Over Board (MOB)
waypoint at the vessel’s current position
2 Display Under Command LEDs. Indicates which display the OP40 is controlling.
3 DISPLAY: Change which display the OP40 is controlling
4
PLOT/MARK key. A short press activates the Plot menu, a long press positions
a waypoint at the vessel position
5 Zoom IN zoom OUT buttons for radar, echosounder and chart pages
6
GOTO/VESSEL key. A short press activates the Goto menu, a long press
centers the chart to vessel position
7
3
8 Rotary knob. The function of the knob is depending on active context
9 X key cancels changes and returns to previous menu level
10
Cursor keypad used to move the cursor on the display, and to maneuver in the
menu system
11
WIN key, used on multiple panels pages. A short press toggles between the
panels, a long press expands active panel to a full page panel and back again
12
MENU key. Used to display the context menu for the active panel/overlay, and
for selecting options in edit mode. 2 x MENU for accessing system settings
menu
13
Direct Access Keys (DAK). Provide direct access to a page. Repeated presses
of each DAK cycles through several different pages that relate to the DAK
14
Long press (two seconds) used to turn on active Processor/Display
Short press during operation used to bring up the active displays power
control and brightness dialog (and Radar STBY if applicable)
15 STBY AUTO: Autopilot Auto steer / Stand-By
16 Alpha numeric keypad used for entering numbers and text in dialog boxes
