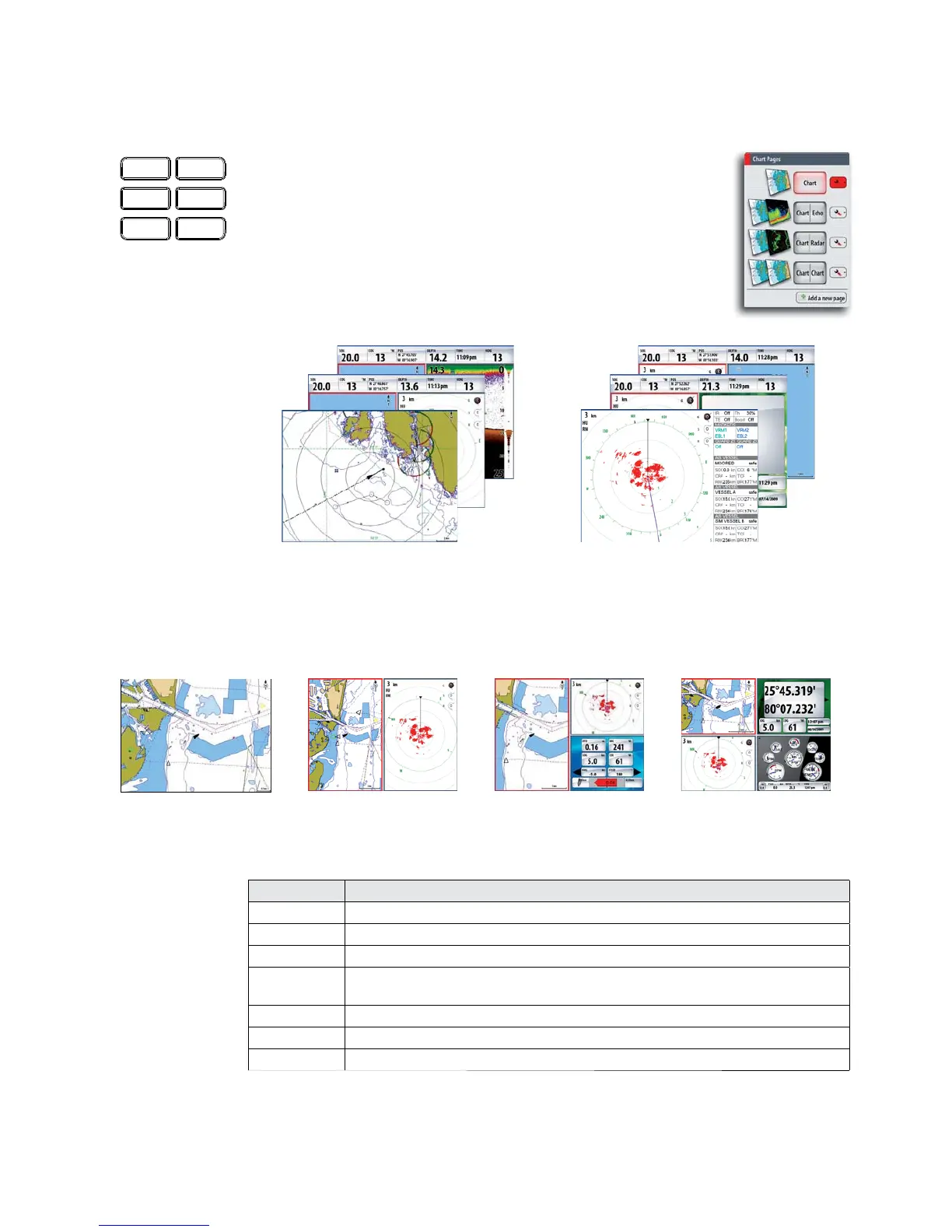

8 | System overview
The NSO screen structure
Pages and page groups
The NSO screen is comprised of page groups, accessed by pressing
one of the Direct Access Keys (DAK). A single press will open the page
previously viewed from this DAK. A second press will give the page
group and edit options. Repeated press will toggle through the pages
available.
Each page group (except the Pages panel) may include 5 pages. The
first page in a page group will always be a full screen panel.
The system comes pre-configured with some commonly used pages,
and you can also define your own pages. Refer the Customizing your
system section.
Chart page group example Radar page group example
Panels
Each application connected to the NSO system is presented on panels, and you can have
up to 4 panels per page.
1-panel page 2-panels page 3-panels page 4-panels page
The following panels are available:
Panel Description
Chart Marine chart. Can be displayed as 2D or 3D (Navionics charts)
Radar Radar PPI (Position Plan Indicator)
Echo Echosounder
Instruments
Shown as digits analog/linear gauges
Steer Navigation information
Video Live video
Position GPS Position, SOG/COG and time
RADARCHART
ECHO NAV
INFO PAGES
