Using echosounder | 53

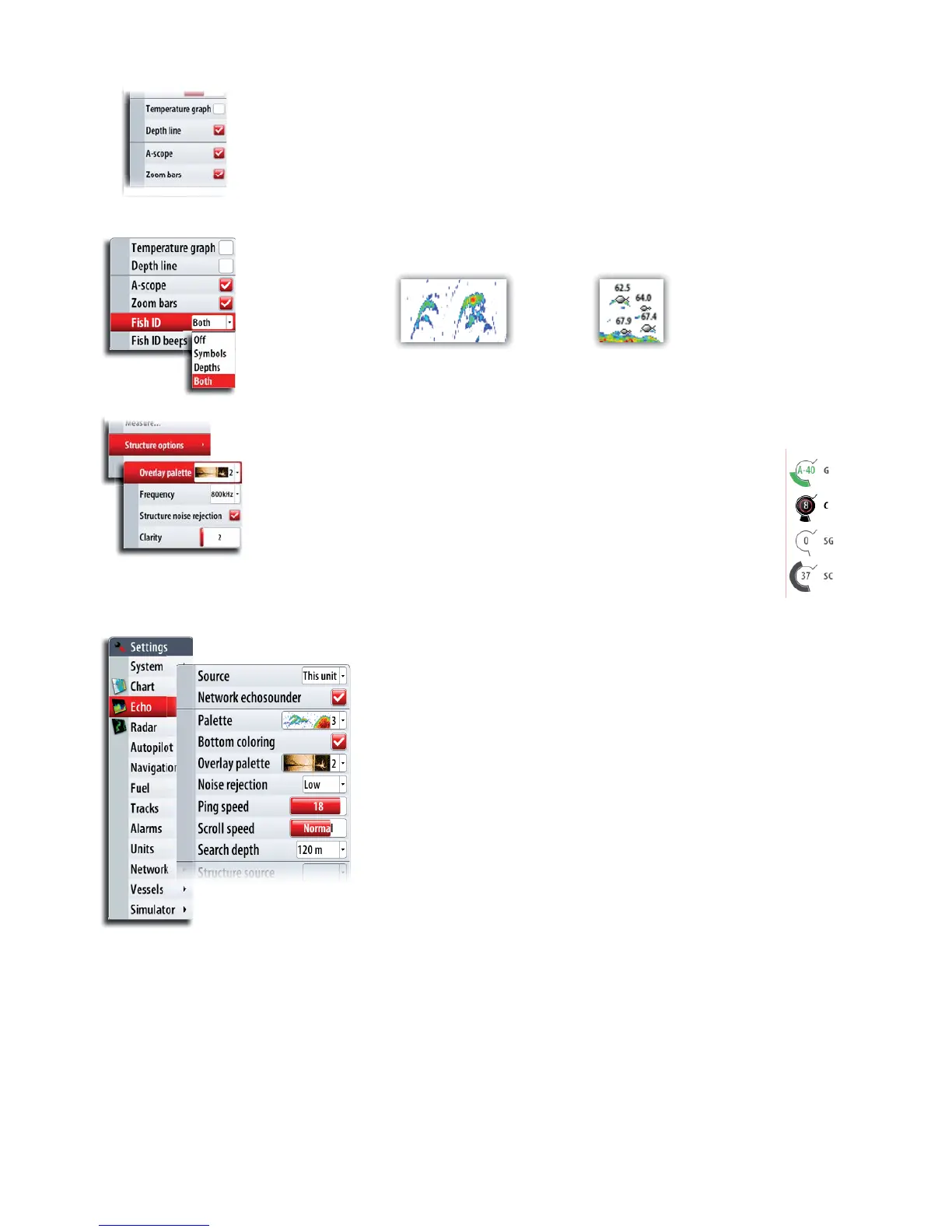

Optional echosounder image items
Echosounder images can be turned on/off individually. Refer graphics on page 4.
You can select how you want the echoes to appear on the echosounder image.
TRADITIONAL
FISH ECHOES
FISH SYMBOLS AND
DEPTH INDICATION
StructureScan™ overlay
When a StructureScan unit is connected to your NSO system, you can
overlay a DownScan image on the regular echo image.
When activated as described below, the echosounder menu will expand to
include basic StructureScan options.
Gain for both images can be adjusted as described on “Adjusting color and
gain settings”.
For more information about StructureScan, see “StructureScan™”, chapter 9.
The Echosounder settings panel
The echosounder source
If you have more than one echosounder on your network, you can select which sounder
to be the preferred source on this NSO unit.
Network echosounder
You can share the echosounder connected to this NSO unit on the network
For more information about how to setup echosounders, refer to the separate NSO
Installation manual.
The ping speed
The Ping Speed controls the rate the transducer transmits into the water. A high ping
speed will make the image move fast on the screen, while a low ping speed will present
a longer history on the screen. The reverberation potentially caused by too high ping
