Wiring | NSS evo2 Installation Manual
+
_

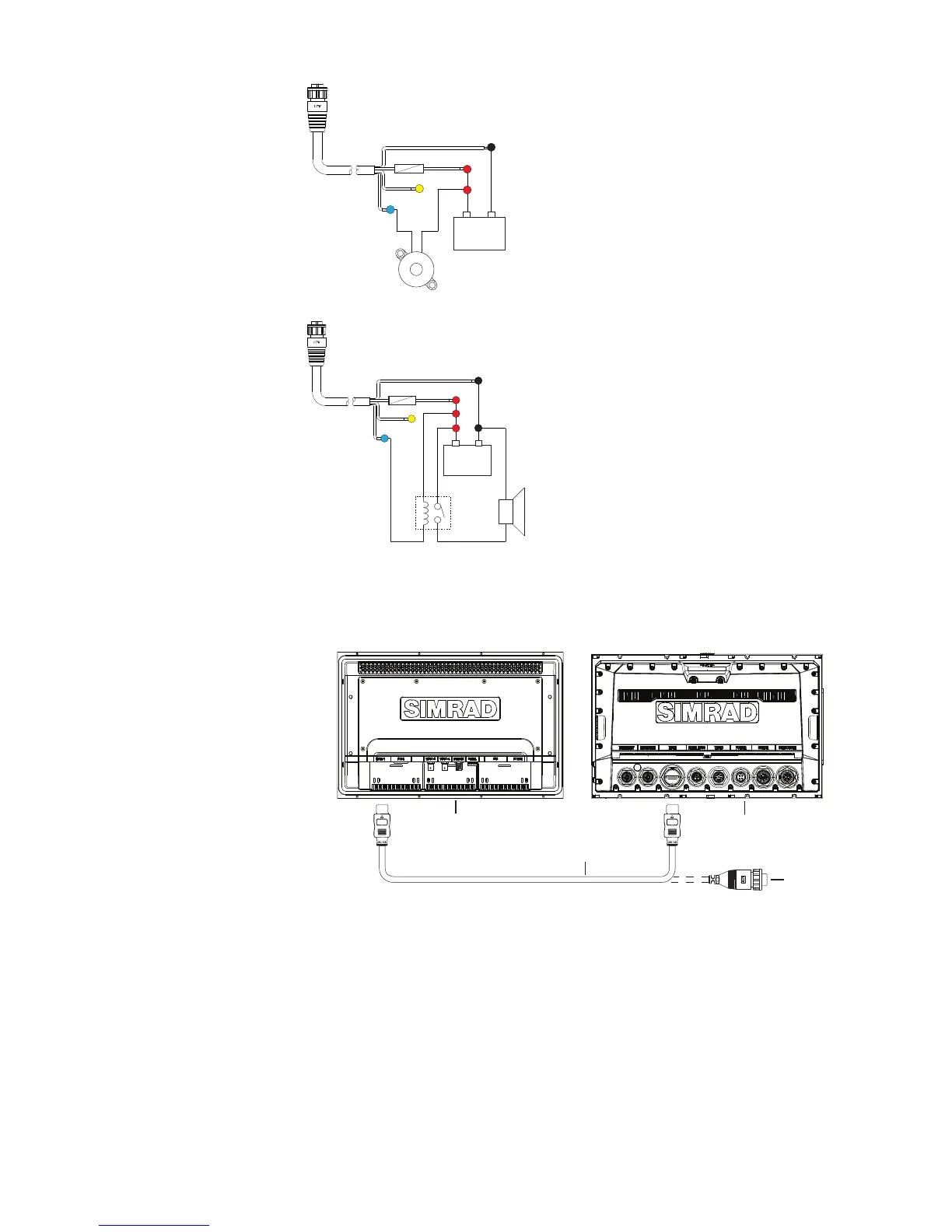

For sirens that draw more than 1 Amp, use a relay
+
_
Connect an external monitor
The NSS12-evo2 and NSS16-evo2 both offer an HDMI output which can be connected to
an external monitor to replicate video at a remote location. Video is output at the units own
native resolution, so connected monitor should support same resolution or be able to scale.
1
3
2
4
1 MO series monitor
2 HDMI cable
3 NSS12/16 evo2
4 HDMI cable - waterproof connector (use in exposed installations)
¼ Note: While the HDMI standard does not state maximum cable length, signal may be com-
promised on long runs. Only use Navico or other high quality HDMI certified cables. 3rd party
cables should be tested before installation. On runs over 10m it may be required to add an
HDMI amplifier or use HDMI-CAT6 adaptors.
¼ Note: some HDMI TV displays may apply over-scan, which will in effect crop the image pos-
sibly causing loss of important content. Check the display manual for an option to disable
overscan or adjust scaling.
