Simrad NSS evo2 series - Rear - Connections

| 3
NSS evo2 overview | NSS evo2 Installation Manual

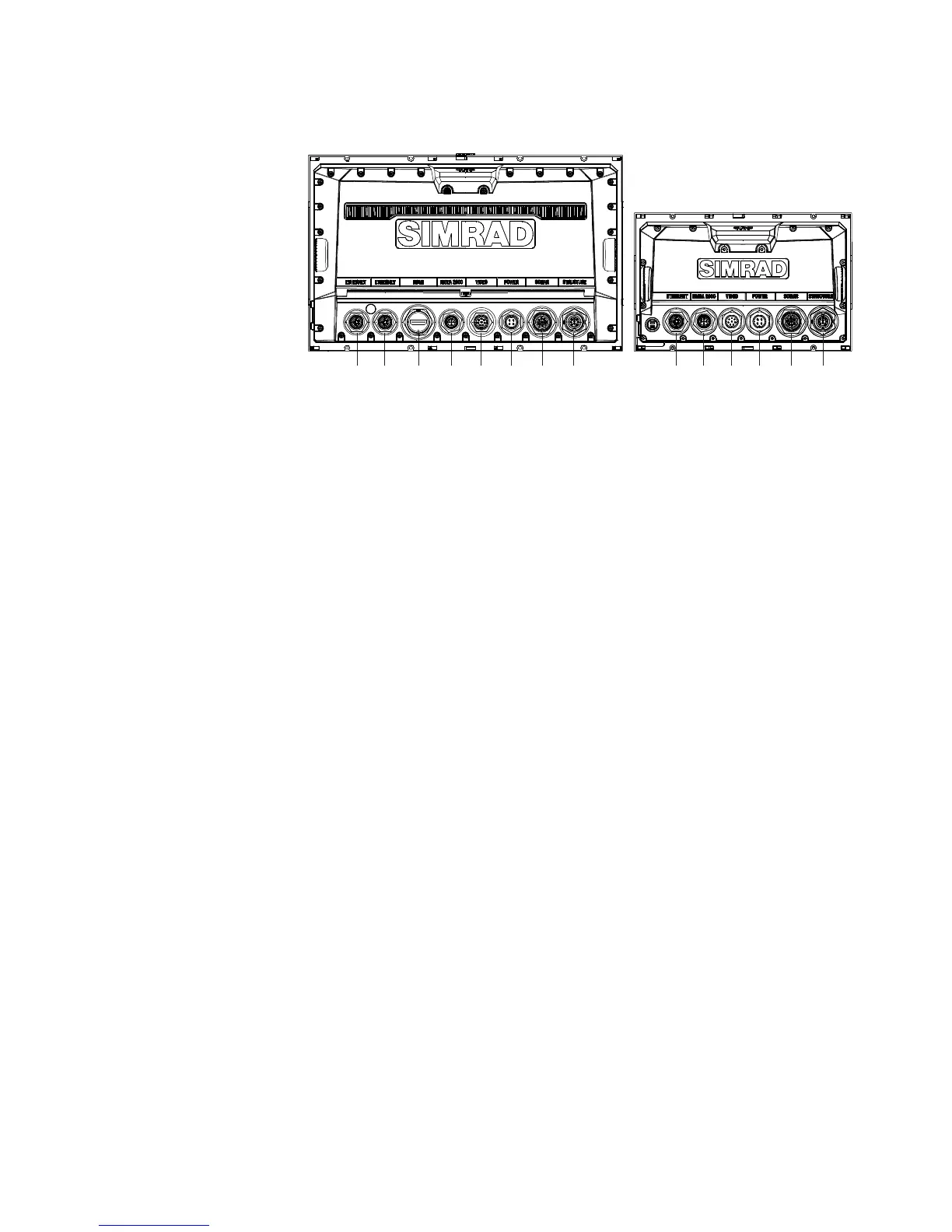

Rear - connections
6 75
31
4
5 64
21
3
7
1
NSS evo2 12/16
NSS evo2 7/9
1 Ethernet - connection to high bandwidth network modules
2 HDMI - video output for external monitor
3 NMEA 2000 - dynamic data and user database sharing
4 Video - input for video sources such as cameras
5 Power - 12 V or 24 V supply input
6 Sonar - chirp and conventional sonar (blank on ‘M’ models)
7 Structure - side and down scanning sonar (blank on ‘M’ models)
