| 17
Wiring | NSS evo2 Installation Manual
multiple receivers (Listeners). The number of receivers is finite, and depends largely on the
receiving hardware. Typically driving three devices is possible.

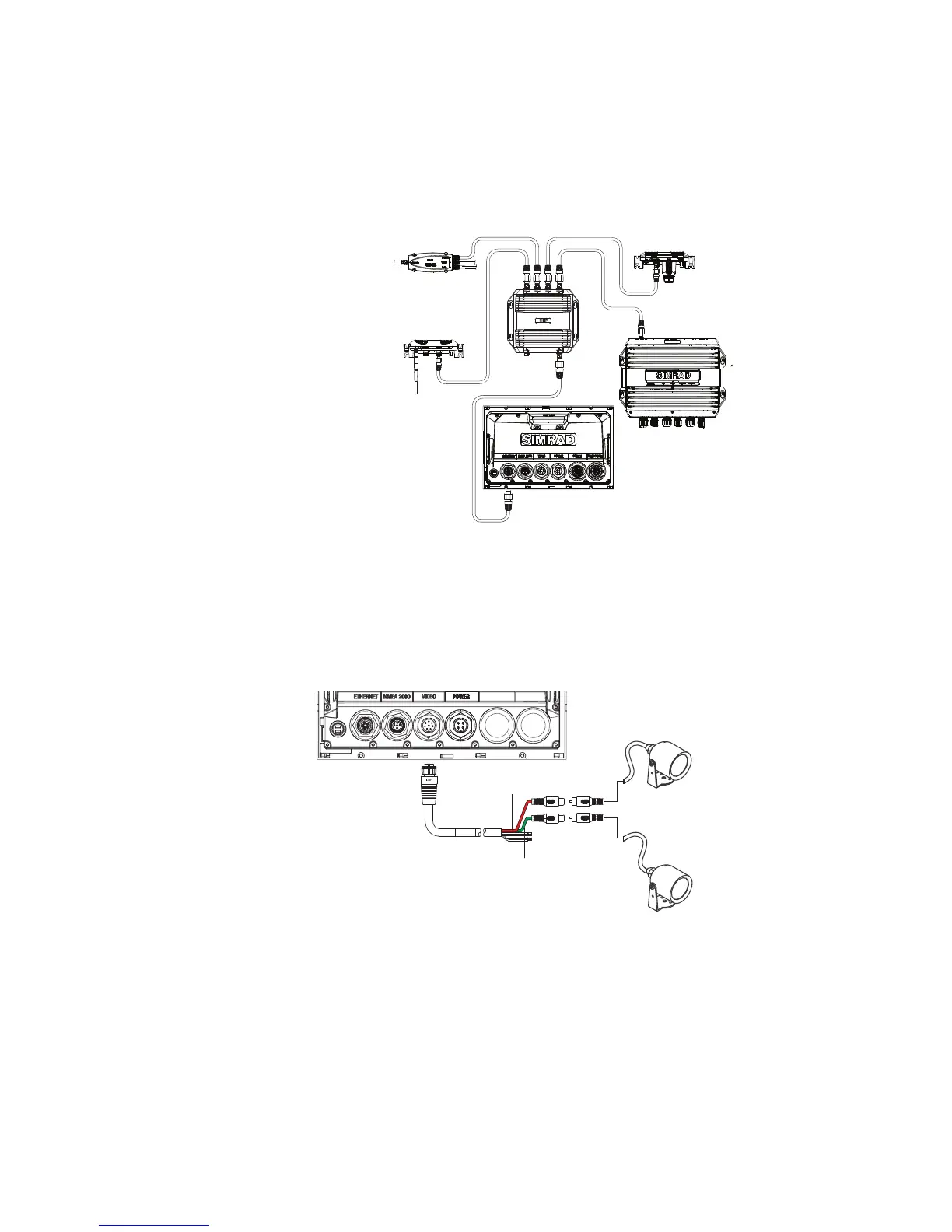

Ethernet device connection
Ethernet is used to interconnect high bandwidth devices such as radar, sonar, and other multi
function displays. The NSS7/9 evo2 have one ethernet port, whereas the NSS12/16 evo2 have
two. Connection of network devices can be made directly, or via a NEP-2 ethernet expansion
port. Additional NEP-2s can be added to provide required number of ports.
¼ Note: some ethernet devices are equiped with two or more ethernet ports, which allow con-
nection of additional devices, and may eliminate the need for an extra NEP-2.
Video in
Each NSS evo2 can be connected to two composite video sources, and display video images
on its display. Both NTSC and PAL formats are supported. The NSS evo2 video input cable is
fitted with female RCA plugs - the camera cables should be terminated with male RCA cables
to suit.
1
2
1 Camera input 1 - red cable
2 Camera input 2 - green cable
¼ Note: The video images will not be shared with another unit via the network. It is only pos-
sible to view video on the unit connected to the video source.
