StructureScan™ | NSS Operator Manual
StructureScan™
StructureScan™ is an optional hardware module
that uses high frequency to provide a High
resolution image of the seabed
StructureScan™ provides a 150 m (480 ft) wide
coverage in high detail with SideScan, while the
DownScan™ provides picture perfect images
of structure and fi sh directly below your boat,
down to 90 m (300 ft).
The StructureScan™ panel is accessed from the shortcut icon on the Pages panel when the
StructureScan external box and transducer are fi tted.

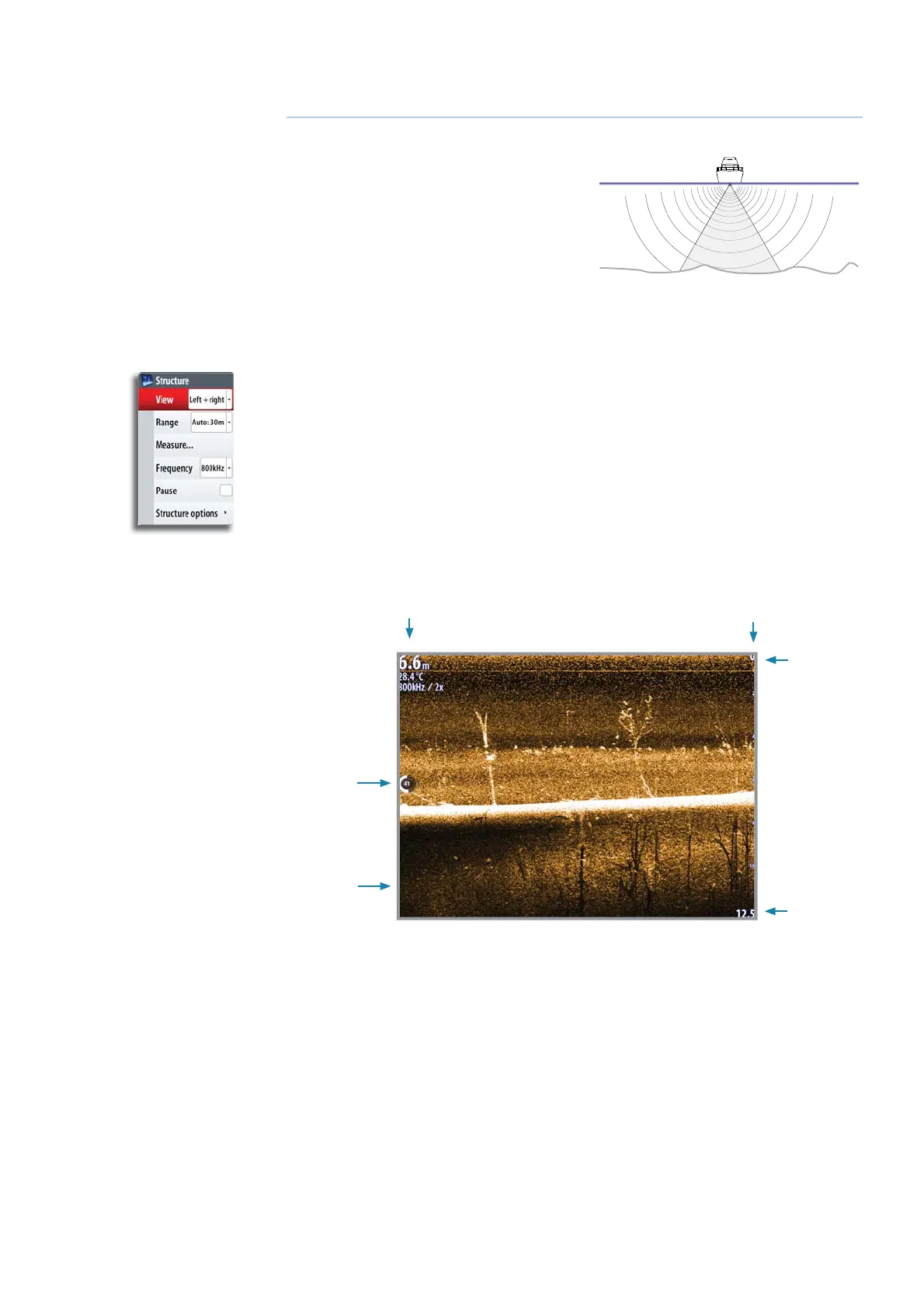

Setting up the StructureScan™ image
The view
The StructureScan panel can be set up as a traditional downscan image, or showing left/right
side scanning.
The DownScan image can also be added as an overlay to the traditional Echosounder image.
For more information, refer to “StructureScan™ overlay” on page 56.
DownScan
Upper
range
Lower
range
Depth
Temperature
Frequency / zoom
Color
indicator
Sea bed
Range
scale
9
