| 77
The alarm system |
NSS Oper
ator Manual
The alarms
dialog

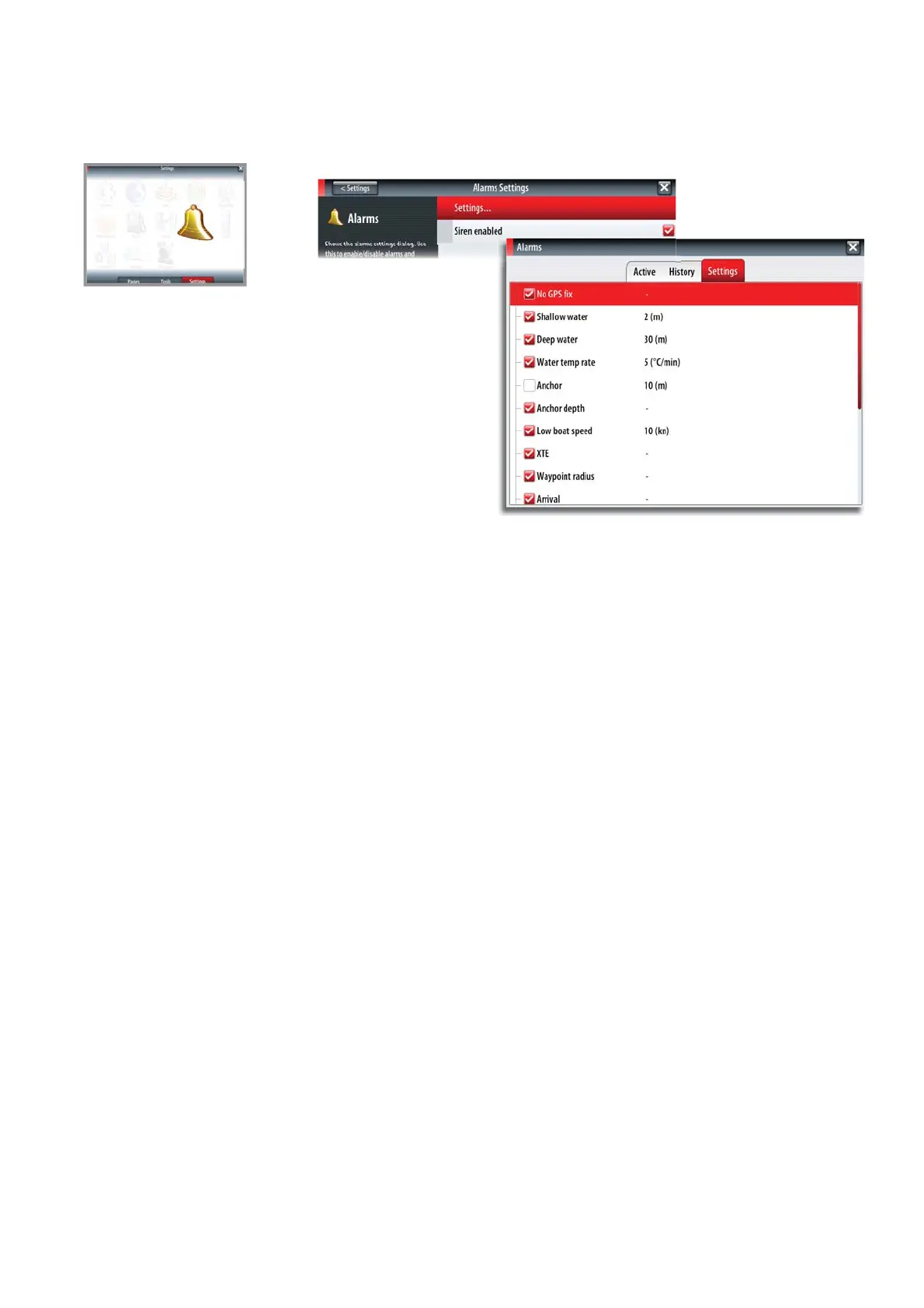

The alarms can be setup in the Alarms dialog.
This dialog also includes information about
active alarms and alarm
histor
y.
The alarms are described in the chapter describing the corresponding featur
e. E.g. all
autopilot alarms are described in the
Autopilot
section.
78
80
