Mounting the NSS display | NSS Installation Manual

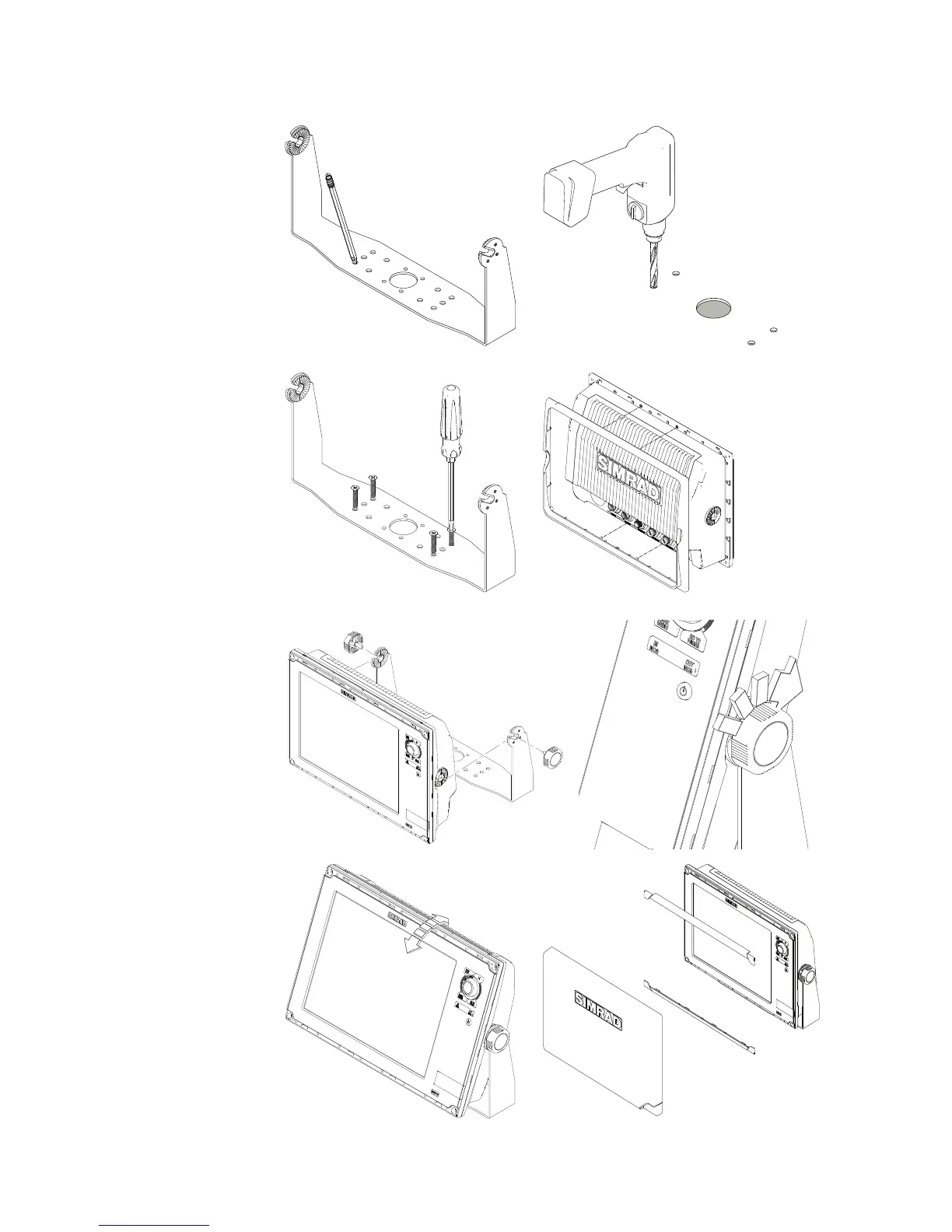

Bracket mount
Drill cable and fastener pilot holes.
Using the bracket as a template,
mark places to drill the central cable
hole and four pilot holes for the
bracket fasteners.
screw bracket down with fasteners.
Fit rear bezel to NSS using supplied
machine screws.
Align the NSS ratchet teeth with
those of the bracket and partially
screw in the bracket knobs one at
a time.
Further tighten both knobs to
ensure the unit is held securely and
can’t tilt forward under it’s own
weight.
Stand back and check if the viewing
angle is correct. Loosen the knobs
slightly if adjustment is required,
then re-tighten.
To nish o the installation, clip the
upper and lower bezels in place.
