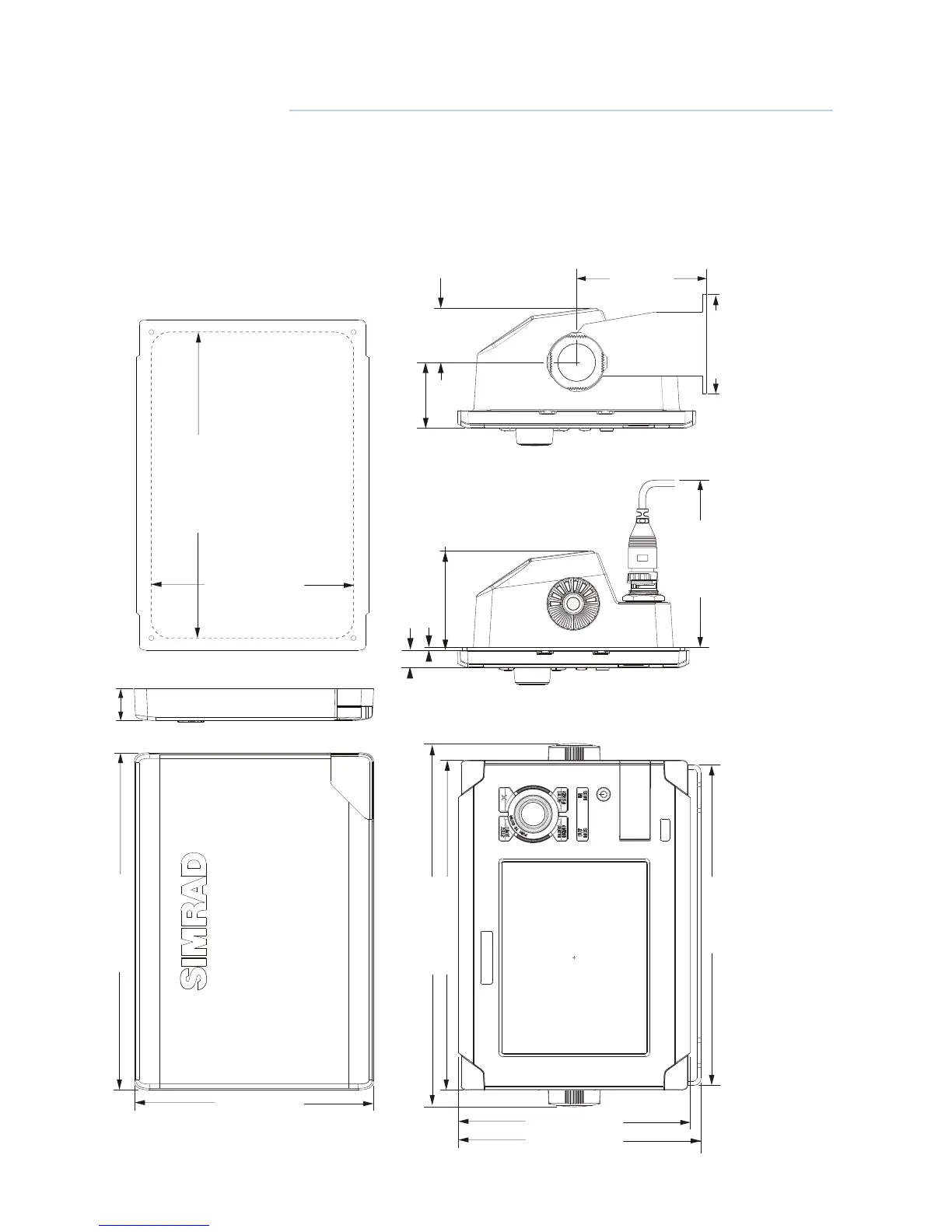

Dimensional Drawings | NSS Installation Manual
Dimensional Drawings
NSS7
16
229.5 mm (9.03") 260 mm (10.23")
161 mm (6.33")
168.5 mm (6.63")
166 mm (6.53")
140.5 mm (5.53")
234.5 mm (9.23")
212.5 mm (8.37")
SUN COVER
26.5 mm (1.04")
69.5 mm (2.73")
12 mm (0.47")
2.3 mm (0.09")
120 mm (4.72")
67 mm (2.63")
123 mm (8.77")
37 mm (1.45")
88 mm (3.46")
44.5 mm (1.75")
