Autopilot | NSS Installation Manual

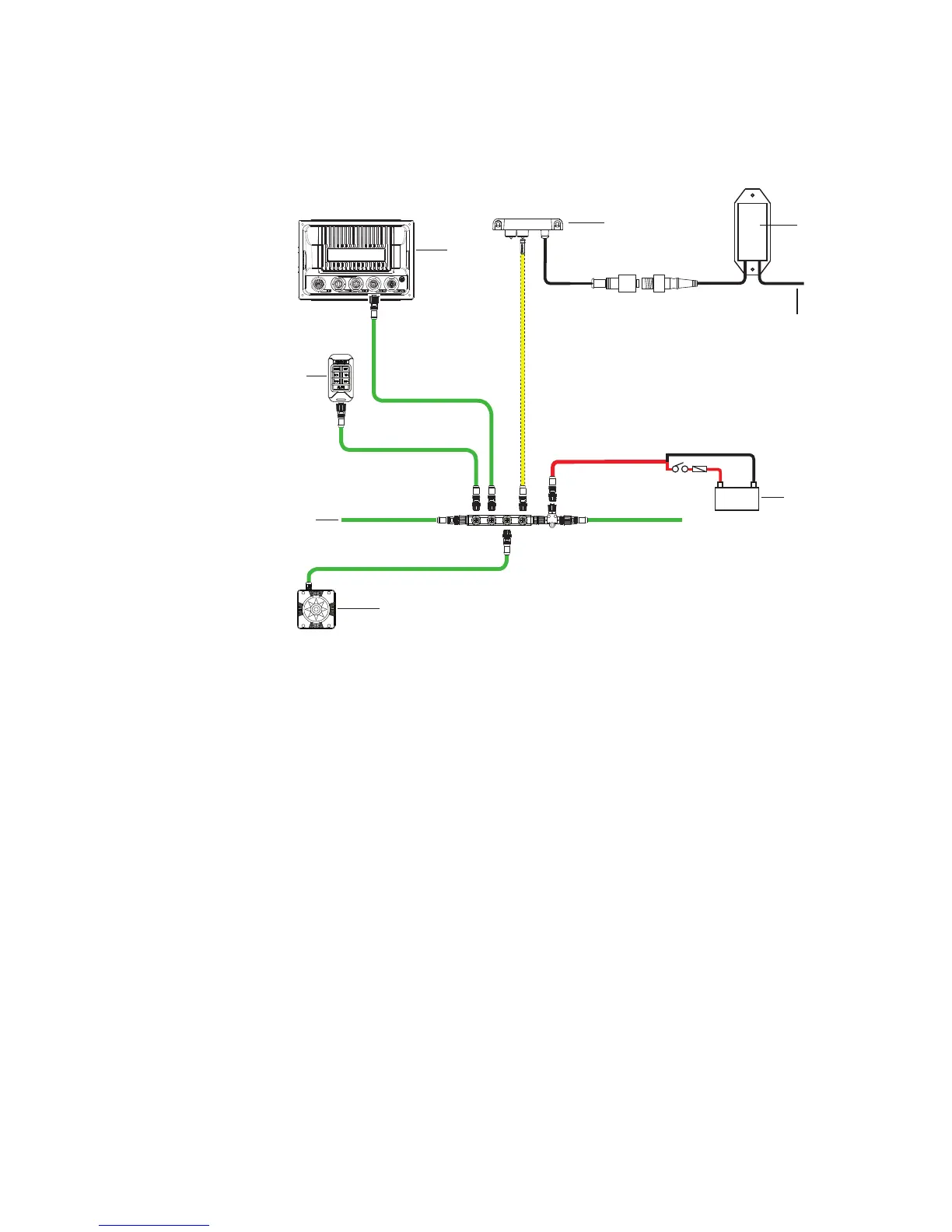

Using the SG05 EVC gateway
The SG05 is connected to the SimNet network in place of Autopilot computer. It connects to
a Volvo Gateway for communication with Volvo’s EVC system.
¼ Note: rudder angle data is sourced from the EVC system and a seperate rudder angle
indicator is not required.
5 Amp Fuse
12 V DC
-
+
1
6
7
5
8
2
3
4
1 NSS Display
2 Simrad SGO5 SimNet - Volvo Gateway
3 Volvo Gateway (p/n: 000-1-258-001)
4 12V DC Supply
5 SimNet 7 way connector
6 RC42 Rate Compass
