Sinfonia Technology C10-3VFEF User Manual

5
HTE302172 31/46
6
4 3 2 1
COM ERR N2 N1
E-Con1
○ Dry contacts or an open collector
2.2KΩ
N
1
1 1
1 2
2 2
2
DC24
Inner Circuit
2.2KΩ
N1
N2
COM
N1
N2
COM
+12V
○ External voltage
2.2KΩ
N
1
1 1
1 2
2 2
2
DC24
Inner Circuit
2.2KΩ
N1
N2
COM
DC12～24V
N1
N2
COM
DC12～24V
Output of error signal
Select control by 4-20mA
current or Two-rate-of-feed
with a slide switch on
the print circuit board.
Output transistor closes by error
such as “E-OL” and so on.
Maximum output voltage: DC24 V
Maximum output current: 80mA

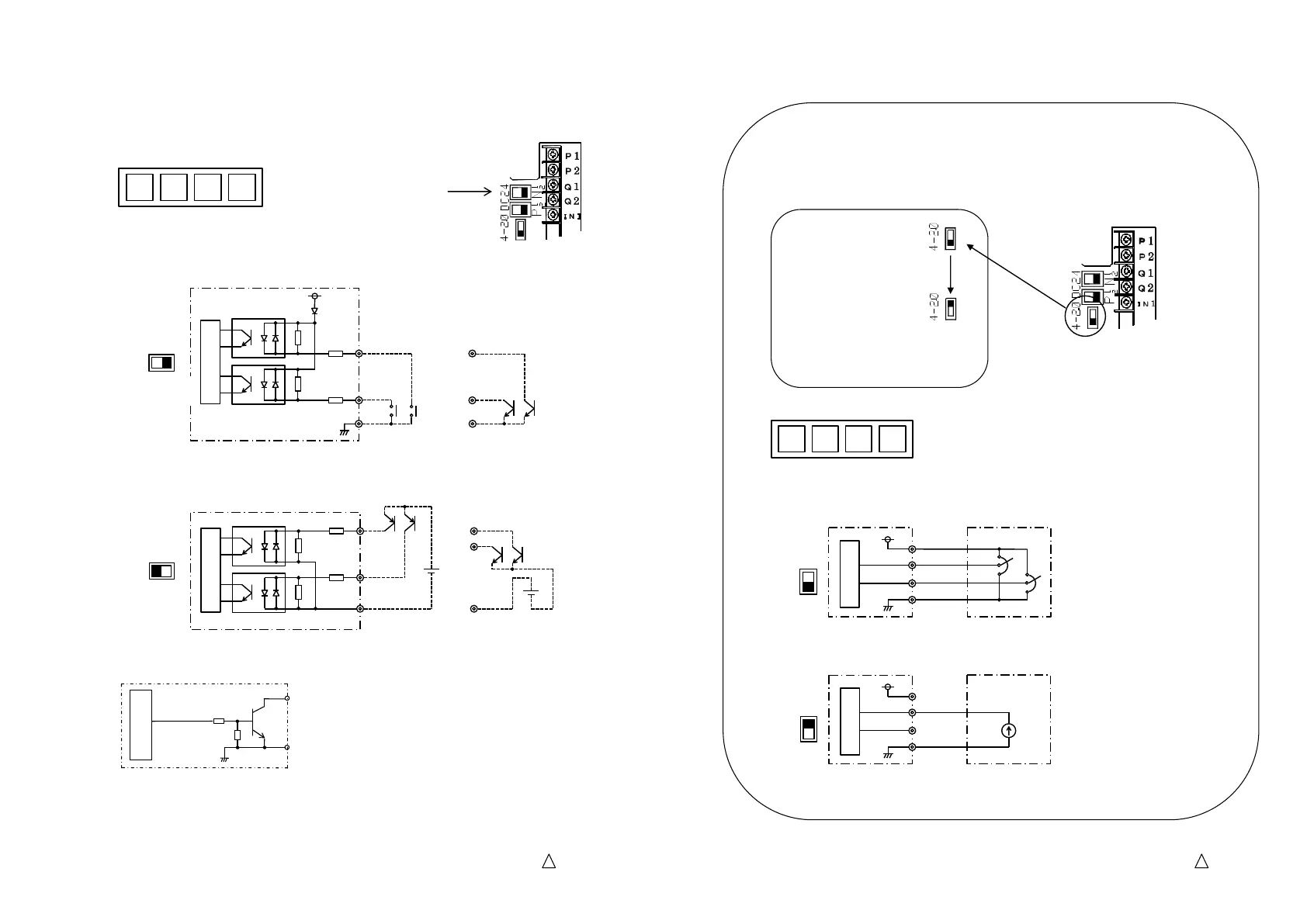

Connection Diagram
Connection DiagramConnection Diagram
Connection Diagram
Factory Default
ERR
COM
Inner Circuit
5
HTE302172 32/46
6
4 3
2
1
COM
AN6 AN5
+5V
E-Con2
○ Two-rate-of-feed
Inner Circuit
+5V
4-20
[Two-rate-of-feed]
Rheostats VR1 and VR2 are
provided by customer.
AN5
AN6
COM
VR1
VR2
1
2
3
1
2
3
Resistance of VR1 and
VR2 are 10 KΩ.
○ 4-20mA Current control
Inner Circuit
+5V
[4-20mA Current control]
The current device is
provided by customer.
AN5
AN6
COM
Caution!: Fault connection of “E-Con1” and “E-Con2” should damage
C10-controller. There is not indication of “E-Con1” or
“E-Con2” on the printed circuit board.
4-20
Factory Default
（Two-rate-of-feed）
4-20mA Current control
Slide the lever upward for the
current control
Factory Default
4
44
4-
--
-20mA Current control / Two
20mA Current control / Two20mA Current control / Two
20mA Current control / Two-
--
-rate
raterate
rate-
--
-of
ofof
of-
--
-feed
feedfeed
feed
Please select control by 4-20mA current or two external rheostats with a slide
on the print circuit board.
The default is set for control by two external rheostats.
